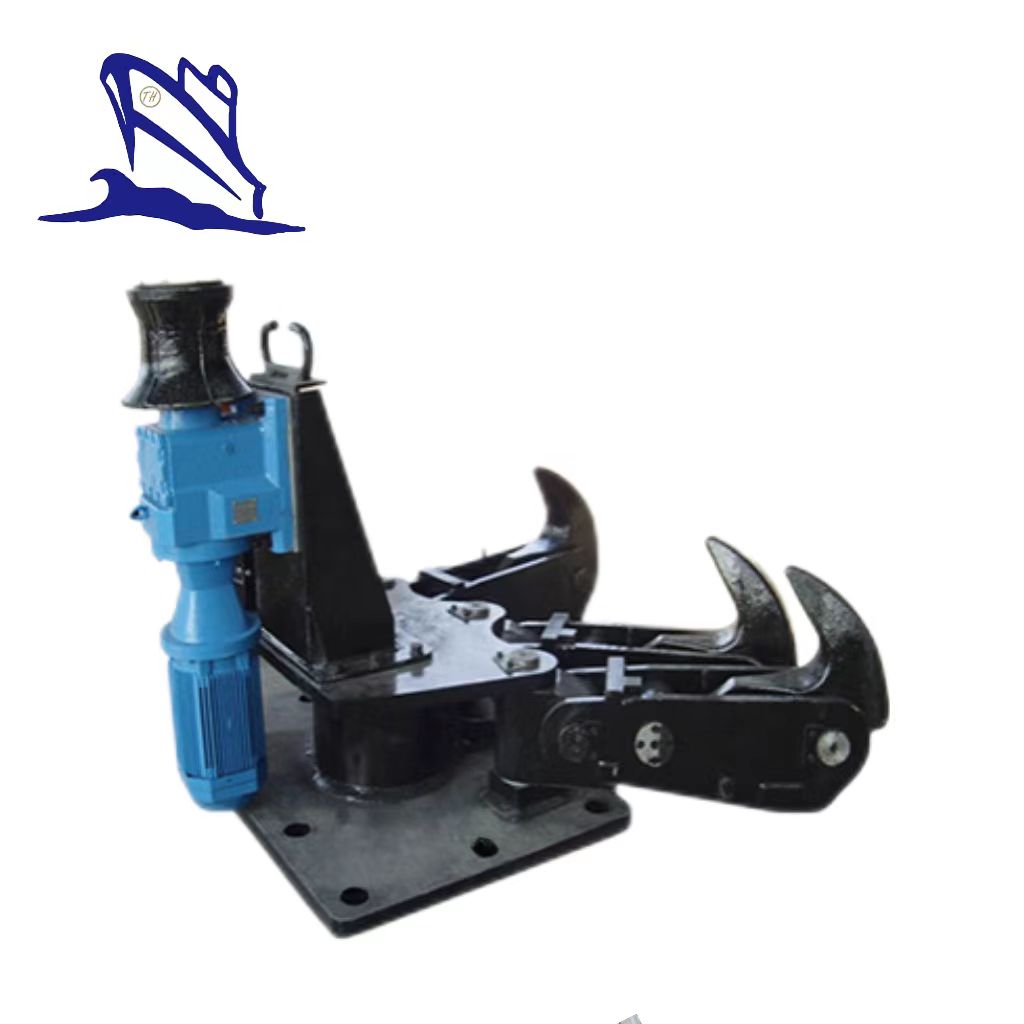

MARINE TOWING HOOK

Application:

A triple quick release mooring hook is a specialized device used in marine applications for securely mooring ships or vessels to a fixed structure, such as a dock or a buoy. It is designed to provide a quick and efficient method of attaching and detaching mooring lines.
The triple quick release mooring hook consists of three individual hooks arranged in a triangular configuration, typically made of high-strength steel. Each hook is capable of independently engaging or disengaging from a corresponding mooring line. This design allows for enhanced flexibility and redundancy in the mooring system.
The operation of a triple quick release mooring hook is relatively simple. When a ship needs to be moored, the mooring lines are attached to the hooks. The hooks are then manually or remotely engaged with the mooring lines, securing the vessel in place. In case of an emergency or the need for a swift release, all three hooks can be simultaneously disengaged, allowing the mooring lines to be quickly released, and the vessel to move away from the mooring point.
The quick release mechanism of the hooks typically involves a combination of mechanical and hydraulic systems. These systems are designed to withstand high loads and provide reliable operation under various weather and sea conditions.
The benefits of using a triple quick release mooring hook include improved safety, increased efficiency, and reduced manpower requirements during mooring operations. In emergency situations, such as severe weather conditions or sudden vessel movements, the ability to swiftly release the mooring lines can help prevent accidents and minimize damage to both the vessel and the mooring infrastructure.
Overall, the triple quick release mooring hook is an advanced and robust solution for mooring vessels, offering enhanced reliability and flexibility compared to traditional mooring methods. Its design and functionality make it a valuable tool in ensuring the safety and efficiency of marine operations.

Main Technical Specification:

1. Number of Hooks: 3 Hooks;

2. Safe Working Load: 400kN to 1500kN;

3. Weight exclude Capstan: 707kg to 3586kg;

4. Swing angle of hook body in horizontal: -90° to +45°, -45° to +45°, ;-45° to +90°;

6. Swing angle of hook body in vertical: -5° to +45°.

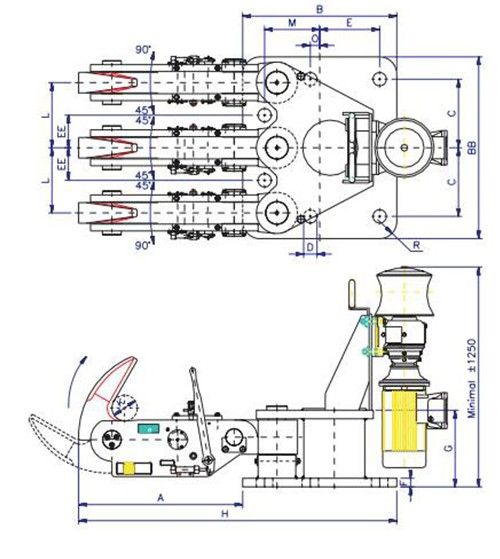

Parameters of Triple Quick Release Mooring Hook:

Features of Triple Quick Release Mooring Hook:

1. Designed to withstand harsh marine environments;

2. Manual release, pneumatic or hydraulic release options;

3. Easy and safe release with either a slack or loaded mooring ropes;

4. Wide range of movement (horizontal and vertical);

5. Easy to install and maintain;

6. Protect the safety of vessel and operator;

7. Mooring load monitoring system for option;

8. Locking device to prevent accidental or unauthorized operation;

9. Integral capstan for option;

10. Certificate: ABS, CCS, BV, DNV·LR, NK, etc..
