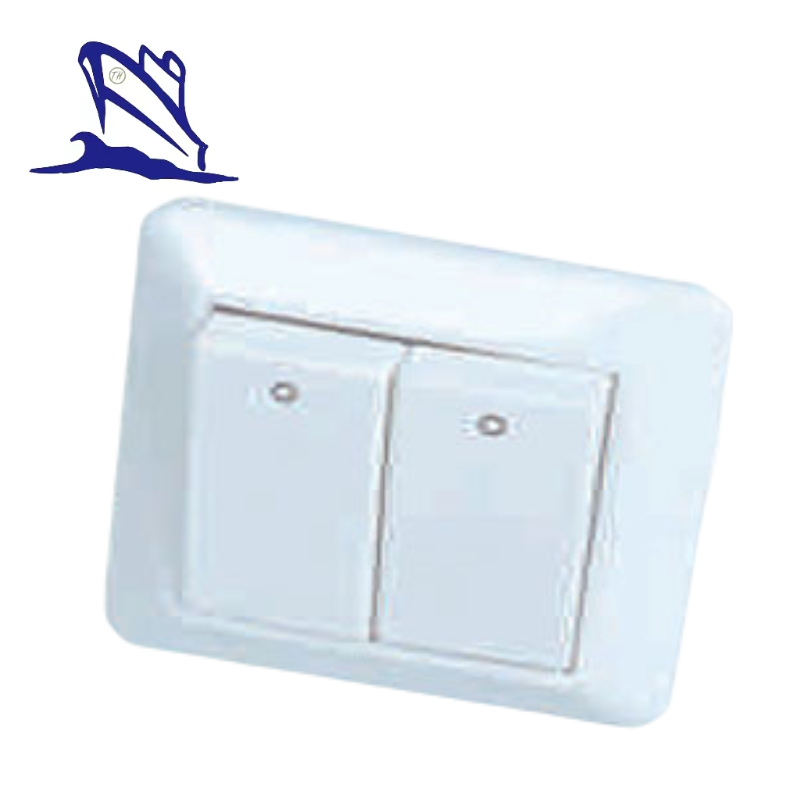

Marine Cabin Switch and Plug
Marine Cabin Switch and Plug
The Voltage of Marine Cabin Switch and Plug is 250V.The current is 16A.
Technical Parameter:
Protection Class:IP20
Conform to Standard:GB2099,IEC844-1
Specifications:
Type | Voltage | Current |
HE-2N-1 | 250V | 16A |

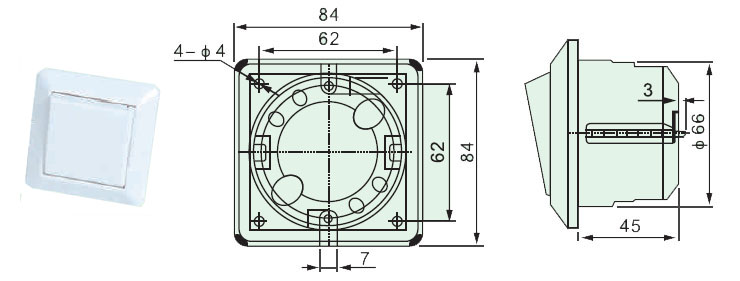

HE-2N-1 Drawing of Marine Cabin Switch
Type | Voltage | Current |
HE-2N-2 | 250V | 16A |

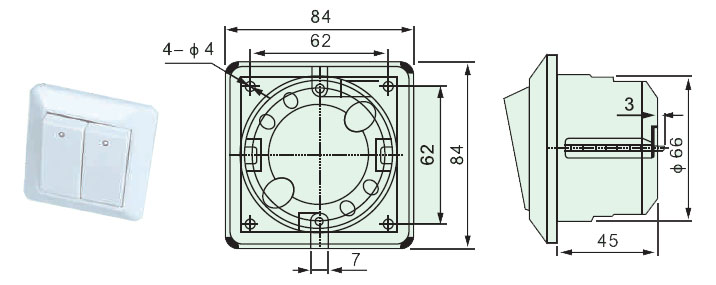

HE-2N-2 Drawing of Marine Cabin Switch
Type | Voltage | Current |
CCT2-2 | 250V | 16A |

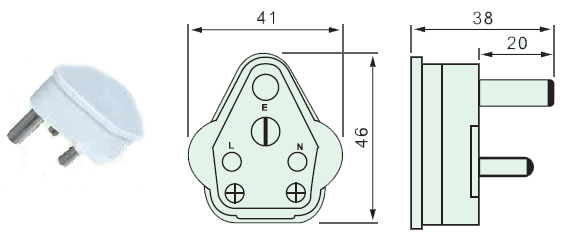

CCT2-2 Drawing of Marine Cabin Plug
Type | Voltage | Current |
CTE2-2Y-1 | 250V | 16A |

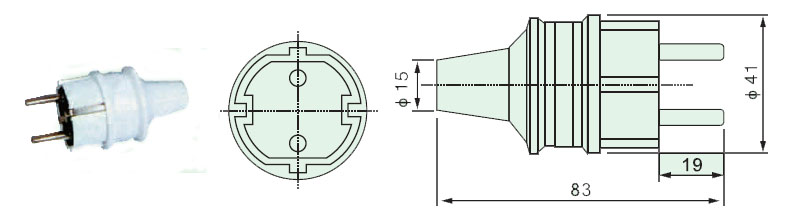

CTE2-2Y-1 Drawing of Marine Cabin Plug
Type | Voltage | Current |
CTE2-2B-1 | 250V | 10A |

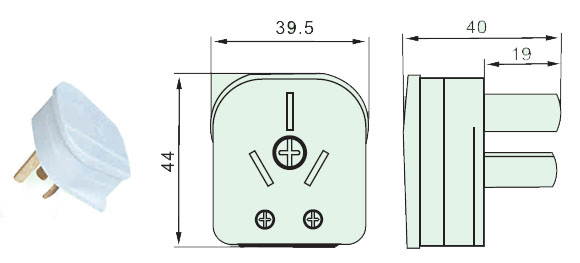

CTE2-2B-1 Drawing of Marine Cabin Plug
N-Dark type M-Bright type B-Flat form Y-Round form

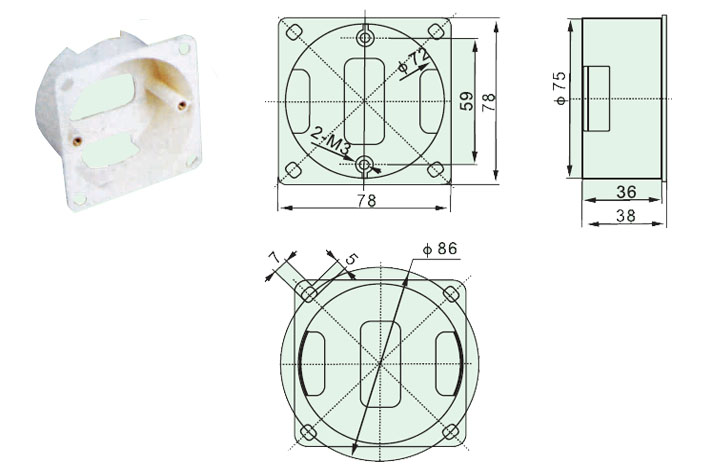

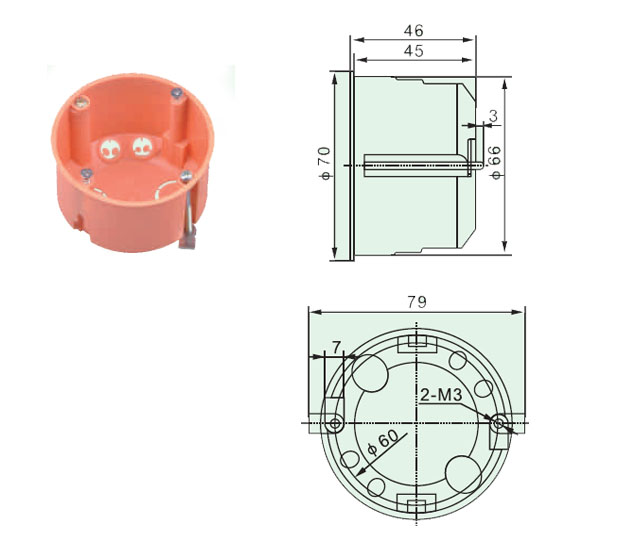

Hidden Box:
