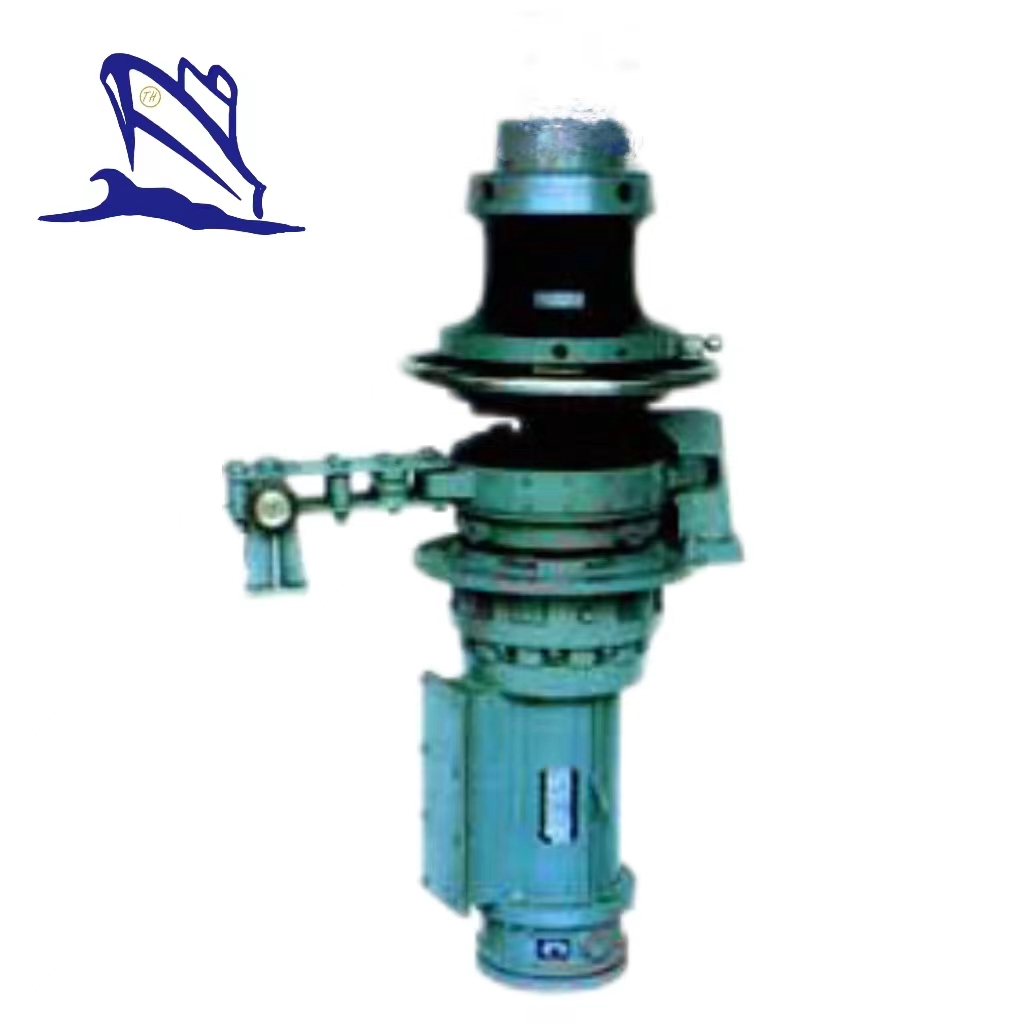

Electric Anchor Mooring Capstan
This series anchor capstan complies with the rules for the construction and classification of sea-going ships(CCS) and the Yangize River's ships. And it is made by Hi-Sea Marine in China, suitable for using in ships on inland river or coastal water. This series anchor capstan has a reature of small in area on the deck.
Main Technical Specification:
Chain Dia.(mm) | Working Load(kN) | Working Speed(m/mim) | Warping Load(kN) | Warping Speed(m/min) | Wire Dia.(mm) | Motor Power(kW) |
11/14 | 5.9/7.4 | ≥12 | 5 | ≥10 | Ф11 | 3/1.2 |
16/17.5 | 10.9/13.0 | ≥12 | 8 | ≥10 | Ф13 | 4.3/1.7 |
19/22 | 15.3/20.6 | ≥12 | 10 | ≥10 | Ф13 | 6/2.5 |
24/26 | 24.5/28.7 | ≥9 | 20 | ≥8.5 | Ф15 | 7.5/7.5/5 |
28/30 | 33.3/38.3 | ≥9 | 30 | ≥8.5 | Ф17.5 | 16/16/11 |
32/34/36 | 43.5/49.1/55.1 | ≥9 | 30 | ≥8.5 | Ф17.5 | 16/16/11 |
38/40/42 | 61.4/68.0/75.0 | ≥9 | 50 | ≥8.5 | Ф20.5 | 22/22/16 |
44/46/48 | 82.3/89.9/97.9 | ≥9 | 50 | ≥8 | Ф26 | 30/30/22 |
50/52/54 | 106.3/114.9/123.9 | ≥9 | 60 | ≥8 | Ф26 | 30/30/22 |
56/58/60 | 133.3/143.0/153.0 | ≥9 | 60 | ≥8 | Ф26 | 45/45/30 |
