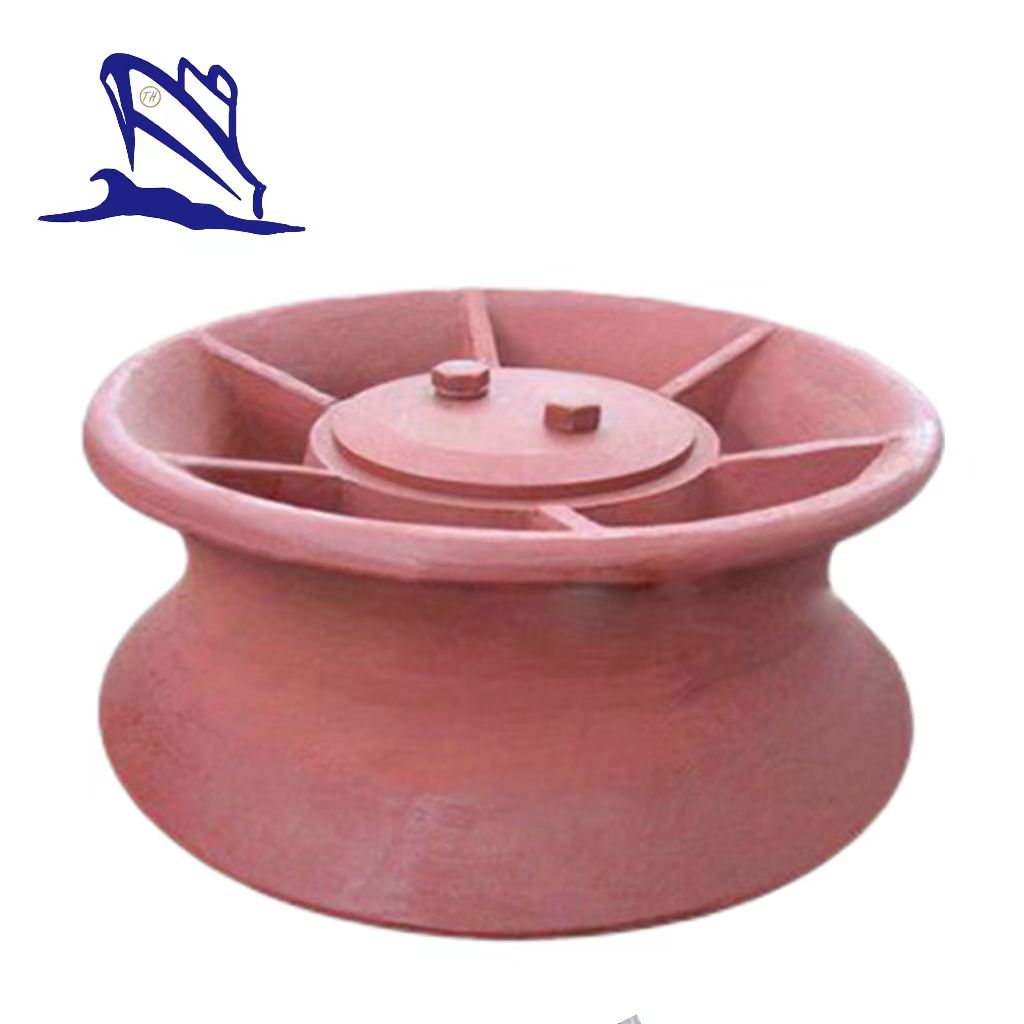

DIN 81906 Warping Roller
Description:
DIN 81906 warping roller strictly complies with German production standard DIN 81906-1999. It can be used together with conical pedestal(DIN 81907).

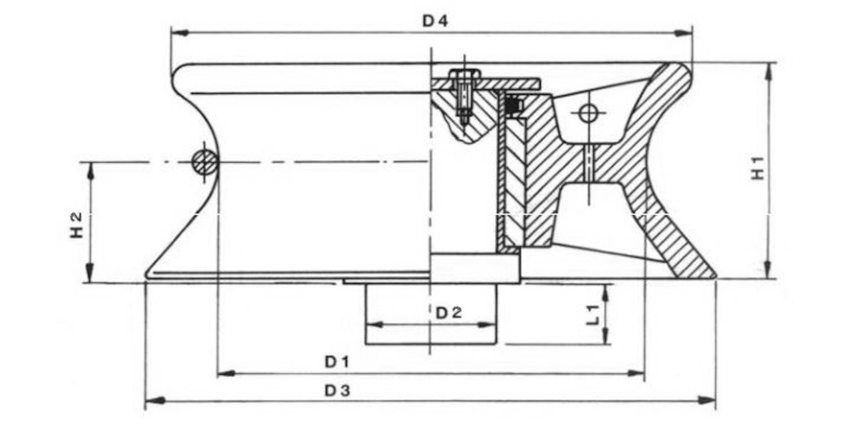

Parameters of DIN 81906 Warping Roller:
| Type | Maximum Trailed Load (KN) | d1 | d3 | d4 | d14 | h1 | l1 | r1 | z1 | Weight (kg) |
| 1 | 10 | 160 | 210 | 195 | 60 | 80 | 50 | 25 | 1.5 | 12 |
| 2 | 20 | 200 | 265 | 245 | 70 | 102 | 32 | 2.5 | 18 | |
| 3 | 32 | 250 | 330 | 300 | 85 | 126 | 42 | 33 | ||
| 5 | 50 | 320 | 420 | 390 | 106 | 160 | 55 | 68 | ||
| 8 | 80 | 400 | 530 | 490 | 125 | 208 | 60 | 73 | 136 | |
| 12 | 125 | 450 | 610 | 560 | 160 | 256 | 85 | 95 | 225 | |
| 20 | 200 | 500 | 640 | 620 | 190 | 278 | 100 | 111 | 336 | |
| 32 | 320 | 560 | 780 | 740 | 230 | 348 | 150 | 125 | 4.5 | 625 |
Model Type: DIN 81906 Warping Roller
Material: Casting Steel;
Standard: DIN 81906;
Certificates: CCS, ABS, BV, LR, NK, RINA, etc..
