MARINE FAIRLEAD

CB 3062-79 Nine Rollers Fairlead Type E

Description:

The minimum and maximum number of rollers are 3 and 9. The fairlead is installed on the marine deck. Besides, it can perfectly guide the steel ropes or nylon ropes protecting them from abrasion. We can also provide you the customized type for fairlead. For more information, please feel free to contact us.

Features:

Model Type: Nine Rollers Fairlead;

Material: Cast Steel or Customized;

Roller Qty.: 9;

Steel Wire Dia.: 19.5mm-68mm;

Nylon Rope Dia.: 36mm-100mm;

Standard: CB 3062-79.

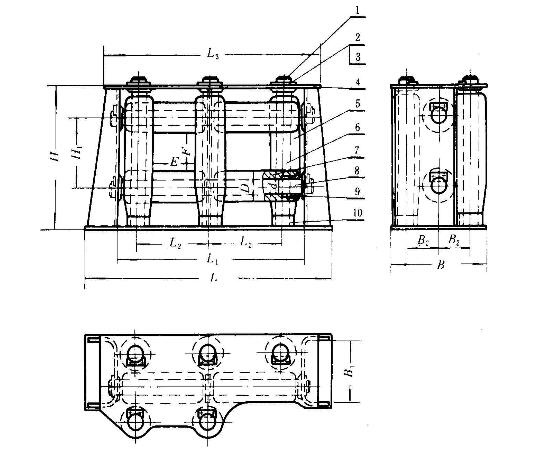

Parameters of CB 3062-79 Nine Rollers Fairlead Type E:

Steel Wire Dia.	Nylon Wire Dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight (kg)
19.5	36	200	150	100	40-0.5	944	716	300	844	324	194	108	508	250	302
22.5	40	200	150	120	50-0.5	1048	776	320	928	384	232	128	552	270	464
26	45	200	180	130	55-0.5	1106	810	330	976	415	250	138	606	310	596
32	70	220	180	150	65-0.5	1250	910	370	1100	475	288	158	670	330	883
34.5	80	240	200	160	70-0.5	1340	980	400	1180	507	308	168	710	360	1048
37.5	85	240	200	180	80-0.5	1450	1040	420	1270	571	345	190	7780	380	1229
43	95	260	210	200	90-0.5	1596	1146	460	1396	632	385	210	820	410	1911
52	100	260	220	230	100-0.5	1746	1236	490	1516	723	445	240	910	450	2675
60.5	-	300	240	260	120-0.5	1990	1410	560	1730	815	500	270	1000	500	3887
68	-	320	250	320	150-0.5	2330	1630	640	2010	997	620	330	1130	570	6432
