MARINE FAIRLEAD

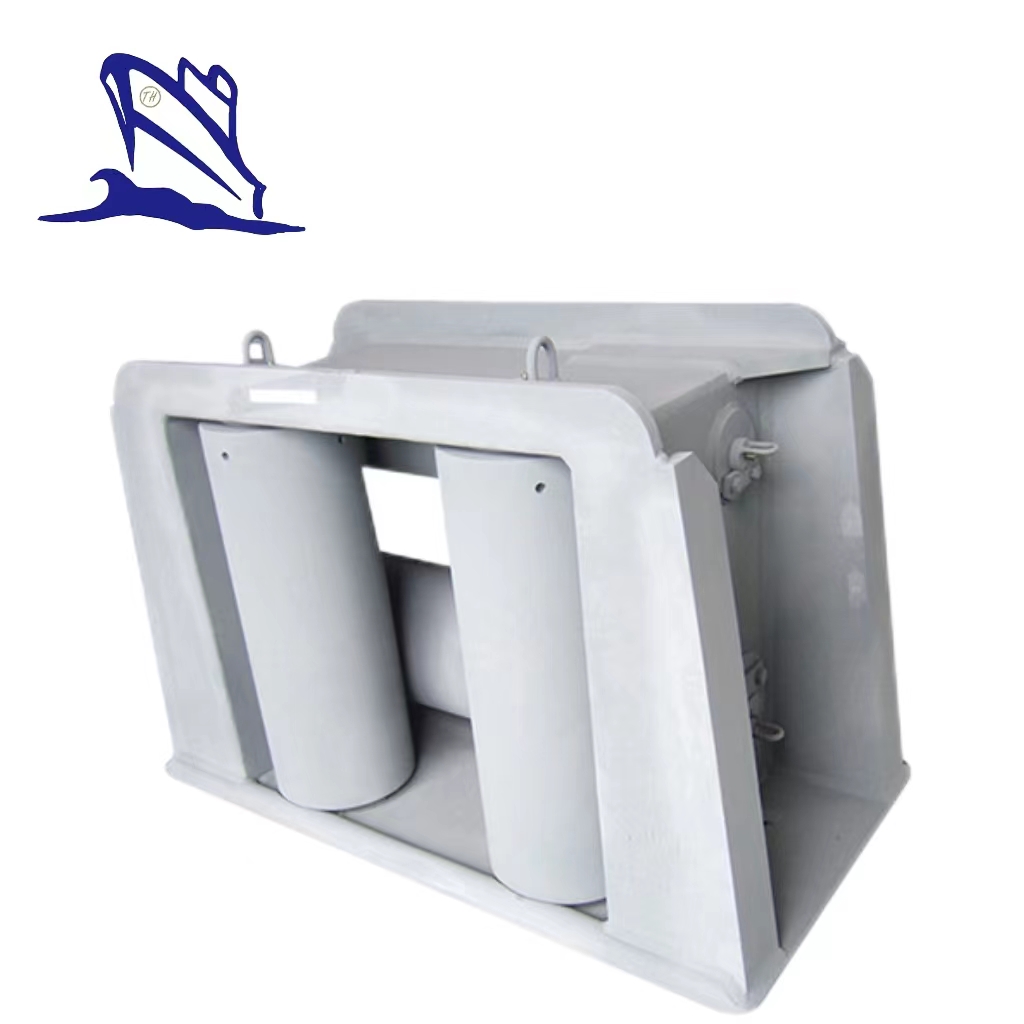

CB 3139-2000 St.Lawrence Fairlead

Description:

St.Lawrence Fairlead is strictly produced according to the standard CB/T 3139-2000 and it can bear steel wire ropes and synthetic fiber ropes. We can provide you other standard of fairleads with quality certificates. We can also provide you products according to your specific requirements. For more information, please contact us.

Features:

Model Type: St.Lawrence Fairlead;

Material: Cast Steel and Steel Plate;

Nominal Dia.: 140mm-200mm;

Standard: CB/T 3139-2000.

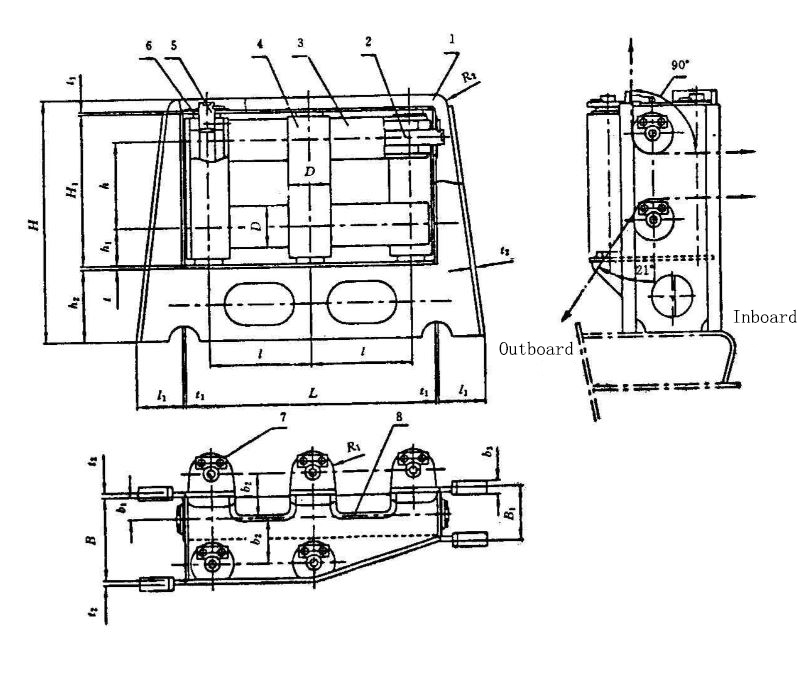

Parameters of CB/T 3139-2000 St.Lawrence Fairlead:

Form 1-1:

Nominal dia. of roller (mm)	Wire dia.		D	L	l	l1	H	H1	h	h1	h2
Nominal dia. of roller (mm)	Steed wire rope (6x37-155)	Synthetic fiber rope	D	L	l	l1	H	H1	h	h1	h2
140	18.5	40	140	826	335	140	810	508	290	125	240
160	22.5	50	168	920	368	155	937	578	318	150	290
190	28	65	194	1002	394	185	1040	624	344	160	340
200	33.5	80	219	1077	419	200	1119	669	369	170	360

Form 1-2:

Nominal dia. of roller (mm)	B	B1	b1	b2	b3	R1	R2	t	t1	t2	Weight (kg)
140	275	145	75	150	45	90	40	12	10	16	480
160	340	200	100	178	65	110	45	14		18	750
190	395	230	120	205	80	120	50	16		20	1000
200	445	255	130	228	90	130	60	18	12	22	1400
