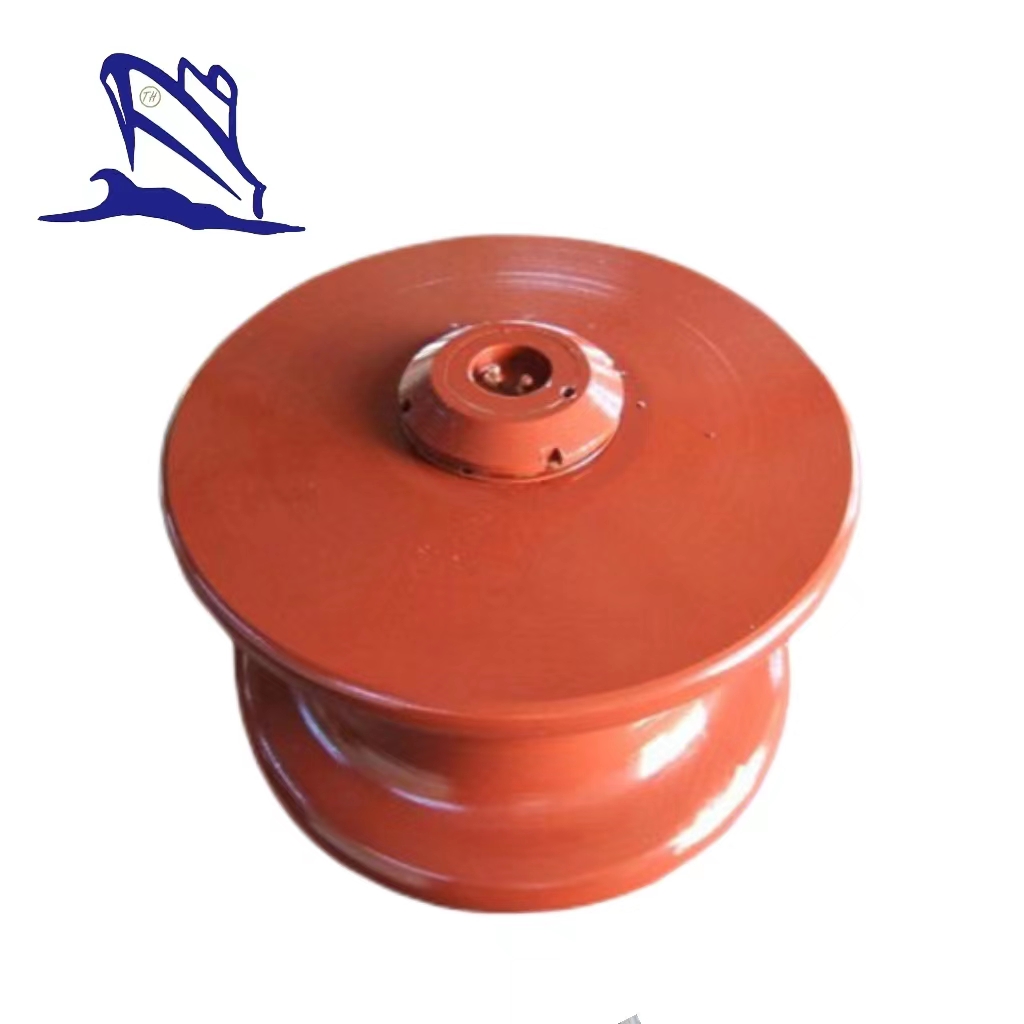

NS2585 Fairlead Roller
Description:
NS2585 fairlead roller is one kind of marine roller for fairlead. It is used to lead the direction of mooring ropes for marine ships. NS2585 fairlead roller has high breaking load. Compact structure, smooth surface, standard production and stable performance are the features of NS2585 fairlead roller. We can provide both standard fairlead roller and the customized fairlead roller for customer’s special requirement. If you’re interested in our fairlead roller, please contact us.

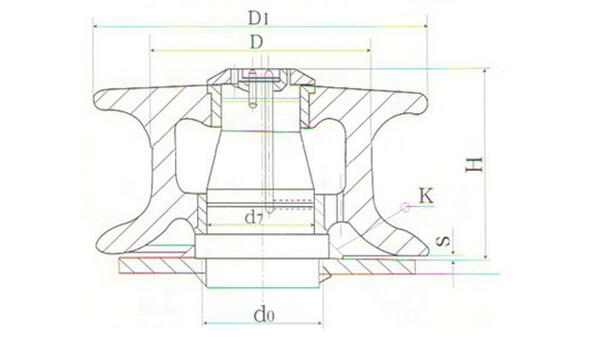

Parameters of NS2585 Fairlead Roller:
| Dia. of Roller | Max. Diameter of Applicable Rope | Size | Weight (kg) | |||||||||
Synthetic Fiber Rope | Hemp Rope | Steel(GB1102) Rope Stress Length 1550N/mm² | D1 | d0 | d7 | H | s | t | k | |||
| 6×24 | 6×37 | |||||||||||
| 150 | 32 | 45 | 17 | 15 | 240 | 90 | 79 | 154 | 5 | 12 | 9 | 24.8 |
| 200 | 40 | 55 | 22.5 | 19.5 | 310 | 115 | 99 | 186 | 5 | 14 | 10 | 49.3 |
| 250 | 45 | 65 | 24 | 24 | 380 | 135 | 119 | 230 | 6 | 14 | 10 | 92 |
| 300 | 50 | 70 | 30 | 28 | 440 | 155 | 129 | 255 | 7 | 16 | 12 | 127 |
| 350 | 55 | 75 | 37.5 | 34.5 | 500 | 175 | 149 | 271 | 7 | 18 | 13 | 168 |
| 400 | 65 | 85 | 41 | 39 | 560 | 185 | 159 | 307 | 7 | 20 | 14 | 252.5 |
| 450 | 80 | - | 44.5 | 43 | 630 | 210 | 178 | 316 | 7 | 20 | 14 | 310 |
Model Type: NS2585 Fairlead Roller;
Material: Cast steel;
Roller Dia.: 150mm-450mm;
Applicable Synthetic Fiber Rope Dia.: 32mm-80mm;
Standards: NS2585.
Certificates: CCS, ABS, BV, LR, NK, RINA, etc..
