CB T436-2000 Single Roller Fairlead Type B
Description:
CB/T 436-2000 single roller fairlead has two types: type A and type B. CB/T 436-2000 is strictly produced in line with the quality standard. It’s flexible to turn. Besides, All our products are IACS certificates approved. So please feel free to contact us if you are interested in any of our products.
Features:
Model Type: Single Roller Fairlead;
Material: Cast Steel and Steel Plate;
Nominal Dia.: 150mm-450mm;
Standard: CB/T 436-2000.

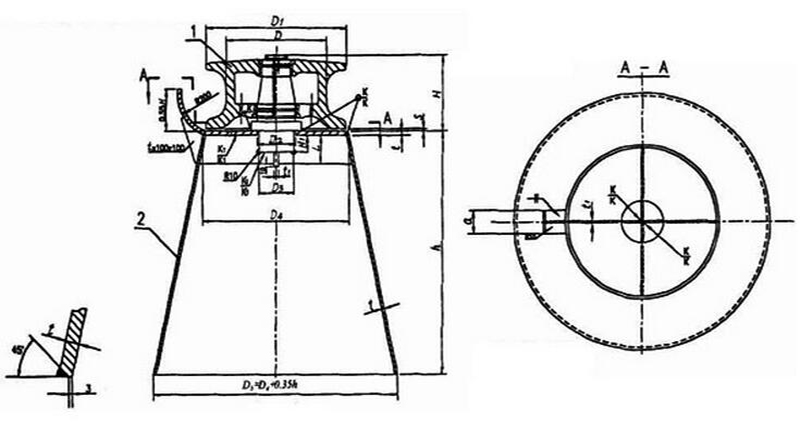

Parameters of CB/T 436-2000 Single Roller Fairlead Type B:
| Roller Dia. | Max.Dia.of Applicable Ropes (for reference) | Dimensions (mm) | Weight (kg) | ||||||||||||||
| Synthetic Fiber Rope | Hemp Rope | Steel Wire(GB/T 8918) Tensile Strength 1570MPa | a | D1 | D2 | D3 | D4 | H | H1 | L | S | t | t1 | Fairlead Roller | Pedestal | ||
| 6x24 | 6x37 | ||||||||||||||||
| 150 | 32 | 45 | 16~18 | 14~16 | 60 | 240 | 90 | 85 | 264 | 154 | 30 | 75 | 5 | 12 | 8 | 24.8 | 129 |
| 200 | 40 | 55 | 22 | 20 | 60 | 310 | 115 | 110 | 338 | 186 | 30 | 85 | 5 | 14 | 10 | 49.3 | 178 |
| 250 | 45 | 65 | 24 | 24 | 80 | 380 | 135 | 130 | 408 | 230 | 35 | 100 | 6 | 14 | 10 | 92 | 207 |
| 300 | 50 | 70 | 30 | 28 | 80 | 440 | 155 | 150 | 472 | 255 | 35 | 100 | 7 | 16 | 12 | 127 | 265 |
| 350 | 55 | 75 | 38 | 34 | 80 | 500 | 175 | 170 | 536 | 271 | 35 | 100 | 7 | 18 | 14 | 168 | 332 |
| 400 | 65 | 85 | 40~42 | 38~40 | 100 | 560 | 185 | 180 | 600 | 307 | 40 | 100 | 7 | 20 | 16 | 252.5 | 401.3 |
| 450 | 80 | / | 44 | 42~44 | 100 | 630 | 210 | 205 | 670 | 316 | 40 | 120 | 7 | 20 | 16 | 310 | 452 |
| Note: The pedetal weight is the weight when the base height is h=1000mm. | |||||||||||||||||
