MARINE FAIRLEAD

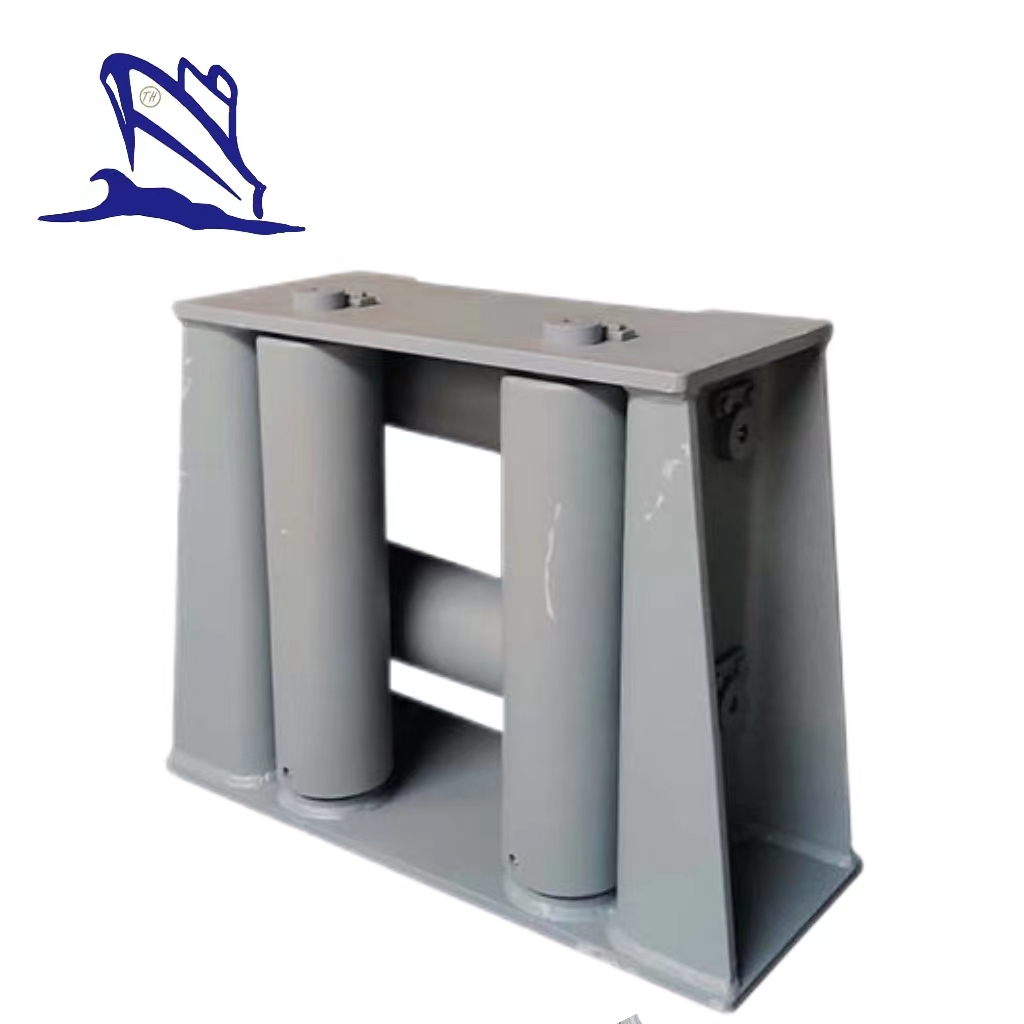

CB 3062-79 Four Rollers Fairlead Type BB

Description:

CB 3062-79 fairlead has 6 types: type A, type BB, type C, type BA, type D, type E. Type BB can also be named closed four rollers fairlead which is produced according to the standard CB 3062-79. Besides, this kind of fairlead can perfectly lead the direction of mooring ropes. CB 3062-79 four rollers fairlead type BB is strictly certified. For more information, please feel free to contact us.

Features:

Model Type: Four Rollers Fairlead;

Material: Cast Steel and Steel Plate;

Roller Qty.: 4;

Steel Wire Dia.: 19.5mm-68mm;

Nylon Rope Dia.: 36mm-100mm;

Standard: CB 3062-79.

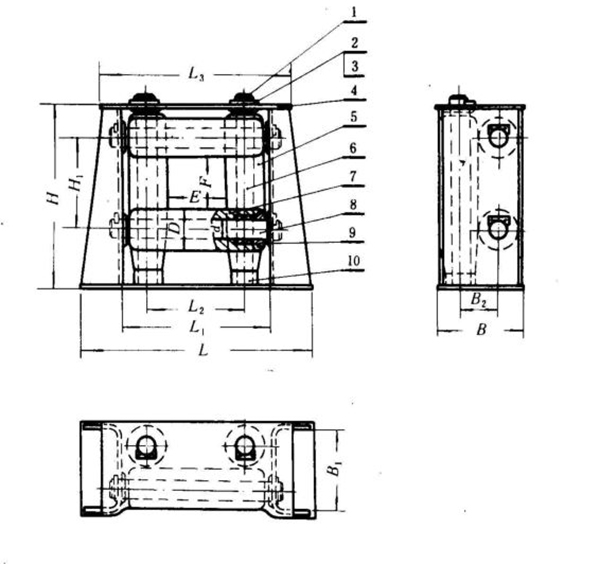

Parameters of CB 3062-79 Four Rollers Fairlead Type BB:

Steel Wire Dia.	Nylon Wire Dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight (kg)
19.5	36	200	150	100	40-0.5	644	416	300	544	238	194	108	508	250	155
22.5	40	200	150	120	50-0.5	728	456	320	608	280	232	128	552	270	239
26	45	200	180	130	55-0.5	776	480	330	646	304	250	138	606	310	306
32	70	220	180	150	65-0.5	880	540	370	730	346	288	158	670	330	450
34.5	80	240	200	160	70-0.5	940	580	400	780	370	308	168	710	360	576
37.5	85	240	200	180	80-0.5	1030	620	420	850	417	345	190	7780	380	756
43	95	260	210	200	90-0.5	1136	686	460	936	459	385	210	820	410	987
52	100	260	220	230	100-0.5	1256	746	490	1026	521	445	240	910	450	1370
60.5	-	300	240	260	120-0.5	1430	850	560	1170	590	500	270	1000	500	2008
68	-	320	250	320	150-0.5	1690	990	640	1370	714	620	330
