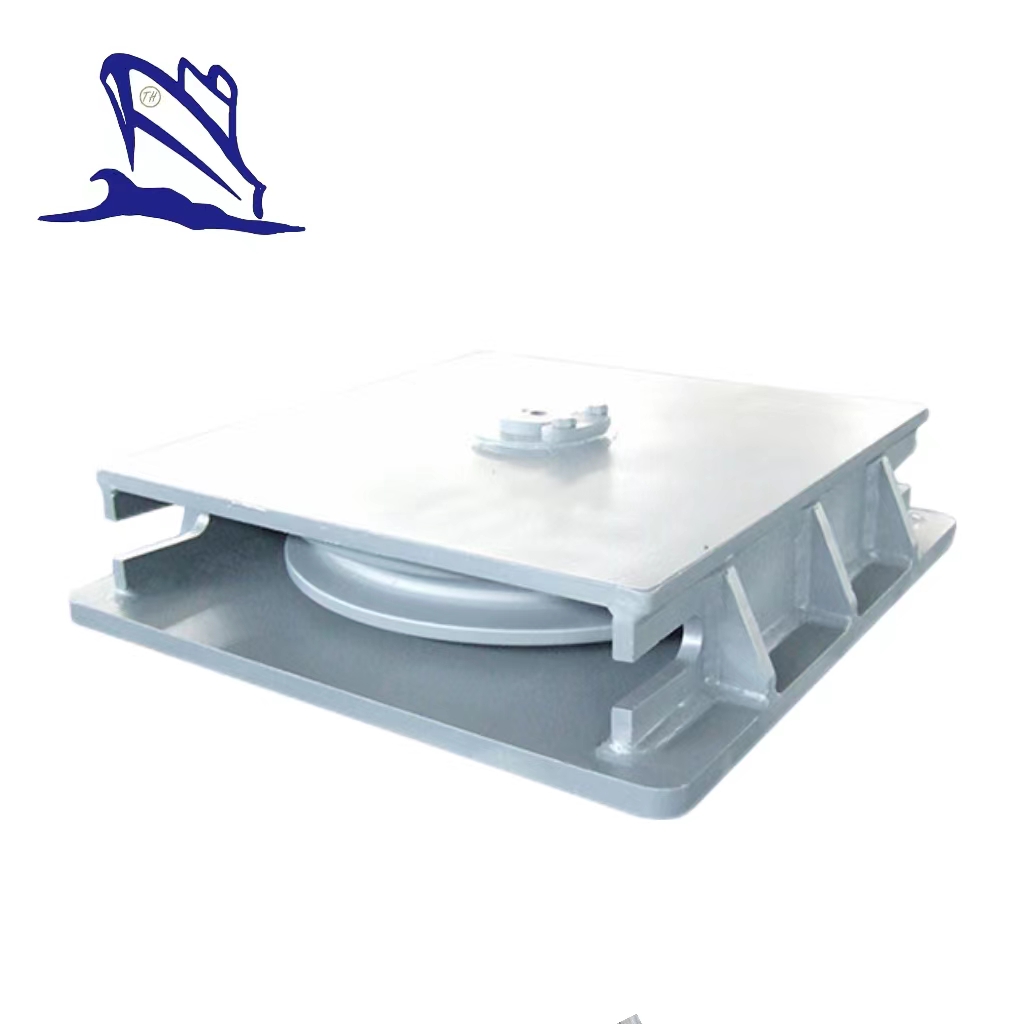

Horizontal Sheave Fairlead
Description:
Deck mounted horizontal sheave is also called horizontal sheave fairlead. This fairlead has different structure from vertical sheave fairlead but same location during operation, and it is also located at the back of swivel fairlead. It can be delivered with or without a foundation as a vessel needs.
Features:
Model Type: Horizontal Sheave Fairlead;
Foundation: Customized;
Material: Cast Steel or Customized;
Size: as your needs.

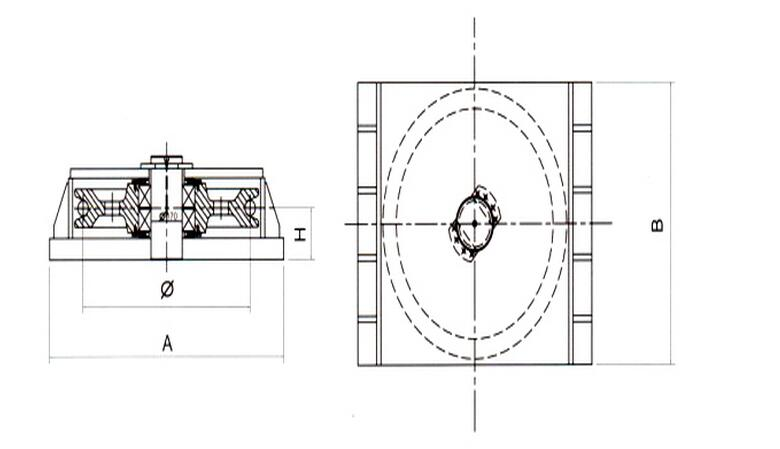

Parameters of Horizontal Sheave Fairlead:
Max Wire Dia. (mm) | A(mm) | B(mm) | H(mm) | Φ(mm) |
| 20 | 650 | 510 | 70 | 360 |
| 25 | 700 | 540 | 70 | 390 |
| 32 | 810 | 650 | 95 | 540 |
| 38 | 960 | 760 | 125 | 640 |
| 44 | 1080 | 850 | 160 | 710 |
| 52 | 1310 | 1060 | 175 | 880 |
| 60 | 1450 | 1130 | 185 | 920 |
| 68 | 1600 | 1250 | 195 | 956 |
| 76 | 1820 | 1350 | 220 |
