MARINE FAIRLEAD

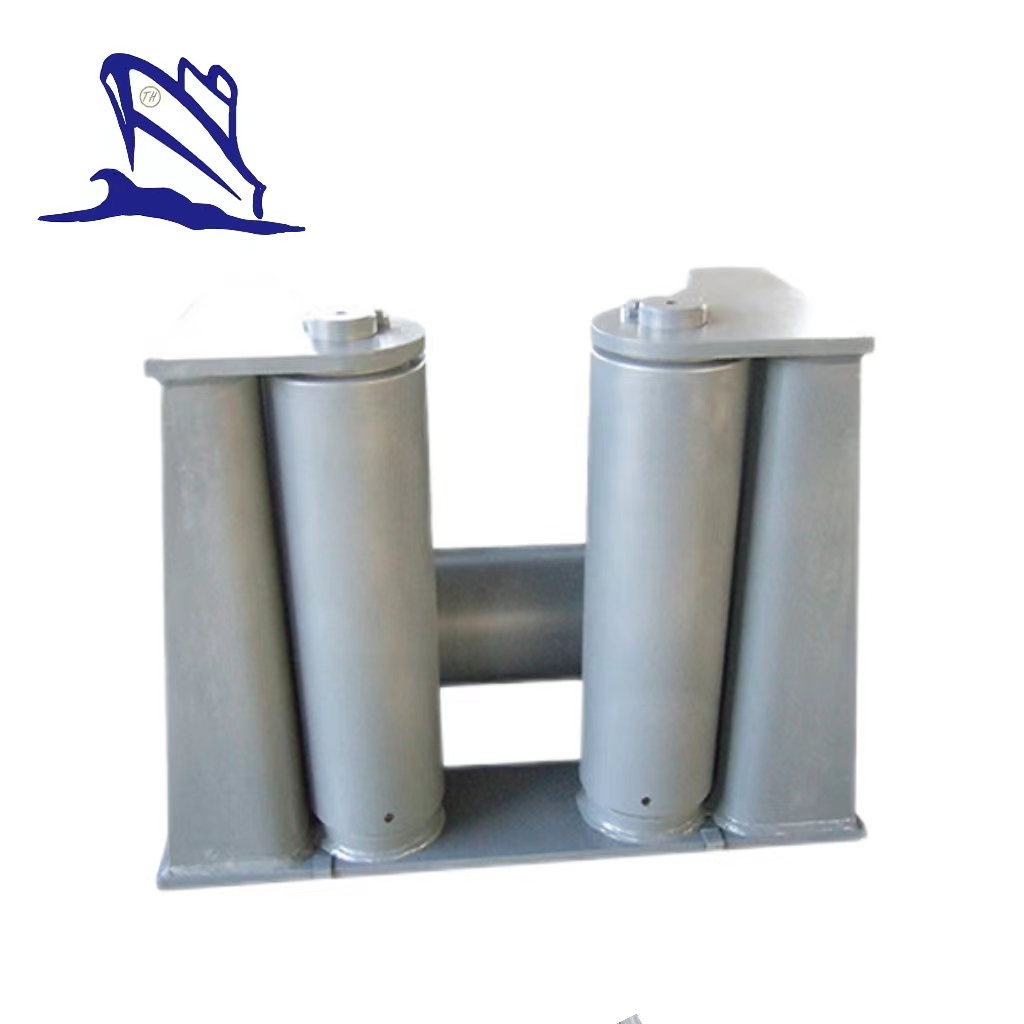

CBT 3062-2011 Three Rollers Fairlead Type A

Description:

CB/T 3062-2011 three rollers fairlead has 3 types: type A, type B and type C. The maximum number of rollers can be reached 5. Three rollers fairleads produced in accordance with the standard CB/T 3062-2011. The surface of the rollers isn’t allowed to have any defects which affects their performance and intensity. All fairleads obtain the certificates of quality. For more information, please feel free to contact us.

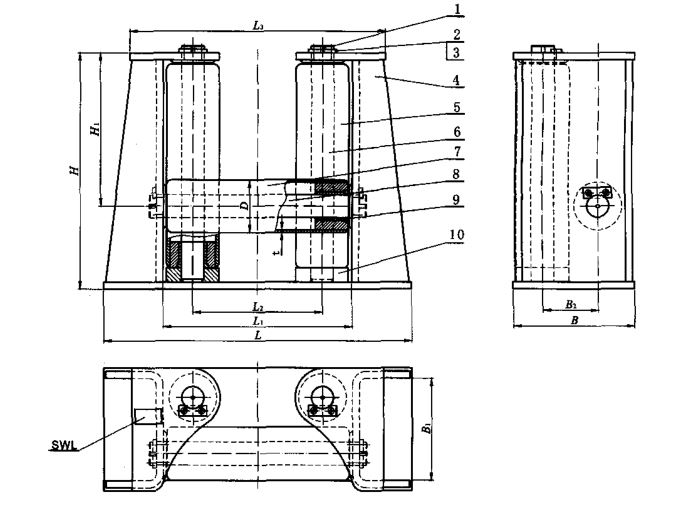

Parameters of CB/T 3062-2011 Three Rollers Fairlead Type A:

Nominal Dia.	Steel Wire Dia.	Nylon Rope Dia.	SWL KN	B	B1	B2	D	H	H1	L	L1	L2	L3	t	Weight (kg)
100	14	36	54	238	194	108	102	508	330	644	416	300	544	10	112
120	16	40	70	280	232	128	121	552	360	728	456	320	608	12	169
140	18	45	89	304	250	138	140	606	405	776	480	330	646	14	227
150	20	70	110	346	288	158	152	670	435	880	540	370	730	16	328
160	22	80	133	370	308	168	168	710	470	940	580	400	780	18	388
180	26	85	186	417	345	190	194	770	510	1030	620	420	850	20	575
200	28	95	216	459	385	210	219	820	550	1136	686	460	936	22	722
230	32	100	282	521	445	240	245	910	605	1256	746	490	1026	25	966
260	36	100	357	590	500	270	273	1000	670	1430	850	560	1170	28	1422
320	44	100	533	714	620	330	325	1130	770	1690	990	640	1370	30	2122

Features:

Model Type: Three rollers Fairlead;

Material: Steel plate;

Roller No.: 3;

Steel wire rope Dia.: 14mm-44mm;

Nylon Rope Diameter: 36mm-100mm;

Standard: CB/T 3062-2011.
