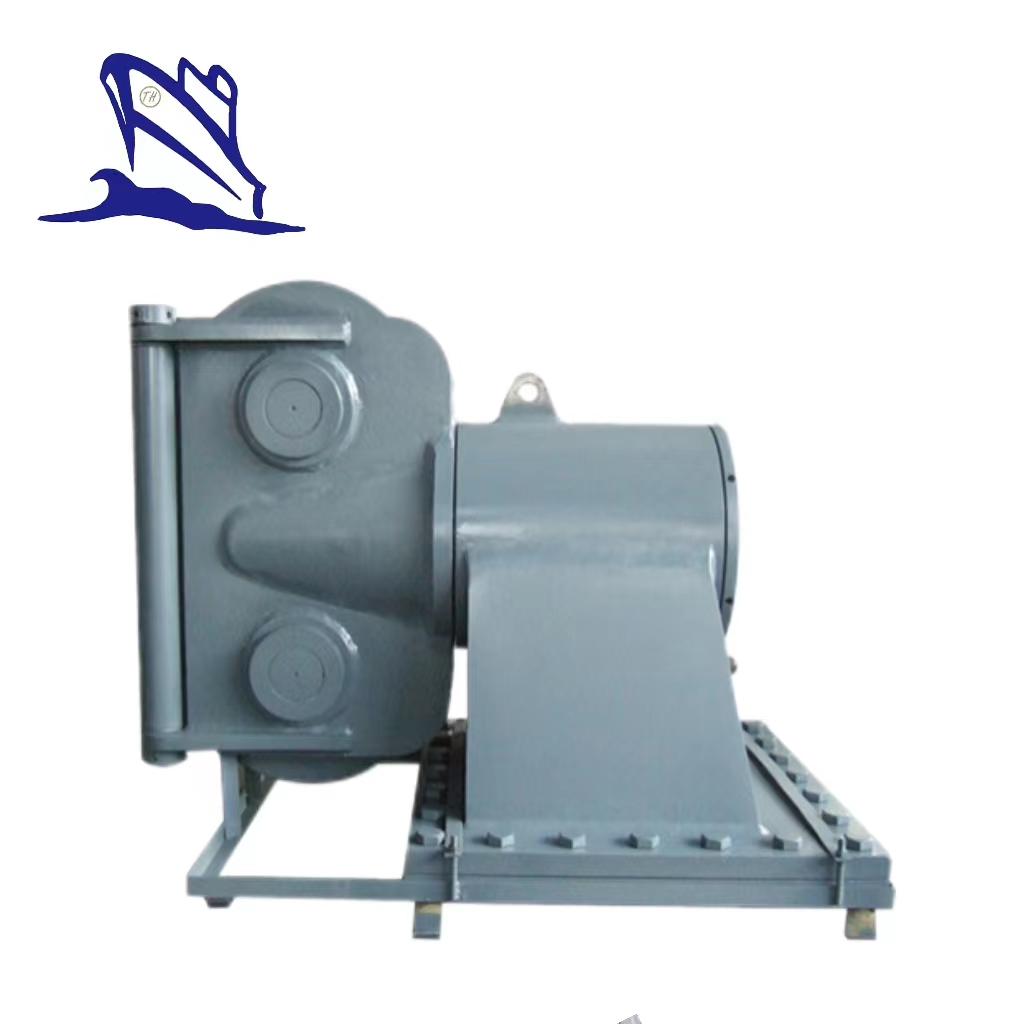

Swivel Fairlead
Description:
There are two types of fairleads installed on the deck of ship, swivel fairlead and roller fairlead. Roller fairleads are divided into 1 roller type, 3 rollers type, and 4 to 9 rollers type, etc.. The swivel fairleads can lead wire ropes and marine fiber ropes. Swivel fairleads are used to towing ships or other offshore vessels. We have two types (180 degrees and 360 degrees) with SWL for your choice. if you want to know more details, please contact us.
Features:
Model Type: Swivel Fairlead;
Material: Cast Steel;
Size: as your needs.

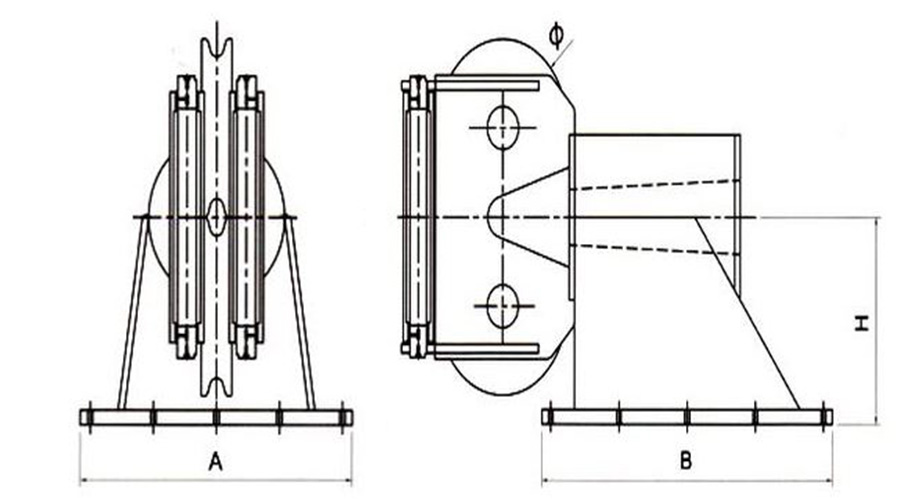

Parameters of Swivel Fairlead:
| Type | Max Wire Dia(mm) | A(mm) | B(mm) | H(mm) | Φ(mm) |
| SLPM20 | 20 | 400 | 425 | 350 | 250 |
| SLPM25 | 25 | 400 | 425 | 360 | 250 |
| SLPM32 | 32 | 600 | 600 | 376 | 320 |
| SLPM38 | 38 | 760 | 760 | 489 | 400 |
| SLPM44 | 44 | 880 | 880 | 580 | 500 |
| SLPM52 | 52 | 1120 | 1250 | 700 | 600 |
| SLPM60 | 60 | 1120 | 1350 | 720 | 620 |
| SLPM68 | 68 | 1210 | 1450 | 780 | 680 |
| SLPM76 | 76 | 1250 | 1500 | 870 |
