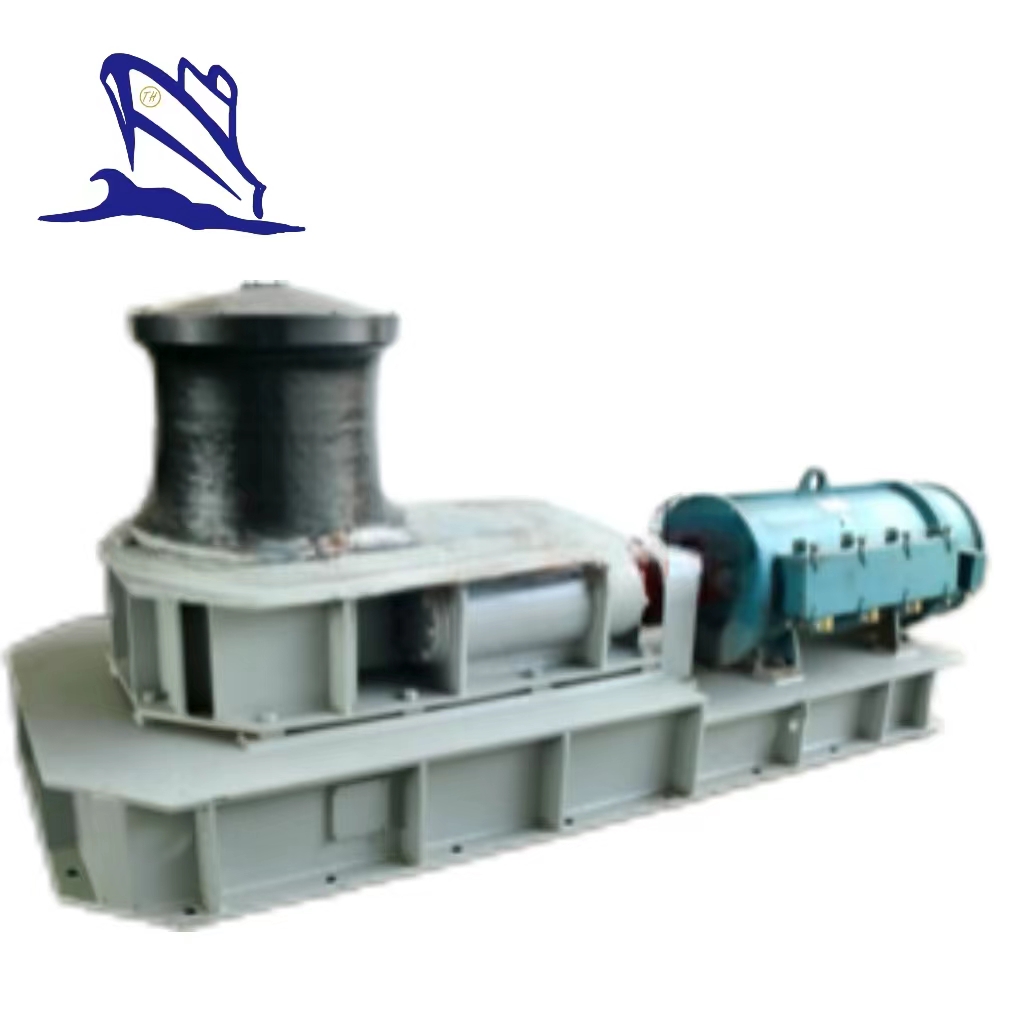

Mooring capstan
We can supply electric, hydraulic or diesel type mooring/anchor handing capstans, with CCS, NK, BV, ABS, DNV, GL, LR, etc certification. The structure can be designed with vertical or horizontal type according to your request.
Warping Load(kN) | Warping Speed(m/min) | Wire Dia.(mm) | Motor Power(kW) |
5 | ≥18 | Ф11 | 3/1.2 |
10 | ≥18 | Ф11 | 4.3/1.7 |
15 | ≥18 | Ф13 | 8.5/3.5 |
20 | ≥18 | Ф15 | 11/11/7.5 |
30 | ≥18 | Ф17.5 | 16/16/11 |
50 | ≥18 | Ф20.5 | 16 |
70 | ≥18 | Ф26 | 22 |
100 | ≥18 | Ф28 | 45/45/30 |
120 | ≥18 | Ф32.5 | 60/60/45 |
150 | ≥18 | Ф36.5 | 60/60/45 |
200 | ≥18 | Ф40 | 75/75/36 |
250 | ≥18 | Ф46 | 75/75/36 |
