MARINE CHOCK

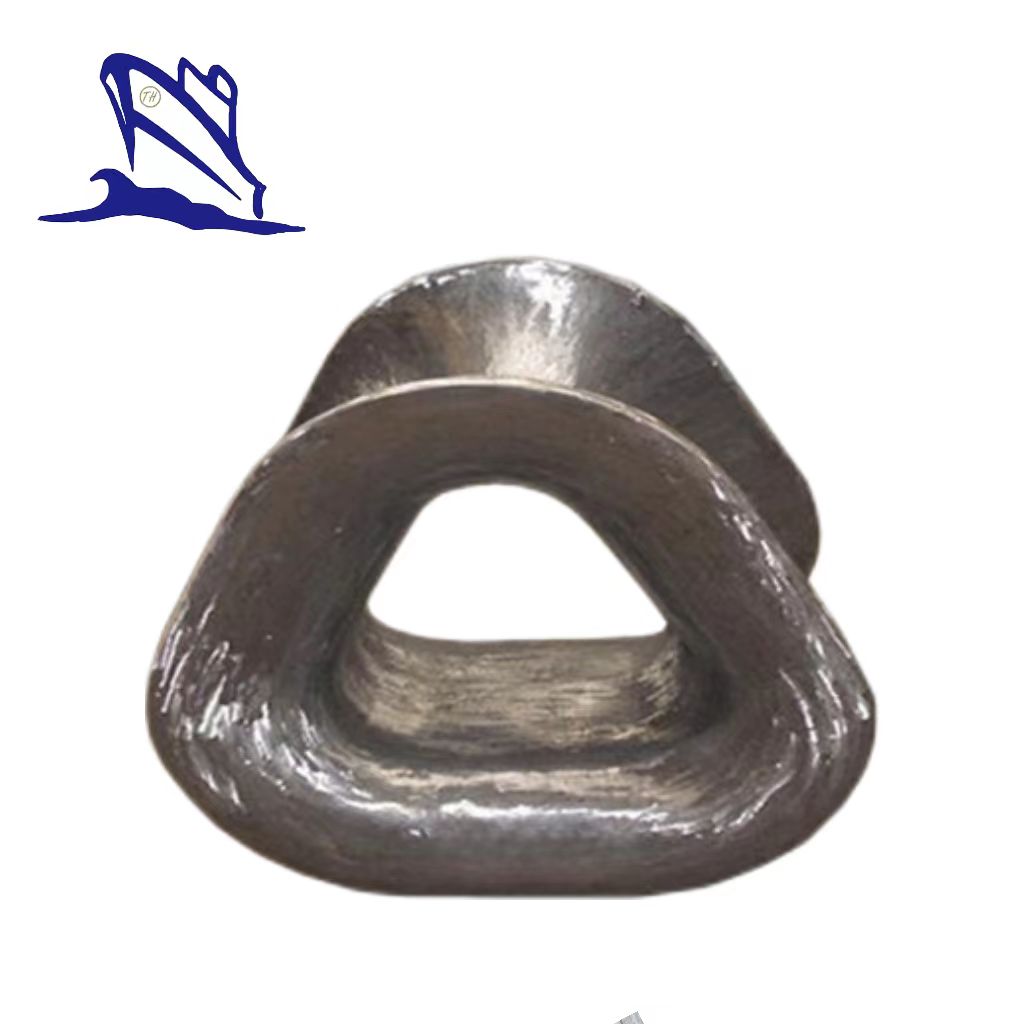

Triangle Mooring Chock



Description:

Mooring chock is a very important mooring equipment. In the process of mooring ship, it bears huge loads. Usually the marine bollards, mooring chocks for the whole ship mooring use. Generally,  both the bow and the stern of ship have installed large quantity of bollards and chocks. The triangle mooring chocks are widely used for small boats and different vessels, such as container vessel, tankers, bulk carriers, tug, dry cargo vessels, etc.

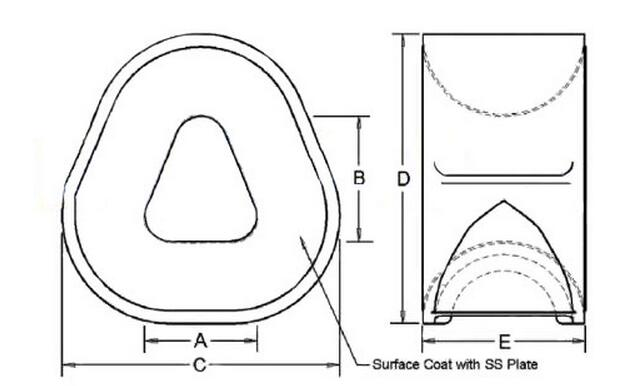

Parameters of Triangle Mooring Chock:

Nominal

Size

(mm)

Dimensions

(mm)

Mass

(kg)

A

B

C

D

E

348×388

348

388

860

900

506

540

420×440

420

440

730

800

560

640

430×580

430

580

680

830

588

780

Features:

Model Type: Bulwark Mounted Chock;

Material: Cast Steel;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc..
