MARINE CHOCK

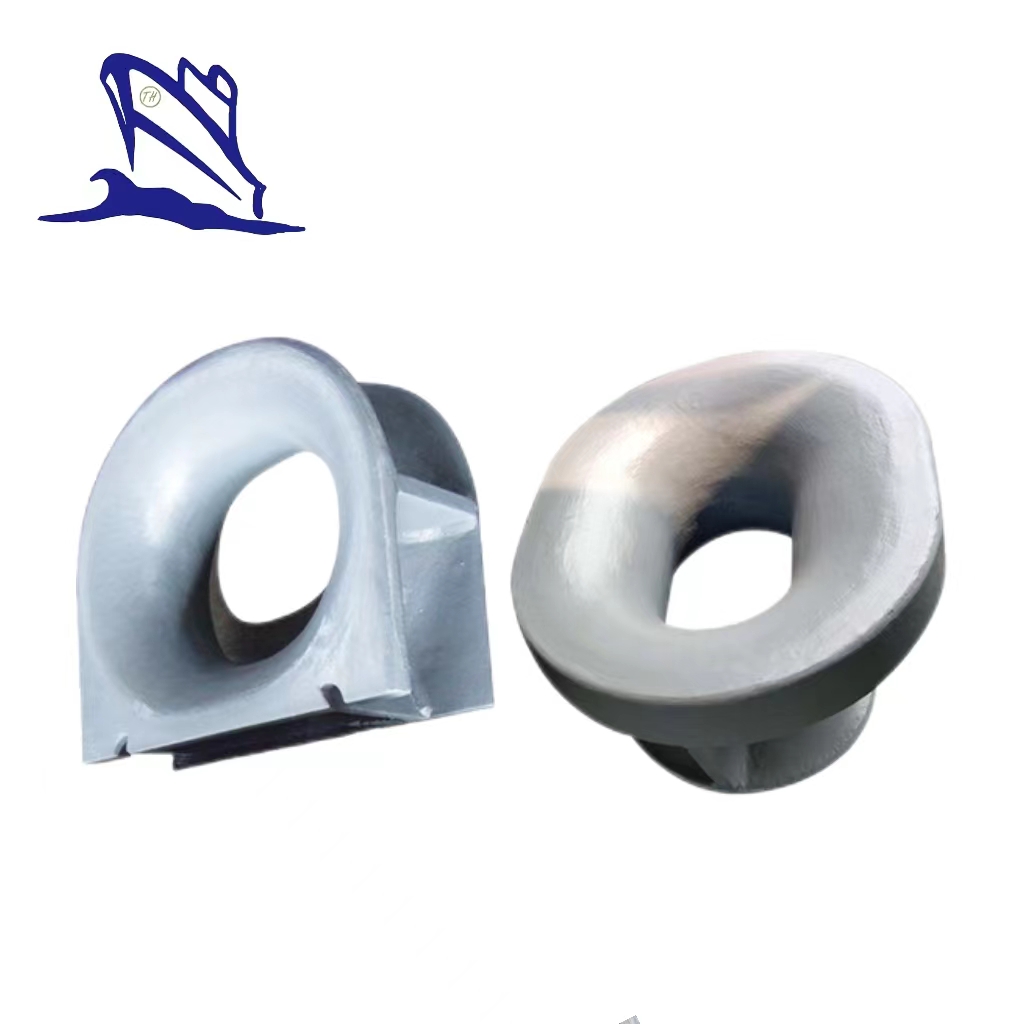

CB T34-2007 Mooring Chock

Description:

The mooring chock is a marine equipment installed on the bulwark or deck of a ship to guide and control the movement of the ropes. There are five types of CB T34-2007 mooring chocks, type A, type AF, type B, type BF, and type C. We can also provide other mooring chocks, marine equipment in keeping with standards of many countries. If you want more information about the products, please contact us.

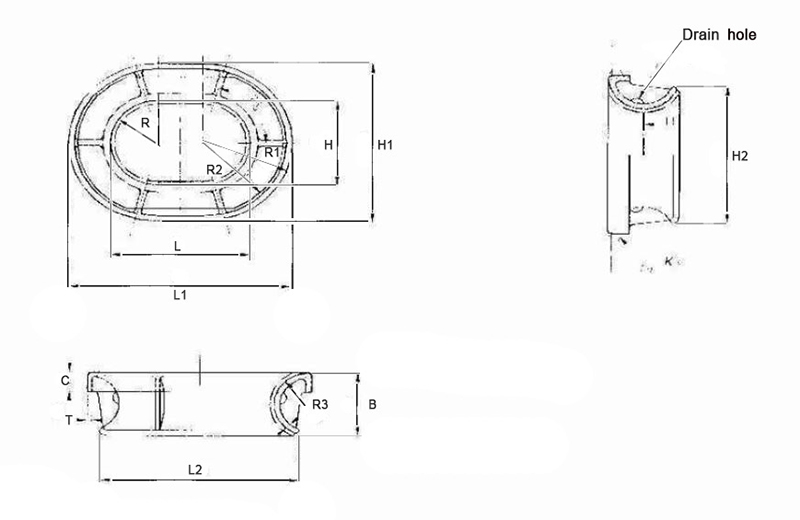

Parameters of Type A and Type AF Mooring Chock with a Size of 150~300mm:

Nomanal size L (mm)	Max diameter of steel cable	Max circumference of hemp rope	Max diameter of synthetic fiber rope	L1	L2	H	H1	H2	B	C	R	R1	R2	R3	T	Weight of type A (kg)	Weight of type AF (kg)
Nomanal size L (mm)	Max diameter of steel cable	Max circumference of hemp rope	Max diameter of synthetic fiber rope	L1	L2	H	H1	H2	B	C	R	R1	R2	R3	T	Weight of type A (kg)	Weight of coated stainless steel material	Weight after coating
150	16	125	30	300	270	110	260	202	129	40	55	130	115	65	12	15	6	21
200	18	140	35	368	334	150	318	250	143	42	75	159	142	72	12	21	8	29
250	20	160	40	430	394	200	380	308	155	44	100	190	172	78	12	27	9	36
300	22	190	45	500	460	250	450	372	169	52	125	225	205	85	15	43	12	55

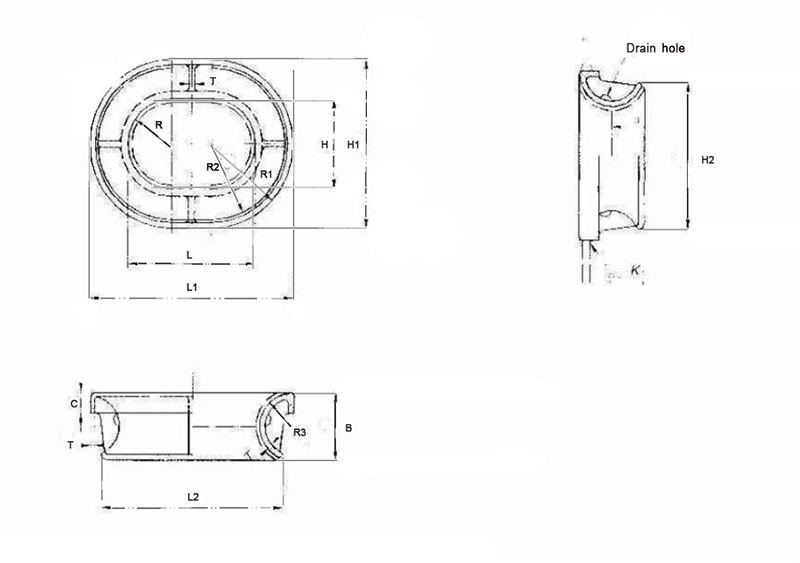

Parameters of Type A and Type AF Mooring Chock with a Size of 350~550mm:

Nomanal size L (mm)	Max diameter of steel cable	Max circumference of hemp rope	Max diameter of synthetic fiber rope	L1	L2	H	H1	H2	B	C	R	R1	R2	R3	T	Weight of type A (kg)	Weight of type AF (kg)
Nomanal size L (mm)	Max diameter of steel cable	Max circumference of hemp rope	Max diameter of synthetic fiber rope	L1	L2	H	H1	H2	B	C	R	R1	R2	R3	T	Weight of type A (kg)	Weight of coated stainless steel material	Weight after coating
350	24	220	50	560	518	250	460	378	179	55	125	230	209	90	15	51	16	67
400	26	250	60	632	586	250	482	394	195	60	125	241	218	98	18	76	20	96
450	30	270	70	700	650	250	500	406	209	62	125	250	225	105	20	102	26	128
500	36	290	80	760	708	250	510	412	219	65	125	255	229	110	20	115	32	147
550	44	310	90	830	775	280	560	460	229	70	140	280	253	115	24	135	38	172

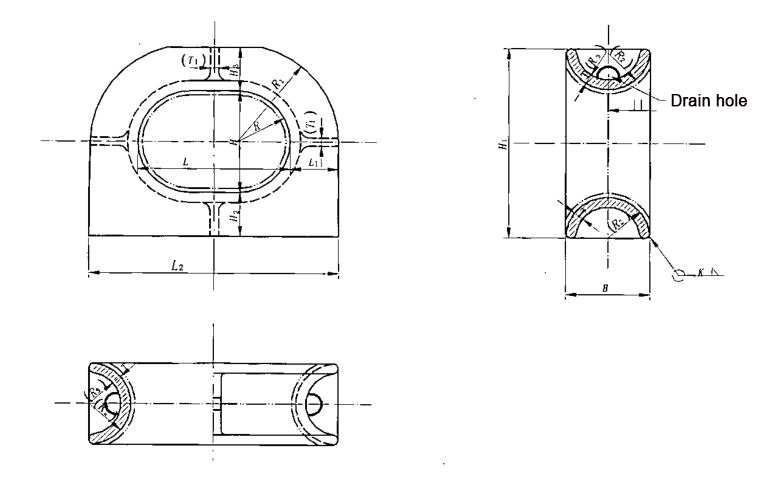

Parameters of Type B and Type BF Mooring Chock with a Size of 100~200mm:

Nomi-nal size L (mm)	Max dia-meter of steel cable	Max Circum- ference of hemp rope	Max dia-meter of synt-hetic fiber rope	L1	L2	B	H	H1	H2	H3	R	R1	T	(T1)	(R2)	(R3)	Weight of type B (kg)	Weight of type BF (kg)
Nomi-nal size L (mm)	Max dia-meter of steel cable	Max Circum- ference of hemp rope	Max dia-meter of synt-hetic fiber rope	L1	L2	B	H	H1	H2	H3	R	R1	T	(T1)	(R2)	(R3)	Weight of type B (kg)	Weight of coated stainless steel material	Weight after coating
100	14	75	18	35	170	60	76	141	30	35	38	73	12	10	30	18	4	1	5
150	16	94	22	50	250	90	110	205	45	50	55	105	16	12	45	29	11	3	14
200	18	126	28	70	340	120	150	280	60	70	75	145	20	16	60	40	24	5	29
