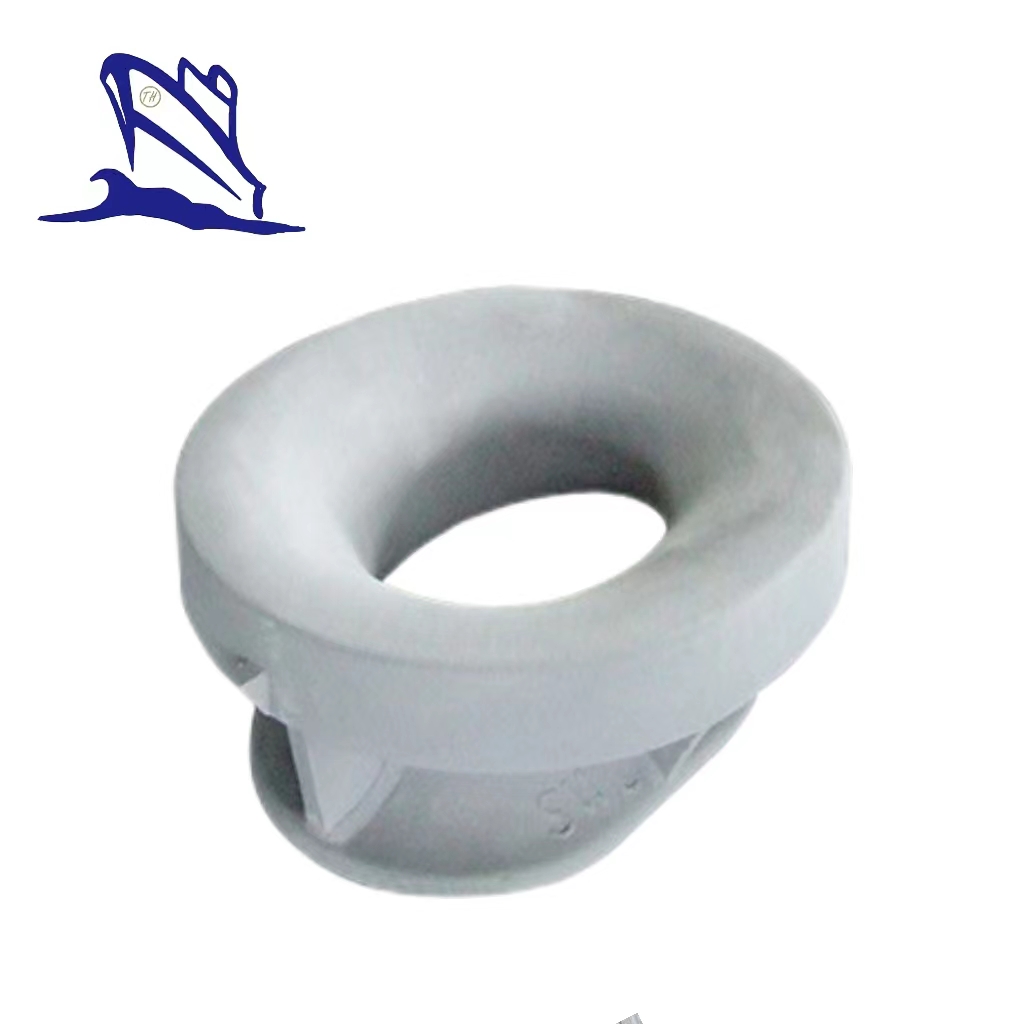

MARINE CHOCK

Description:

Panama chocks are very commonly used in ship mooring. According to the JIS F2017-1982 standard, Panama chocks have AC type, AP type, BC type and BP type. The AC type and AP type are installed on the deck, and the BC type and BP type are installed on the ship's bulwark.

Features:

Type: Bulwark Mounted;

Material: Cast steel;

Nominal Size: 310mm, 360mm;

Weight: 184kg, 193kg;

Standard: JIS F2017-1982;

Certificate: CCS, DNV, ABS, BV, LR, RS, KR, etc..

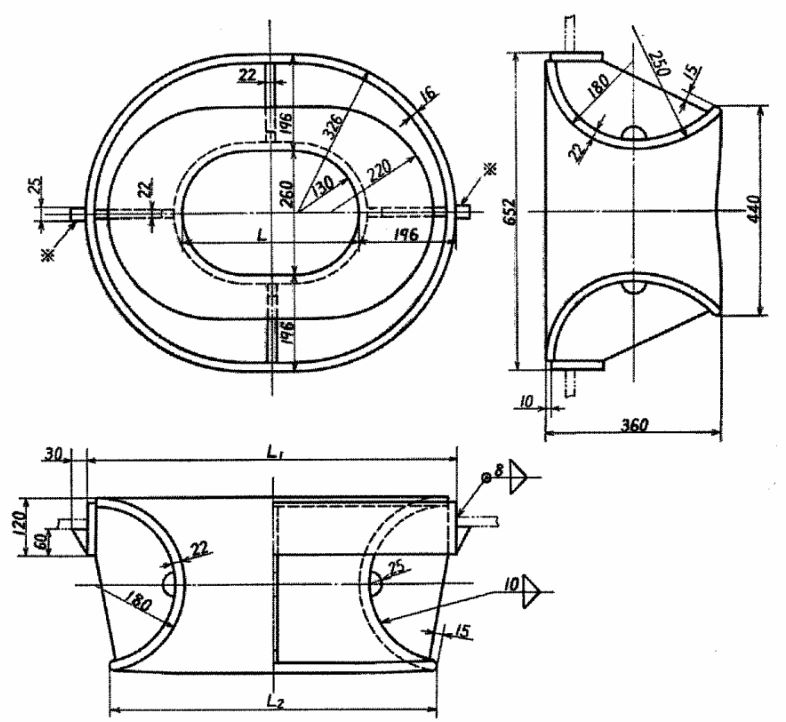

Parameters of JIS F2017 Type BP Panama Chock:
