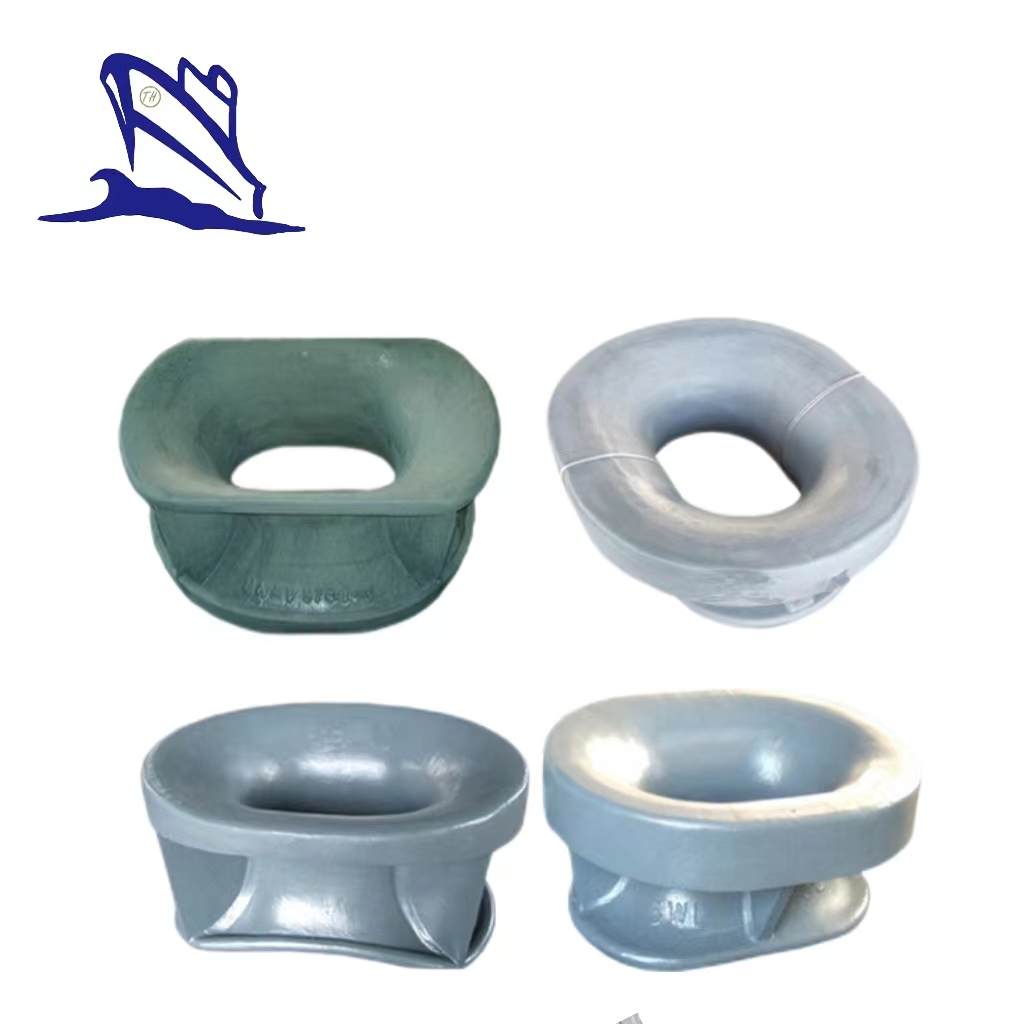

Bulwark Mounted Marine Chock
Description:
Bulwark mounted marine chock is a kind of closed chock, installed on the bulwark to limit the cable’s position. The simple and highly effective design allows mooring ropes to pass through the chock to the bollard below whilst significantly reducing the abrasion on the rope itself to prolong it's service life. Cast from high quality steel, the chocks can be supplied with primed paint to protect it from harsh weather environments. We can provide a wide range of bulwark chocks in a variety of sizes to suit your particular needs. If you need bulwark mounted chocks, please contact us.
Features:
Model Type: Bulwark Mounted;
Material: Cast Steel;
Standard: ISO13729, GB11586-89, DIN81915, JIS F2007-76, etc.;
Certificates: ABS, BV, CCS, DNV·GL, LR, NK, KR, RINA, etc..
Some Standards of Bulwark Mounted Marine Chock:
Standard | Type of Bulwark Mounted Marine Chock | The Range of Nominal Size |
Type A, Type B | Type A: 10kN~320kN Type B: 10kN~80kN | |
Type A, Type B | Type A: 150mm~500mm Type B: 150mm~300mm | |
Type B | L x H x D: 250x200x214 ~ 500x400x525B | |
Type A, Type B | Type A: 400mm~800mm Type B: 400mm~800mm | |
Type BC, Type BP | Type BC: 310mm~500mm Type BP: 310mm~360mm | |
NS2589 Mooring Chock | a x b: 300mmx250mm, 400mmx250mm | |
Type A, Type AF, Type C | Type A: 150mm~550mm Type AF: 150mm~550mm Type C: 120mm~320mm | |
Bulwark Mounted Chock | A x B: 315mmx250mm, 425mmx280mm 600mmx315mm, 600mmx450mm | |
Type B | L: 310mm, 360mm | |
Type BP | L: 310mm, 360mm | |
Type BC | L: 310mm, 360mm, 400mm, 450mm, 500mm |
