MARINE CHOCK

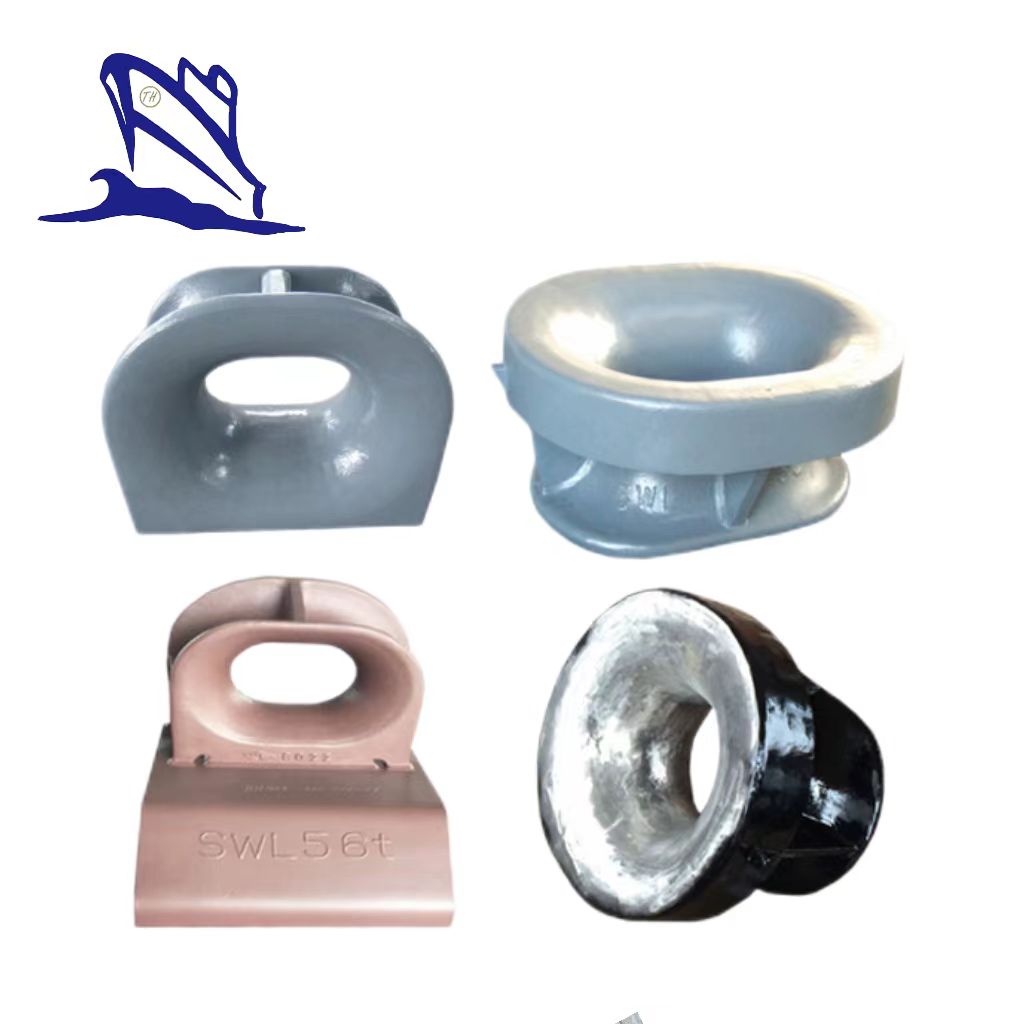

Deck Mounted Chock with Foundation

Description:

Deck mounted chock are mounted directly on the vessel's deck, acting as a specific guide for mooring ropes. This chock is aim to reduce abrasion between ship hull and mooring ropes, and prolong the service life of the mooring ropes. The chock can be fitted directly on the deck or we can supply them with a foundation as your needs.

Foundation is available for Deck Mounted Chocks in the Following Standards:

Standard	Type of Deck Mounted Marine Chock	The Range of Nominal Size
DIN 81915 Chock	Type C, Type D, Type E	Type C: 200KN~320KN Type D: 10KN~80KN Type E: 80KN~200KN
JIS F2005-1975 Closed Chock	JIS F2005-1975 Closed Chock	L: 100mm~500mm
ISO13729 Type A Deck Mounted Closed Chock	Type A	L x H x D: 250x200x214~500x400x525B
GB 11586-89 Panama Chock	Type AC, Type AP	Type AC (L): 310mm, 360mm, 400mm, 450mm, 500mm Type AP (L): 310mm, 360mm
NS 2590 Mooring Chock	NS 2590 Mooring Chock	W1xW2: 300mmx250mm, 400mmx250mm
CB T34-2007 Mooring Chock	Type B, Type BF	Type B: 100mm~500mm Type BF: 100mm~500mm
EU Type Deck Mounted Chock	EU Type Deck Mounted Chock	A x B: 315mmx250mm~800mmx600mm
ISO 13728 Panama Chock	Type A	L: 310mm, 360mm
JIS F2017 Type AP Panama Chock	Type AP	L: 310mm, 360mm
JIS F2017 Type AC Panama Chock	Type AC	L: 310mm, 360mm, 400mm, 450mm, 500mm

Features:

Model Type: Deck Mounted Chock;

Material: Cast Steel;

Certificates: BV, ABS, CCS, LR, NK, KR, RINA, etc..
