MARINE CHOCK

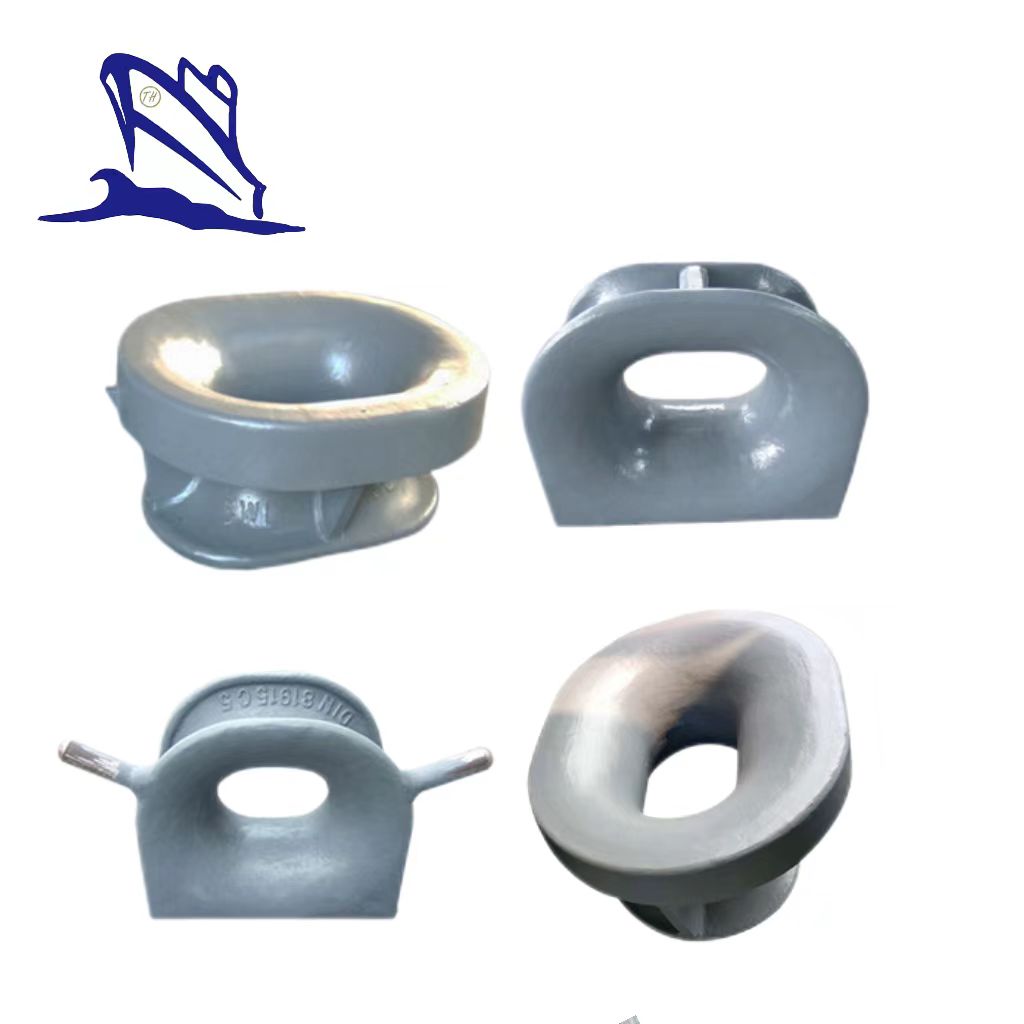

Marine Chock Type B



Description:

There are deck mounted chocks and bulwark mounted chocks for marine chock type B. The deck mounted chocks can be fitted directly to the deck or we can supply them with a foundation if needed. The bulwark mounted chocks can be installed directly to the bulwark. By the way, we also can customize according to your request. Any question, just feel free to contact us.

Features:

Model Type: Marine Chock Type B;

Material: Cast Steel;

Standard: DIN 81915, JIS F2007-1976, JIS F2030-1978, CB/T 34-2007, ISO13728, ISO 13729;

Certificates: BV, ABS, CCS, LR, NK, KR, RINA, etc..

Standards of Marine Chock Type B:

Type B Standard

The Range of Nominal Size

DIN 81915 Chock

10KN~320KN

JIS F2007-1976 Mooring Chock

L:

150mm~500mm

JIS F 2030-1978 Single Point Mooring Pipes

L:

400mm~800mm

CB T34-2007 Mooring Chock

L:

150mm~550mm

ISO13728 Panama Chock

L: 310mm, 360mm

ISO13729 Type B Bulwark Mounted Closed Chock

L x H x D:

250x200x214~500x400x525B
