MARINE NAVIGATION SIGNAL LIGHT

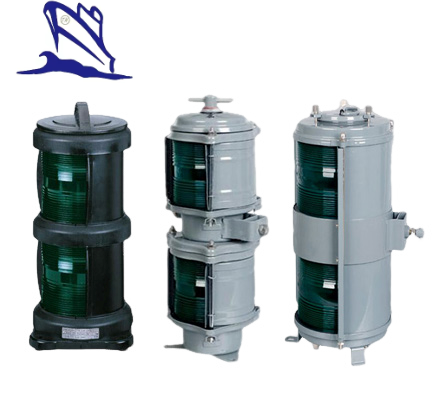

Double-deck Starboard Light




Double-deck Starboard Light:

Double-deck Starboard Light is a kind of starboard light produced by stainless steel,plastic,steel,and made into double-deck.It applied to the ships with the length above 12m.The starboard lights have the features that corrosion resistance and shock resistance,and some of them has automatic aleak holes in the bottom,convenient to install and replace the bulb.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995.Approved by CCS and ZY of China Fishery Inspection.

Specification:

Type

Bulb

Level arc

Visibility

Color

Protection class

Lamp holder

Weight

CXH1-10B

24V 60W

110V 60W

220V 65W

112.5°

3n.m

Green

IP55

B22d

9.0kg

CXH1-10B1

24V 60W 60cd

110V 60W 60cd

220V 65W 60cd

112.5°


3n.m

IP56

P28S

4.3kg

CXH1-20C1

24V 30W

112.5°


2n.m

IP55

B15d

3.6kg

CXH1-101P

24V 2*60W 60cd

110V 2*60W 60cd

220V 2*65W 60cd

112.5°


3n.m

IP56

P28S

4.15kg

CXH1-101PL

220V 2*30W

112.5°


3n.m

IP56

E27

4.15kg
