MARINE NAVIGATION SIGNAL LIGHT

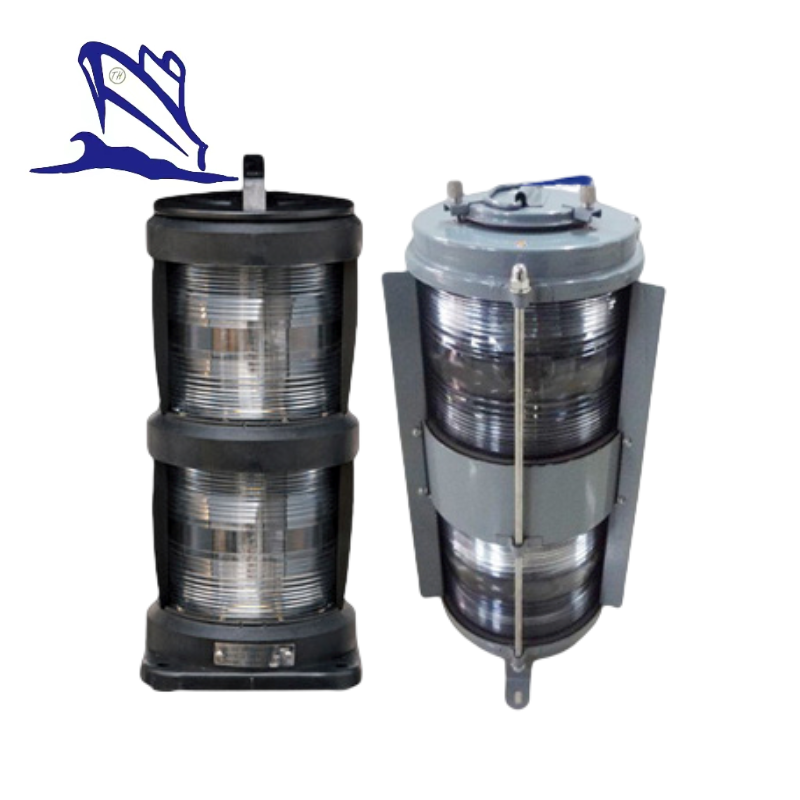

Double-deck Masthead Light




Double-deck Masthead Light:

Double-deck masthead Light is a kind of masthead light,which has the features that corrosion resistance and shock resistance,and some of them has automatic aleak holes in the bottom,convenient to install and replace the bulb.Applied to the ships with the length above 12m,conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995.Approved by CCS and ZY of China Fishery Inspection.

Specification:

Type

Bulb

Level arc

Visibility

Color

Protection class

Lamp holder

Weight

CXH3-10B

24V 60W

110V 60W

220V 65W

225°

6n.m

Transparent

IP55

B22d

9.0kg

CXH3-10B1

24V 60W 60cd

110V 60W 60cd

220V 65W 60cd

225°

6n.m

IP56

P28S

4.1kg

CXH3-20C1

24V 30W

225°

5n.m

IP55

B15d

3.2kg

CXH3-101P

24V 2*60W 60cd

110V 2*60W 60cd

220V 2*65W 60cd

225°

6n.m

IP56

P28S

4.15kg

CXH3-101PL

220V 2*30W

225°

6n.m

IP56

E27

4.15kg
