MARINE COMPASS

75mm Plastic Marine Compass with 3 Inches Wooden Box

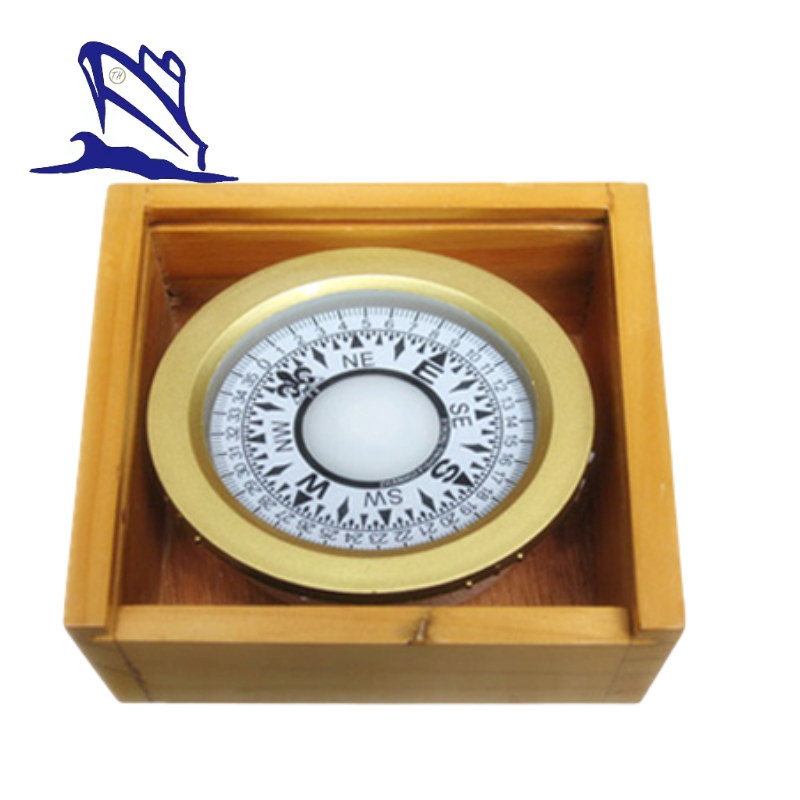

75mm Ringless Plastic Marine Compass with 3 Inches Wooden Case

75mm Ringless Plastic Marine Compass with 3 Inches Wooden Case is a sort of automatic fluid-filling magnetic compass. It meets the ISO-449A and GB3896-83A standards and its technical performance index completely measures up to the national standard. The housing material of this compass is plastic, which has the advantages of light in weight, anti-aging, and not color. Besides, the operation of this compass is quite easy.

Specifications

Project	Data
Model	CPS-75M
Dial Diameter	75mm
Direction Error	Not more than 1.5°
Operation Temperature	-20℃~+60℃
Packing Dimension	53×42×23cm
Packing Quantity	36
Gross Weight	19.4kg
Net Weight	18.4kg

Features

1. High sensitivity

2. Stable performance

3. Easy to install

4. To be suitable for small and medium-sized civilian ships, or yachts.
