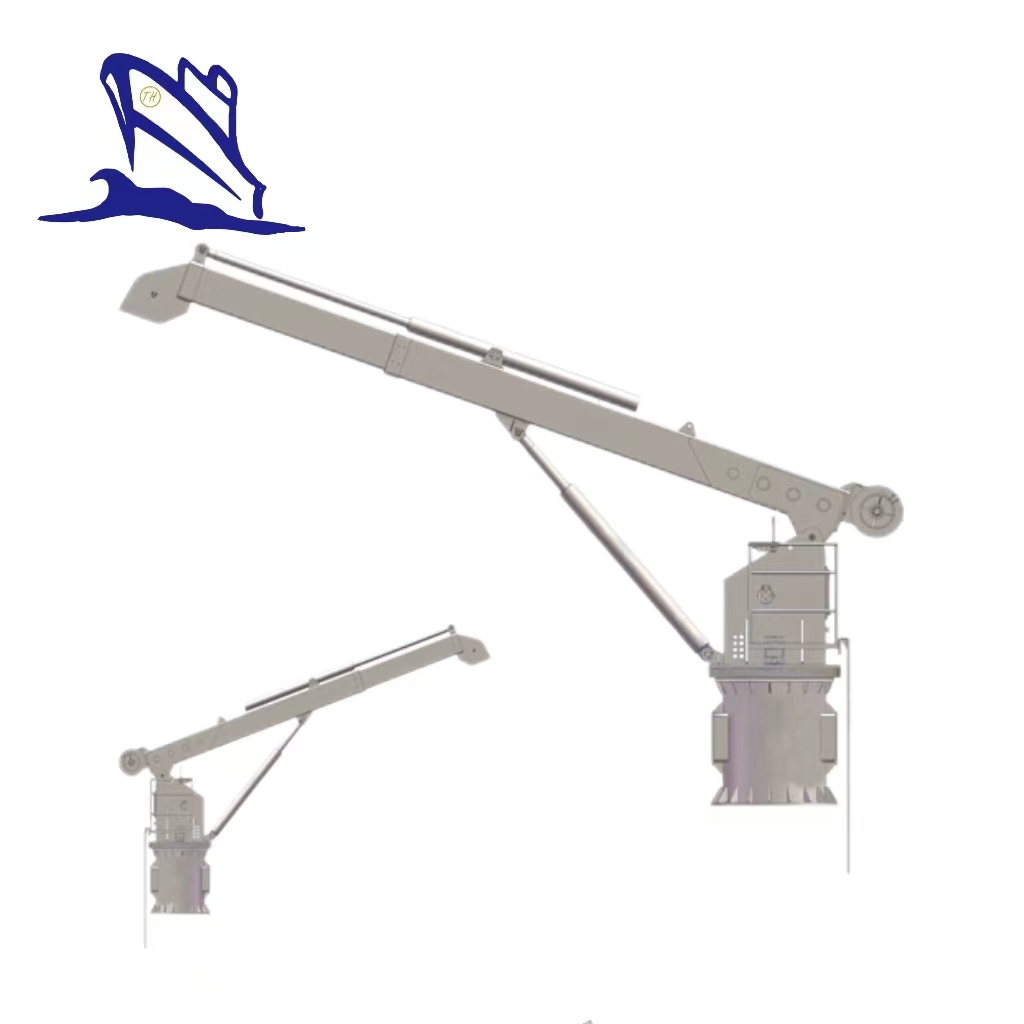

Marine Crane
Marine Crane:
Marine crane is designed especially for oil platform, platform supply vessel, barge etc. Based on the design consideration of API-2C, marine cranes can be in the working condition of inboard lift, outboard lift and personnel lift.
The crane can be equipped with:
- Cab air-conditioning system
- Suspension arm projection lamp
- Aircraft Obstruction Beacon and Suspension Arm Projection Lamp
- Anti-explosion
- Constant tension system
- Electromotor or diesel drive
- Touch screen display function
- Sea state selection function
- Hanged man function
- Certificates from CCS, DNV, ABS, GL, LR, BV,RINA, NK, KR and other classification societies
Main specification:
| Model | Offshore hoisting load×radius(t×m) | Onboard hoisting load×radius(t×m) | Hoisting load×speed(t×m.min) | Whip load×radius(t×m/min) | Luffing time(s) | Slewing speed(m/min) | Driving power(kw) |
| HO5-15P | 5×15 | 5×15 | 5×30 | - | CL:70 | 0.8 | 75 |
| HO15-10(8.5-18)P | 15×10 8.5×18 | 15×10 8.5×18 | 15×20 | 3×20×30 | CL:130 | 1 | 160 |
| HO25-35P | 25×35 | 25×35 | 25×20 | - | CL:130 | 0.5 | 315 |
| HO15-15P | 15×15 | 15×15 | 15×18 3×26 | - | RL:100 | 1.5 | 110 |
| HO16-25P | 16×25 | 16×25 | 16×18 | - | RL:100 | 1 | 200 |
| HO20-16(5-30.5)P | 20×16 5×30.5 | 20×22 7.5×30.5 | 20×10 1×13 | 5×32×30 | RL:160 | 1 | 224 |
| HO30-12(11-30.5) | 30×12 11×30.5 | 30×17 15.5×30.5 | 30×30 | 5×32×70 | RL:130 | 1 | 315 |
| HO20-16(5-30.5)P | 20×16 5×30.5 | 20×22 7.5×30.5 | 20×10 1×13 | 5×32×30 | RL:160 | 1 | 224 |
| HO30-12(11-30.5)P | 30×12 11×33.5 | 30×17 15.5×33.5 | 30×30 | 5×32×70 | RL:130 | 1 | 315 |
| HO40-102(11-36.5)P | 40×10 11×36.5 | 40×14 15.5×36.5 | 40×30 | 5×38×70 | RL:130 | 0.8 | 400 |
| HO50-15(15-33.5)P | 50×15 15×33.5 | 50×15 15×33.5 | 50×18 | 10×36×60 | RL:130 | 0.8 | 350 |
| HO70-15(30-45)P | 70×15 30×45 | 70×21 40×45 | 70×18 | 20×48×67 | RL:180 | 0.85 | 650 |
| HO80-10(12-45)P | 80×10/12×45(n=4) 40×23/14×45(n=2) | 80×10/12×45(n=4) 40×23/14×45(n=2) | 80×9(n=4) 40×18(n=2) | 5×47.5×90 | RL:150 | 0.6 | 336 |
| Note: 1.The driving voltage:380V/50Hz ac/3 Ph or 440V/60Hz ac/3 Ph or diesel engine. 2.The parameter table is only for reference, specifications user requirements can be designed. 3.RL-steel rope luffing,CL-oil cylinder luffing. | Model explain:HO5-15P 1. HO-Hydraulic Offshore Crane 2. 5-SWL 3.15-Max. working radius 4. P-Offshore pedestal crane | ||||||
