MARINE CRANE

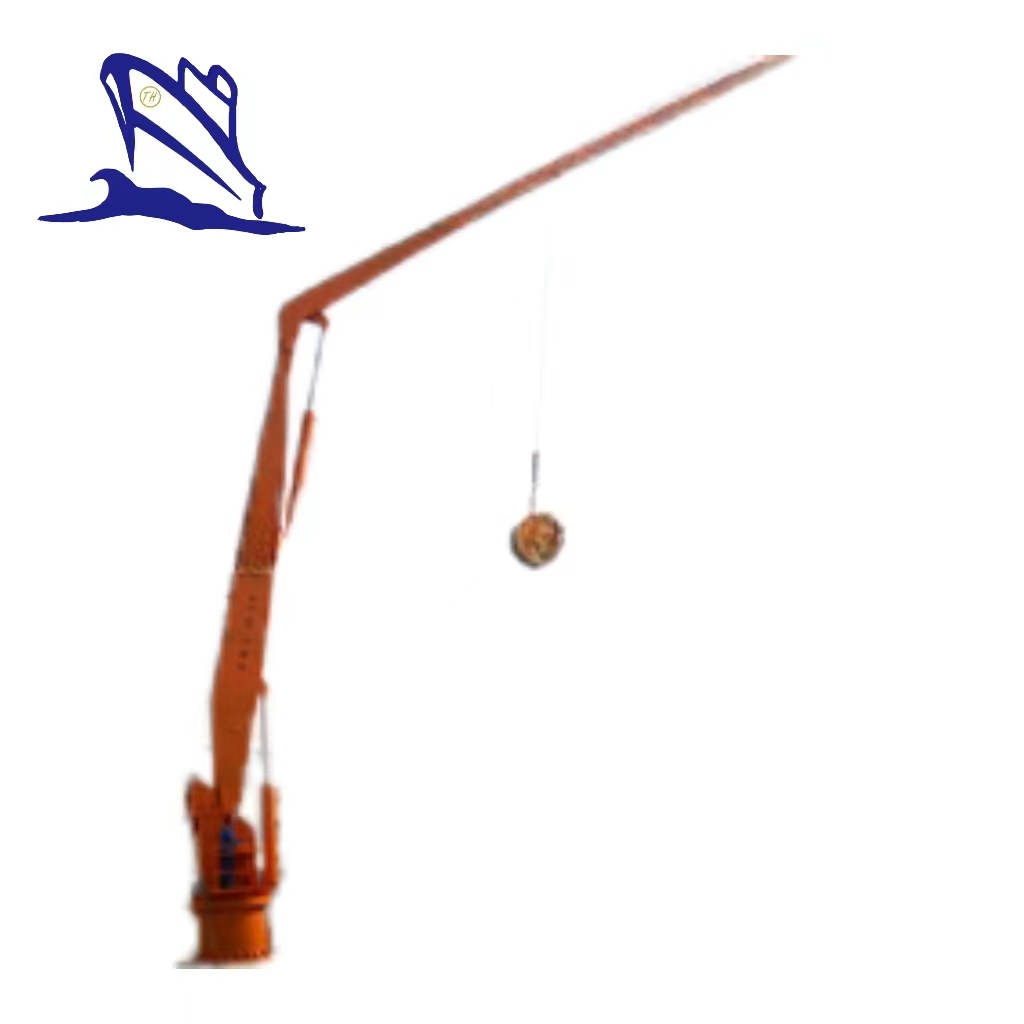

Crane: 5T-18M Knuckle Boom Crane Main Technical Specifications 1、Working Load: 50kN 2、 Hoisting Height: 25m 3、 Hoisting Speed: 10m/min 4、 Slewing Speed: 0.5r/min 5、 Slewing Angle: 360° 6、 Working Radius: 1.8-8m 7、Time of Arm Change: 120s 8、Electric Motor Power: 25KW Power Source: 440V,60Hz Protection type: IP44 Insulation: F Cable gland: With Space heater: Yes Starting method: Soft start Comply with IEC requirement: Yes 9、Design Condition: Heel ＜5° Trim ＜2° 10、Electrical control box Protection type: Ip23 Control Voltage: 220 V 50 Hz 1 phase We can supply Marine cranes and Offshore cranes, and all these cranes will be certifiacted by CCS, ABS, NK, DNV, GL, BV, LR, etc, and API 2C.crane:5T-18M Knuckle Boom CraneMain Technical Specifications1%E3%80%81Working Load: 50kN2%E3%80%81 Hoisting Height: 25m3%E3%80%81 Hoisting Speed: 10m/min4%E3%80%81 Slewing Speed: 0.5r/min5%E3%80%81 Slewing Angle: 360%C2%B06%E3%80%81 Working Radius: 1.8-8m7%E3%80%81Time of Arm Change: 120s8%E3%80%81Electric MotorPower: 25KWPower Source: 440V,60HzProtection type: IP44Insulation: FCable gland: WithSpace heater: YesStarting method: Soft startComply with IEC requirement: Yes9%E3%80%81Design Condition:Heel %EF%BC%9C5%C2%B0Trim %EF%BC%9C2%C2%B010%E3%80%81Electrical control boxProtection type: Ip23Control Voltage: 220 V 50 Hz 1 phaseWe can supply Marine cranes and Offshore cranes, and all these cranes will be certifiacted by CCS, ABS, NK, DNV, GL, BV, LR, etc, and API 2C.
