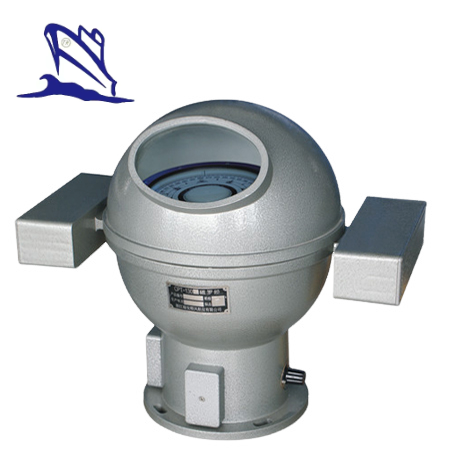

CPT-130B Table Model Marine Liquid Compass
CPT-130B Table Model Marine Liquid Compass
CPT-130B Table Model Marine Liquid Compass belongs to liquid compass. It is manufactured under exacting standards, so the quality of this compass is guaranteed. This compass has advantages of compact in construction, light in weight, easy in installation and high in reliability. For more specific information, please email us.
Specifications
Project | Data |
Dial Diameter | Φ 130mm |
Dial Graduation | 0°-360°, 1° for each grid |
Operation Temperature | -20°C~+60°C |
Indicating Deviation(H=35µ T, T=20±3°C) | ≦1.5° |
Half Period (H=34µ T, T=20±3°C) | ≧5.59S |
Friction Deviation (H=34µ T, T=20±3°C) | ≦0.26° |
Main Semicircle Self Heterodyne Correcting Energy | 1°~ 40° |
Quadrant Self Heterodyne Correcting Energy | 1°~5° |
Lighting Power | DC 24V |
Outline Dimension | 380×240×330mm |
Diameter of Mounting Holes | pitchrow 155, aperture Φ10 |
Weight | 5.5KG |
Features
1. Easy in installation
2. High sensitivity
3. With illumination
Rugged construction
