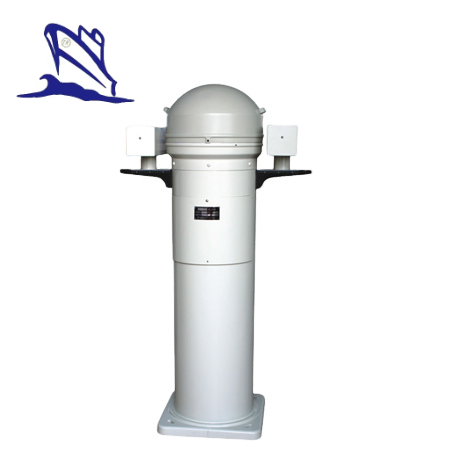

CPL-190 Vertical Marine Magnetic Compass
CPL-190 Vertical Marine Magnetic Compass
CPL-190 Vertical Marine Magnetic Compass is a kind of liquid magnetic compass, suitable for large, medium-sized vessels acting as standard compass or steering compass. This compass has the characteristics of reasonable structure, simple operation, easy installation and high precision. It meets national standards GB/T14108-2011(General Technical Terms of Marine Magnetic Compass Class A).
Specifications
Project | Data |
Dial Diameter | Φ 190mm |
Dial Graduation | 0°~360° 1° for each grid |
Operation Temperature | -25°C~+60°C |
Indicating Deviation(H=35µ T, T=20±3°C) | <=0.5° |
Half Period (H=34µ T, T=20±3°C) | >=8.62S |
Friction Deviation (H=34µ T, T=20±3°C) | <=0.09° |
Main Semicircle Self Heterodyne Correcting Energy | 1°~ 45° |
Secondary Semicircle Self Heterodyne Correcting Energy | 1°~ 6° (magnetic inclination Q=45°) |
Quadrant Self Heterodyne Correcting Energy | 0.5°~10° |
Inclining Heterodyne Correcting Energy | -75~ +75µT |
Lighting Power | AC220V, DC24V |
Outline Dimension | 720×430×1300mm |
Diameter of Mounting Holes | pitchrow 420, aperture Φ16 |
Weight | 40KG |
Features
1. Easy to install
2. Simple to operate
3. To be space-efficient
4. High precision
5. Stable performance
