MARINE CRANE

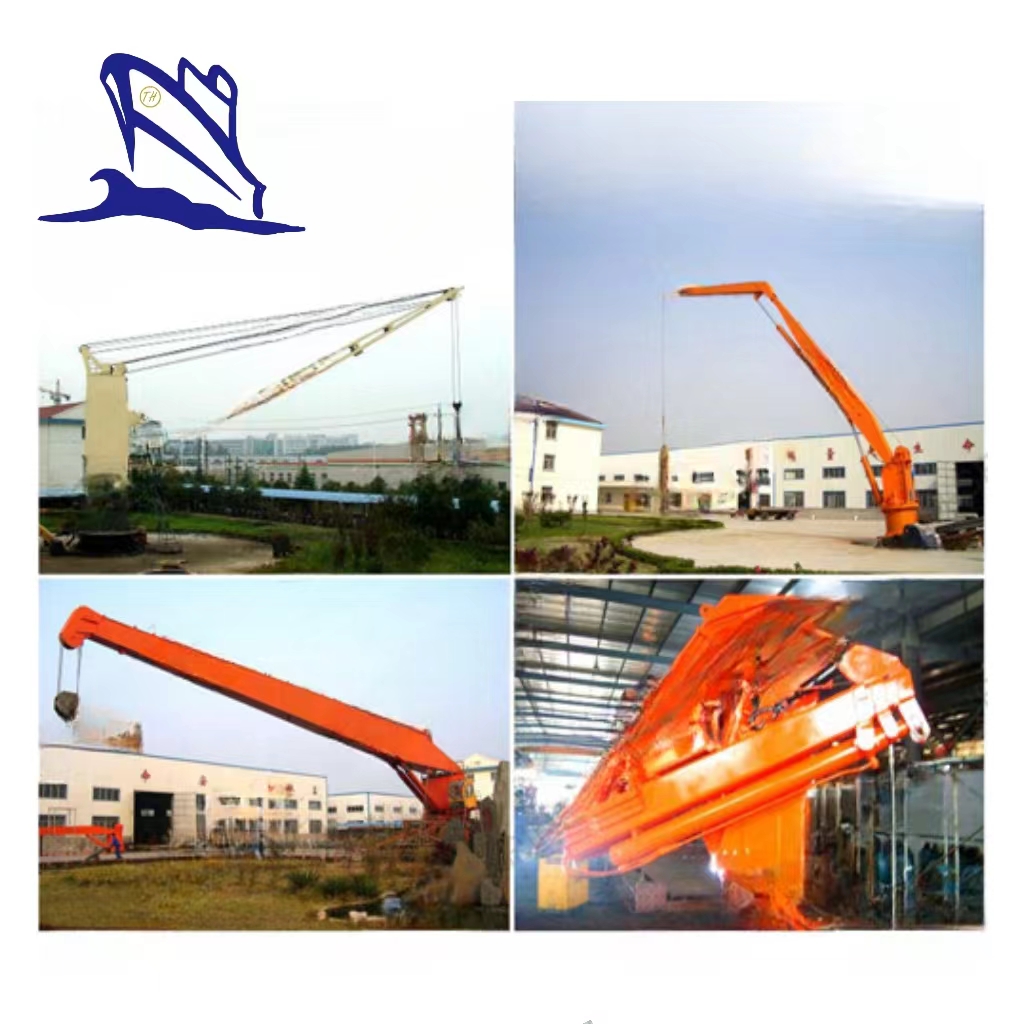

Offshore Crane: Offshore crane is designed especially for oil platform, platform supply vessel, barge etc. Based on the design consideration of API-2C, offshore cranes can be in the working condition of inboard lift, outboard lift and personnel lift. The crane can be equipped with: Cab air-conditioning system Suspension arm projection lamp Aircraft Obstruction Beacon and Suspension Arm Projection Lamp Anti-explosion Constant tension system Electromotor or diesel drive Touch screen display function Sea state selection function Hanged man function Certificates from CCS, DNV, ABS, GL, LR, BV,RINA, NK, KR and other classification societies Main specification: Model Offshore hoisting load×radius(t×m) Onboard hoisting load×radius(t×m) Hoisting load×speed(t×m.min) Whip load×radius(t×m/min) Luffing time(s) Slewing speed(m/min) Driving power(kw) HO5-15P 5×15 5×15 5×30 - CL:70 0.8 75 HO15-10(8.5-18)P 15×10 8.5×18 15×10 8.5×18 15×20 3×20×30 CL:130 1 160 HO25-35P 25×35 25×35 25×20 - CL:130 0.5 315 HO15-15P 15×15 15×15 15×18 3×26 - RL:100 1.5 110 HO16-25P 16×25 16×25 16×18 - RL:100 1 200 HO20-16(5-30.5)P 20×16 5×30.5 20×22 7.5×30.5 20×10 1×13 5×32×30 RL:160 1 224 HO30-12(11-30.5) 30×12 11×30.5 30×17 15.5×30.5 30×30 5×32×70 RL:130 1 315 HO20-16(5-30.5)P 20×16 5×30.5 20×22 7.5×30.5 20×10 1×13 5×32×30 RL:160 1 224 HO30-12(11-30.5)P 30×12 11×33.5 30×17 15.5×33.5 30×30 5×32×70 RL:130 1 315 HO40-102(11-36.5)P 40×10 11×36.5 40×14 15.5×36.5 40×30 5×38×70 RL:130 0.8 400 HO50-15(15-33.5)P 50×15 15×33.5 50×15 15×33.5 50×18 10×36×60 RL:130 0.8 350 HO70-15(30-45)P 70×15 30×45 70×21 40×45 70×18 20×48×67 RL:180 0.85 650 HO80-10(12-45)P 80×10/12×45(n=4) 40×23/14×45(n=2) 80×10/12×45(n=4) 40×23/14×45(n=2) 80×9(n=4) 40×18(n=2) 5×47.5×90 RL:150 0.6 336 Note: 1.The driving voltage:380V/50Hz ac/3 Ph or 440V/60Hz ac/3 Ph or diesel engine. 2.The parameter table is only for reference, specifications user requirements can be designed. 3.RL-steel rope luffing,CL-oil cylinder luffing. Model explain:HO5-15P 1. HO-Hydraulic Offshore Crane 2. 5-SWL 3.15-Max. working radius 4. P-Offshore pedestal crane
