EU Type Bulwark Mounted Chock
Description:
WWhen we are talking about chocks, there are always two types, deck mounted chock and bulwark mounted chock according to different application position on ships. EU type chock have two types based on their installation, they are EU type deck mounted chock and EU type bulwark mounted chock. If you are interested in any of our products, please feel free to contact us.
Parameters of EU Type Bulwark Mounted Chock:

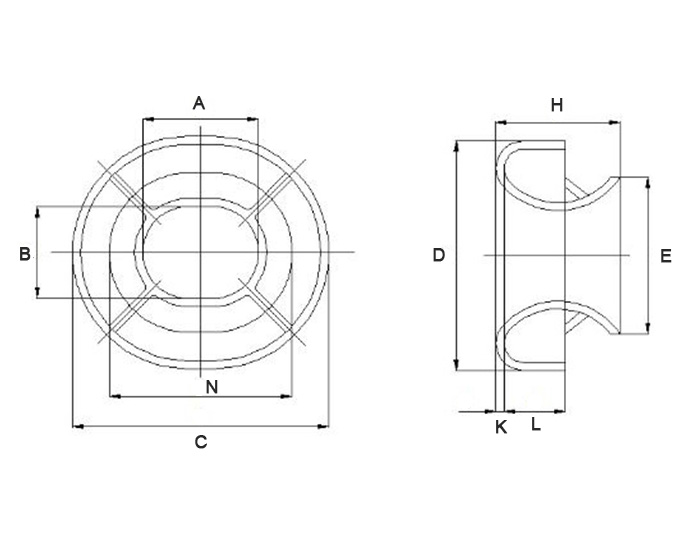

Nominal Size A x B (mm) | Dimension(mm) | Weight | ||||||||
A | B | C | D | E | H | K | L | N | (kg) | |
315x250 | 315 | 250 | 695 | 630 | 432 | 342 | 22 | 168 | 497 | 198 |
425x280 | 425 | 280 | 925 | 780 | 516 | 450 | 26 | 224 | 661 | 358 |
600x315 | 600 | 315 | 1160 | 875 | 571 | 504 | 30 | 250 | 866 | 547 |
600x450 | 600 | 450 | 1160 | 1010 | 706 | 504 | 30 | 250 | 866 | 629 |
