MARINE CHOCK

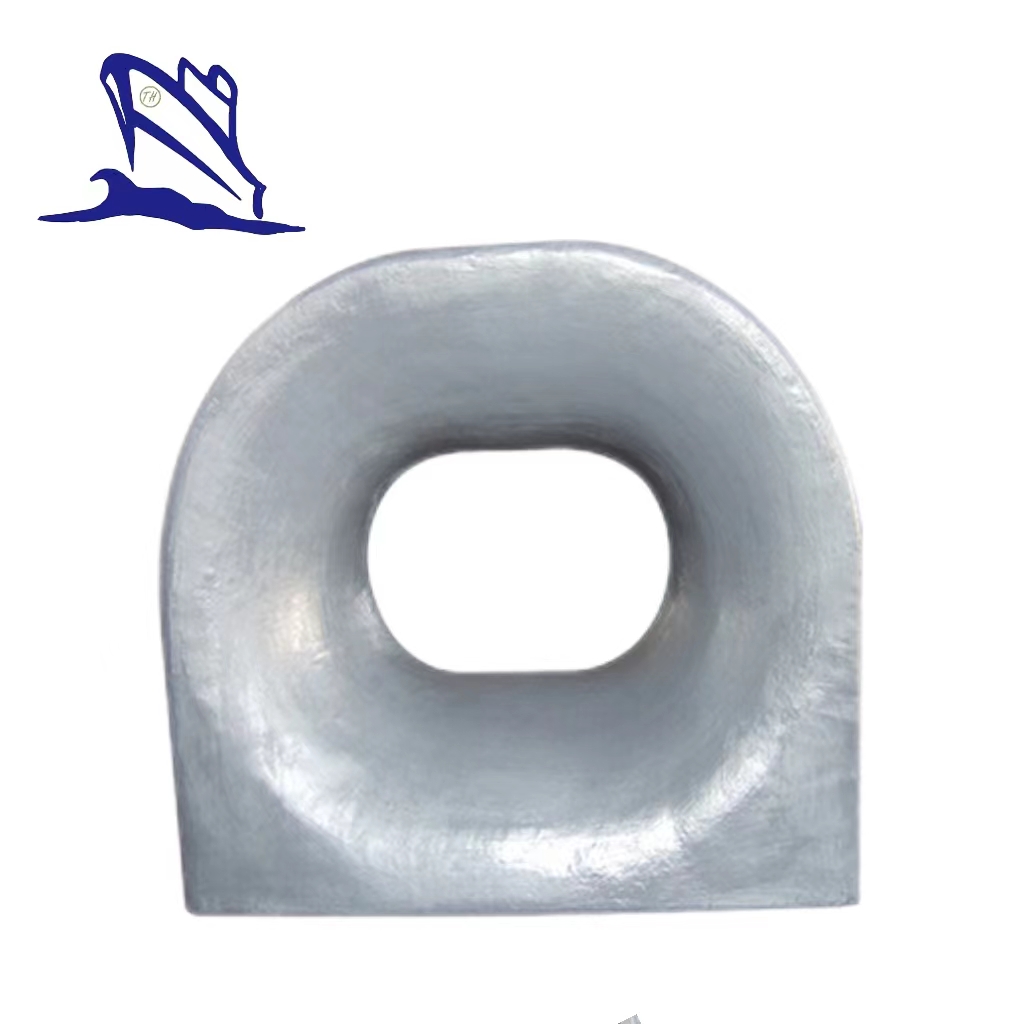

Panama Chocks

Panama chocks are very important mooring equipment. It bears tremendous loads when mooring the vessels. We provide deck mounted Panama chocks (JIS F 2017-1982 type AC,AP),bulwark mounted Panama chocks (JIS F 2017-1982 type BC,BP) and Type U.S. Panama chocks. If you’re interested in our chocks, please feel free to contact us.

Specification :

Model Type: Panama Chock JIS F-2017 Type AP

Material: Cast Steel

Nominal Size:310mm,360mm

Weight: 190kg~207kg

Welded Position: Deck

Standard: JIS F 2017-1982

Certificate: CCS,DNV,ABS,BV,LR,RS,KR

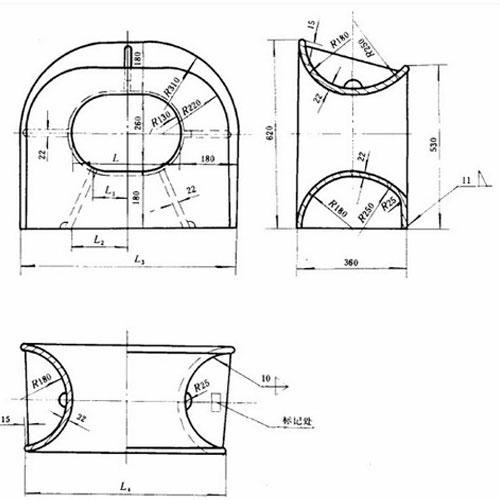

Drawing of Panama Chock JIS F-2017 Type AP:
