MARINE CHAIN STOPPER

JIS F2023 Cast Steel Chain Stopper

JIS F2023 cast steel chain stopper is small size marine anchor chain cable stopper. It is disposed between anchor windlass and hawsepipe. The lever can clamp the anchor chain and prevent chains slip out. When the vessel is mooring, chain stopper transport the pull strength of anchor and chain to the vessel. It reduces the working load and protect the anchor windlass. We can supply all kinds of marine chain stoppers. For more information, please feel free to contact us.

Features of JIS F2023 Cast Steel Chain Stopper

1. Model Type: small size bar type chain stopper;

2. Standard: JIS F 2023-1976;

3. Material: cast steel;

4. Nominal Anchor Chain Diameter: 17 to 36mm;

5. Finish: anti-rust paint;

6. Color: red,black, grey, blue etc.

7. High quality, durable, long life time;

8. Withstand 80% of anchor chain minimum breaking load;

9. Competitive price, short delivery, excellent service;

10. Certificate: CCS,ABS,BV,LR,GL etc.;

11. Can be customized

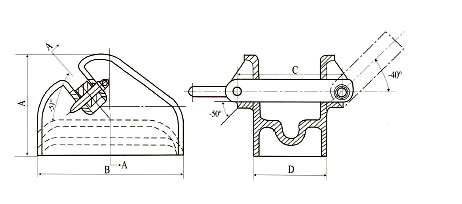

Drawing of Jis F2023 Cast Bar Type Chain Stopper

unit:mm
