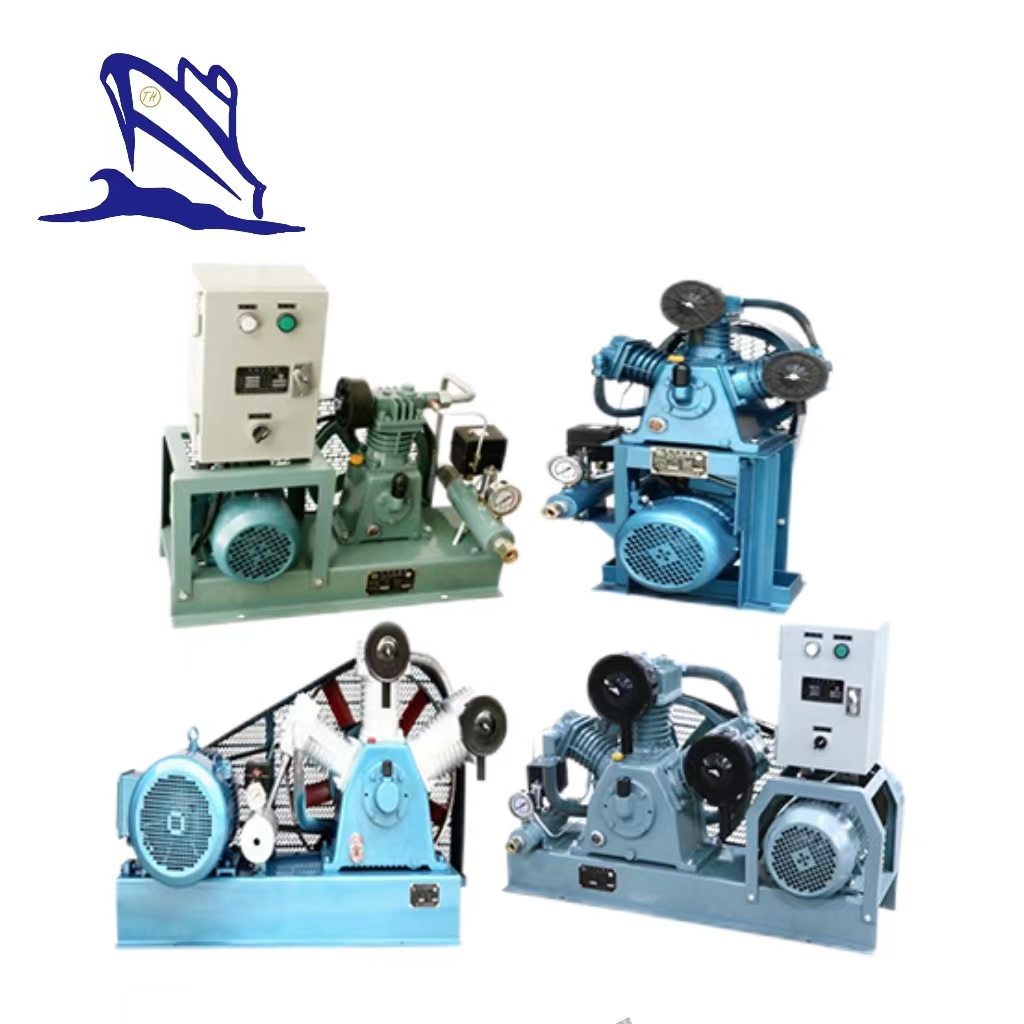

Marine Low Pressure Air-cooled Series Air Compressor with Automatic Control Unit
Marine Low Pressure Air-cooled Series Air Compressor with Automatic Control Unit
The type of Marine Low Pressure Air-cooled Series Air Compressor with Automatic Control Unit is Single-row,V,W and the secondary compression piston.Its displacement capacity is 3.5~60 m3 / h.The rated pressure is 1.0 Mpa.It is suitable for providing air source for the ship whistle, oil and gas stove and auxiliary equipment. The product has a manual or automatic stop, start and unloading relief function.Low energy consumption,low noise and long service life are its features.Meanwhile,it is easy to maintenance.
HI-SEA has high-tech manufacture and considerate service,which will help decrease customers' operation and maintenance costs to reach the goal of high efficiency, reliability,energy-saving and environmental protection. Welcome to contact us directly if you are interested in our products.
Features:
Easy to maintenance
Small size,light weight,simple structure
Low energy consumption,low noise,long service life
The displacement capacity is 3.5 ~ 60 m3 / h;The rated pressure is 1.0 MPa
The product has a manual or automatic stop, start and unloading relief function
It is suitable for providing air source for the ship whistle,oil and gas stove and auxiliary equipment
Main Technical Parameters:
Model | Displacement Capacity（m3/h） | Specified | Rotating | Motor Power | Dimension（L×W×H）mm | Weight（kg） | |
kW | HP | ||||||
CZF—3.5/1 | 3.5 | 1.0 | 810 | 0.75 | 1 | 650×390×580 | 58 |
CVF—6/1 | 6 | 930 | 1.1 | 1.5 | 800×390×630 | 75 | |
CWF—10/1(Vertical type) | 10 | 750 | 1.5 | 2 | 500×400×740 | 85 | |
CWF—10/1 | 10 | 750 | 1.5 | 2 | 900×400×650 | 93 | |
CWF—15/1 | 15 | 1000 | 2.2 | 3 | 100 | ||
CWF—20/1 | 20 | 720 | 3 | 4 | 900×410×665 | 138 | |
CWF—40/1 | 40 | 780 | 5.5 | 7.5 | 1220×560×810 | 260 | |
CWF—60/1 | 60 | 720 | 11 | 15 | 1340×660×960 | 360 | |
(Note:More marine air compressors can be offered according to your special requests.)
