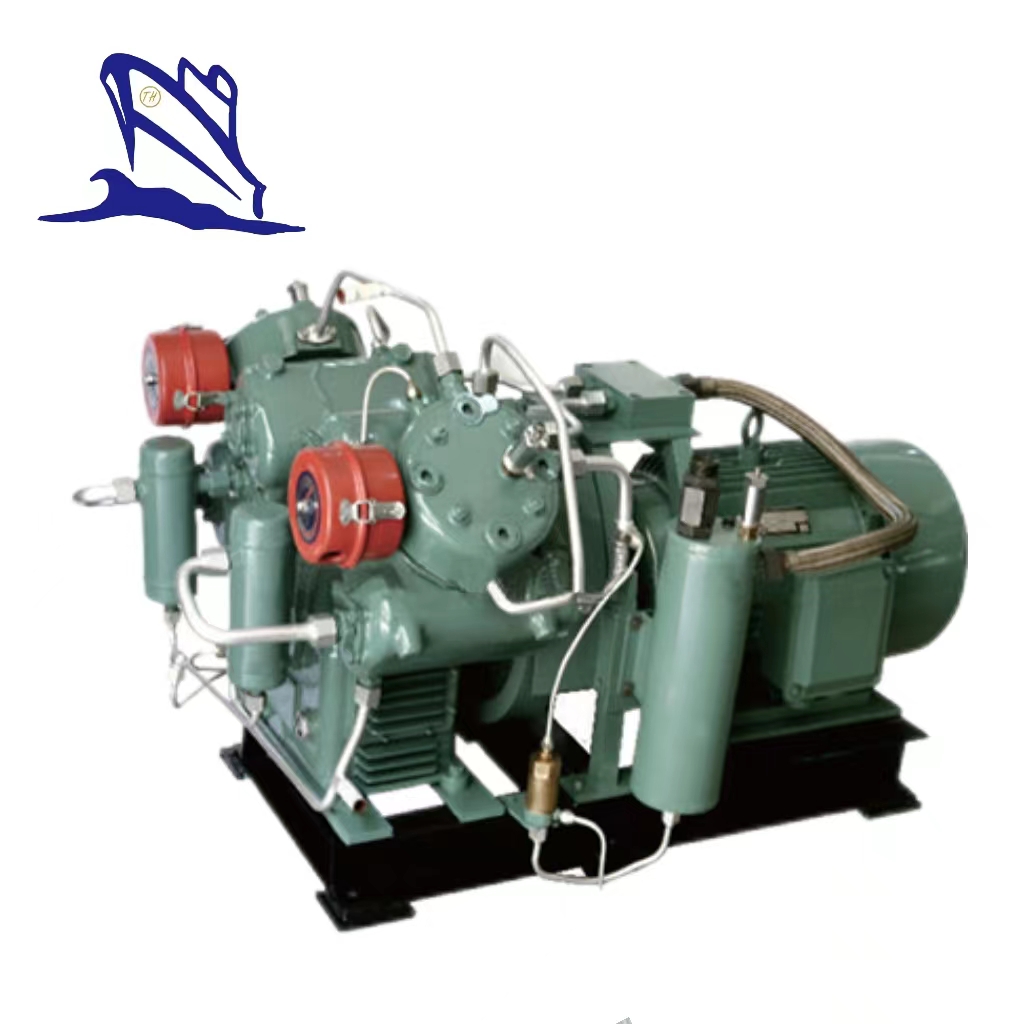

Marine Double-row Medium Pressure Water-cooled Air Compressor
Marine Double-row Medium Pressure Water-cooled Air Compressor
The displacement capacity is 30~50 m3/h.The rated pressure is 3.0 Mpa. It is automatic control unit. CV series marine water-cooled air compressor is mainly used for starting the main engine of ships and various medium-sized diesel engines.Its type is V-type,double-row,water-cooled and piston type.The drive way is direct connection drive type.
HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.
Models are available:CV-50/30,CV-40/30,CV-30/30
Product Features:
Low exhaust temperature,small volume,reliable operation
Low noise,compact structure,high efficiency,light weight
These functions as follow are available according to clients’ requests:
1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose
Main Technical Parameter:
Model | Displacement Capacity | Specified | Rotating | Motor Power | Dimension（L×W×H）mm | Weight（kg） | ||
m3/h | m3/ min | kW | HP | |||||
CV-30/30 (Direct Connection) | 30 | 0.5 | 3.0 | 720 | 7.5 | 10 | 1230×730×690 | 330 |
CV-40/30 (Direct Connection) | 40 | 0.67 | 870 | 11 | 15 | 1230×730×690 | 340 | |
CV-50/30 (Direct Connection) | 50 | 0.83 | 970 | 11 | 15 | 1230×730×690 | 340 | |
(Note:More marine water-cooled air compressors can be offered according to your special requests.)
