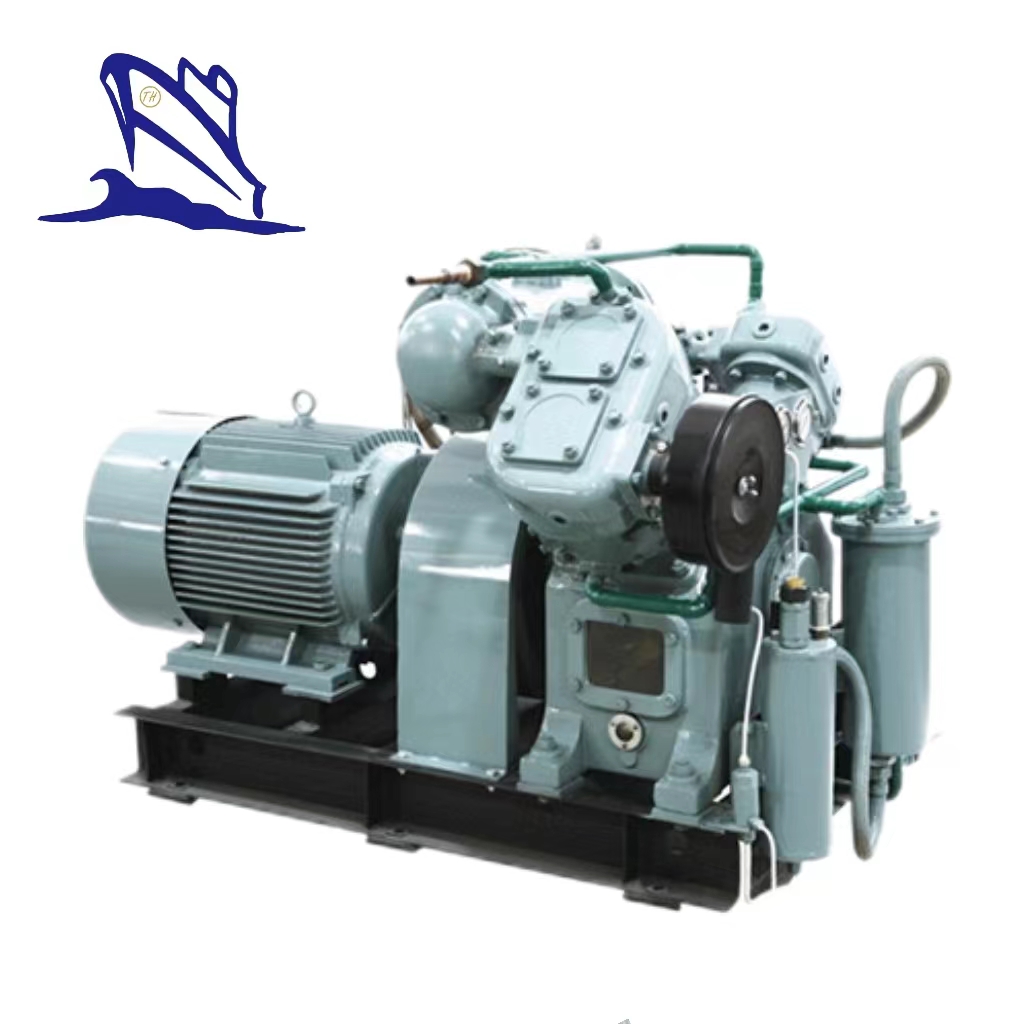

Marine V-type Medium Pressure Water-cooled Air Compressor
Marine V-type Medium Pressure Water-cooled Air Compressor
CV-120/30 and CV-90/30 marine water-cooled air compressor is mainly used for starting the main engine of ships and various medium-sized diesel engines.Its type is V-type,double-row,water-cooled and piston type.The drive way is direct connection drive type. It is automatic control unit. The displacement capacity is 90~120 m3/h.
HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the goal of high efficiency,reliability,energy-saving and environmental protection.If you have any question,please feel free to contact us directly.
Models are available:CV-120/30, CV-90/30
Product Features:
Reliable operation
Low noise
High efficiency
Low exhaust temperature
These functions as follow are available according to clients’ requests:
1. The main and standby machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose
Main Technical Parameters:
Model | Displacement Capacity | Specified | Rotating | Motor Power | Dimension（L×W×H）mm | Weight（kg） | ||
m3/h | m3/ min | kW | HP | |||||
CV-90/30 (Direct Connection) | 90 | 1.5 | 3.0 | 730 | 22 | 30 | 1600×1010×1050 | 900 |
CV-120/30 (Direct Connection) | 120 | 2 | 975 | 30 | 40 | 1600×1010×1050 | 1000 | |
(Note:More marine water-cooled air compressors can be offered according to your special requests.)
