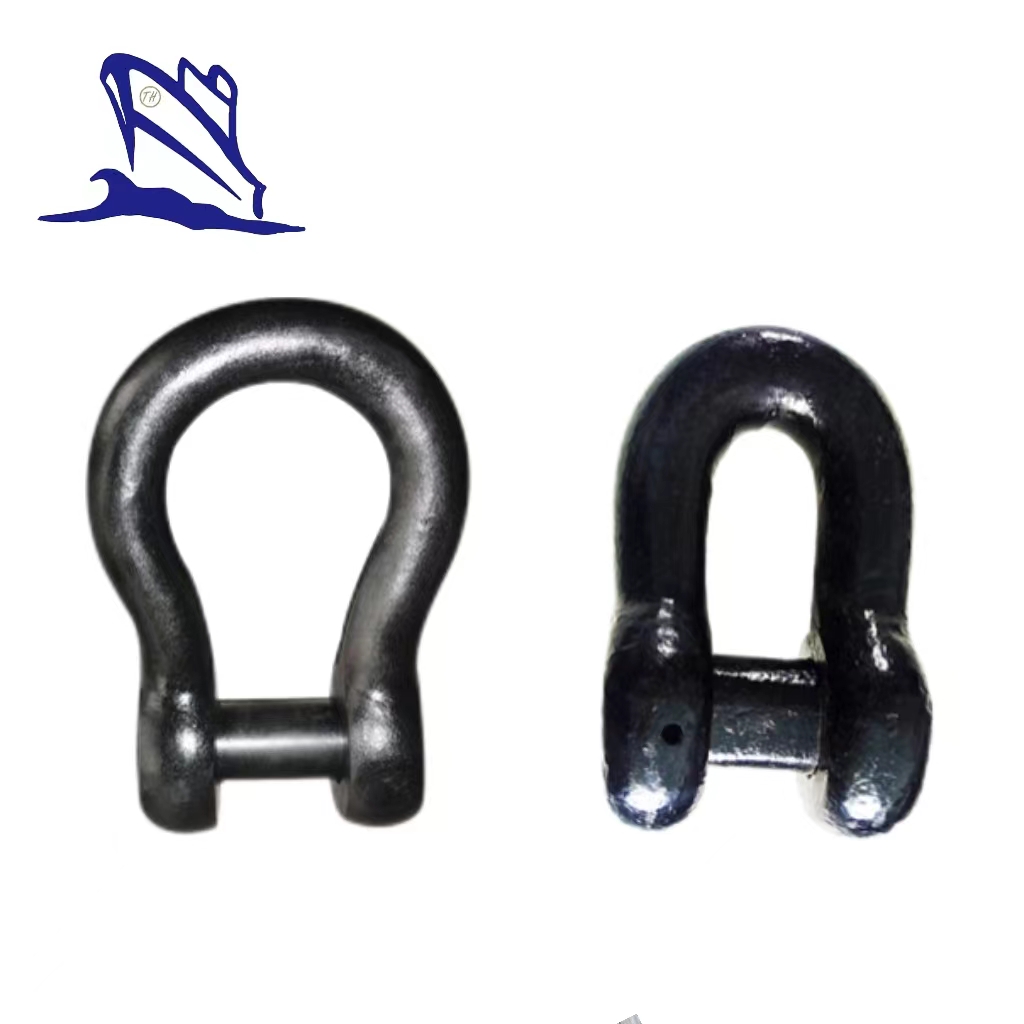

Anchor Chain Joining Shackle
Anchor Chain Joining Shackle
Anchor chain joining shackle belongs to one part of anchor chain accessories, which is used to connect eack links of anchor chains. Joining shackle is applicable to both grade 2 and grade 3 anchor chains whose diameters is from 14mm to 162mm. It is well drop forged shackle for mooring and anchor chains.
We supply various types and sizes of marine shackles. For more information about our products, please feel free to contact us via an e-mail or a phone call. We’re sincere to establish cooperation relationship with you.
Specification
Model Type: Joining Shackle JS
Application: Marine Industry for Mooring
Grade Classification: U2/U3
Material: Forged Steel
Nominal Diameter:14mm to 162mm
Proof Load:82KN to 11180KN
Breaking Load:116KN to 15980KN
Surface Treatment: Hot Dip Glavanized & Electrogalvanized
Certificate: CCS, BV, LR,NK,DNV,GL,RINA,KR etc.
| Diameter(mm) | Length(mm) | Width(mm) | Proof | Breaking |
| 14 | 99 | 56 | 82 | 116 |
| 17.5 | 124 | 70 | 127 | 17 |
| 19 | 135 | 76 | 150 | 211 |
| 20.5 | 146 | 82 | 175 | 244 |
| 16 | 114 | 64 | 107 | 150 |
| 22 | 156 | 88 | 200 | 280 |
| 24 | 170 | 96 | 237 | 332 |
| 26 | 185 | 104 | 278 | 389 |
| 28 | 199 | 112 | 321 | 449 |
| 30 | 213 | 120 | 368 | 514 |
| 32 | 227 | 128 | 417 | 583 |
| 34 | 241 | 136 | 468 | 655 |
| 36 | 256 | 144 | 523 | 732 |
| 38 | 271 | 152 | 581 | 812 |
| 40 | 284 | 160 | 640 | 896 |
| 42 | 300 | 168 | 640 | 896 |
| 44 | 312 | 176 | 769 | 1080 |
| 46 | 327 | 184 | 837 | 1170 |
| 48 | 341 | 192 | 908 | 1270 |
| 50 | 355 | 200 | 981 | 1370 |
| 52 | 369 | 208 | 1060 | 1480 |
| 54 | 383 | 216 | 1140 | 1590 |
| 56 | 398 | 224 | 1220 | 1710 |
| 58 | 412 | 232 | 1290 | 1810 |
| 60 | 426 | 240 | 1380 | 1940 |
| 62 | 440 | 248 | 1470 | 2060 |
| 64 | 454 | 256 | 1560 | 2190 |
| 66 | 469 | 264 | 1660 | 2310 |
| 62 | 440 | 248 | 2060 | 2940 |
| 68 | 483 | 272 | 1750 | 2450 |
| 70 | 497 | 280 | 1840 | 2580 |
| 73 | 518 | 292 | 1990 | 2780 |
| 76 | 540 | 304 | 2150 | 3010 |
| 78 | 554 | 312 | 2260 | 3160 |
| 81 | 575 | 324 | 2410 | 3380 |
| 84 | 596 | 336 | 2580 | 3610 |
| 87 | 618 | 348 | 2750 | 3850 |
| 90 | 639 | 360 | 2920 | 4090 |
| 92 | 653 | 368 | 3040 | 4260 |
| 95 | 675 | 380 | 3230 | 4510 |
| 97 | 689 | 388 | 3340 | 4680 |
| 100 | 710 | 400 | 3530 | 4940 |
| 102 | 724 | 408 | 3660 | 5120 |
| 105 | 746 | 420 | 3850 | 5390 |
| 107 | 760 | 428 | 3980 | 5570 |
| 111 | 788 | 444 | 4250 | 5940 |
| 114 | 809 | 456 | 4440 | 6230 |
| 117 | 831 | 468 | 4650 | 6510 |
| 120 | 852 | 480 | 4850 | 6810 |
| 122 | 866 | 488 | 5000 | 7000 |
| 124 | 880 | 496 | 5140 | 7200 |
| 127 | 902 | 508 | 5350 | 7490 |
| 130 | 923 | 520 | 5570 | 7800 |
| 132 | 937 | 528 | 5720 | 8000 |
| 137 | 973 | 548 | 6080 | 8510 |
| 142 | 1008 | 568 | 6450 | 9030 |
| 147 | 1044 | 588 | 6840 | 9560 |
| 152 | 1079 | 608 | 7220 | 10100 |
| 157 | 1115 | 628 | 7600 | 10640 |
| 162 | 1150 | 648 | 7990 | 11180 |
