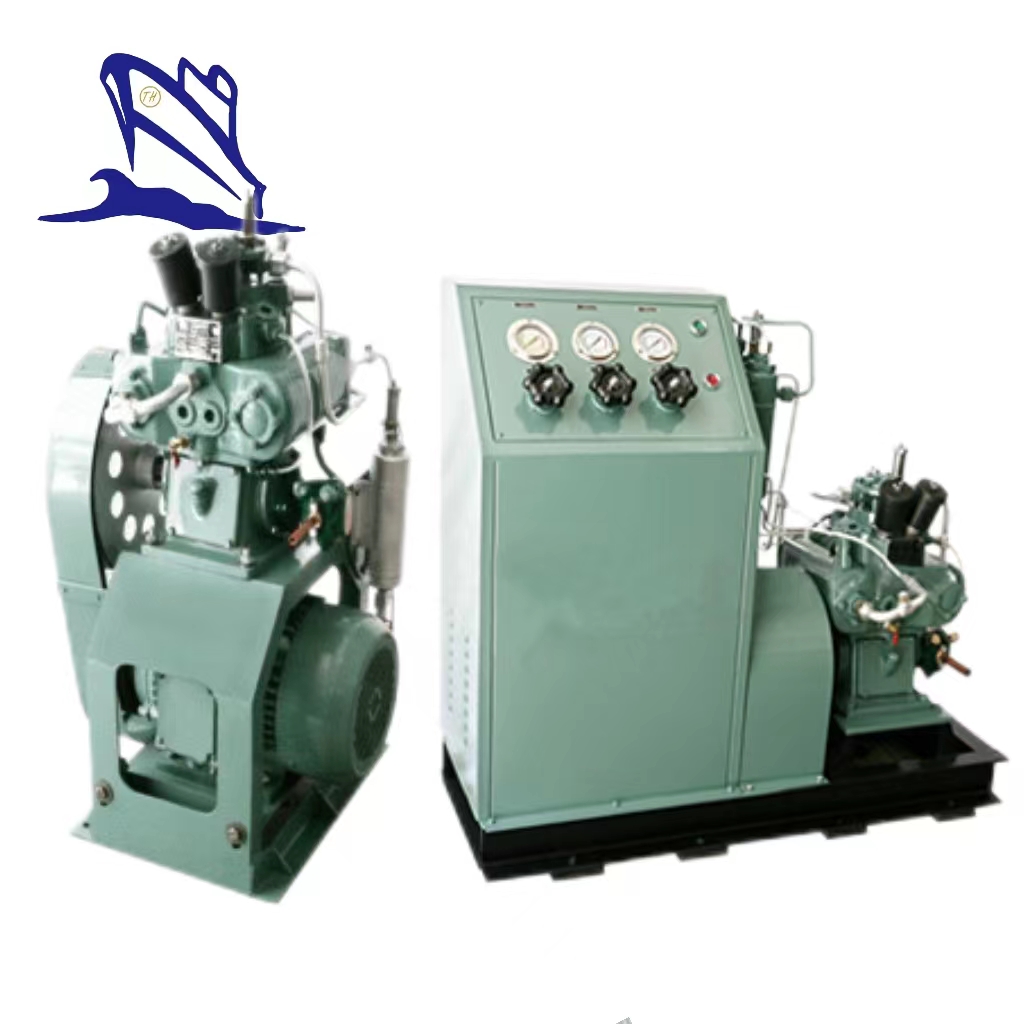

Marine High Pressure Water-cooled Series Air Compressor
Marine High Pressure Series Water-cooled Air Compressor
Marine high pressure water-cooled air compressor has characteristics of a compact structure,small size and volume,light weight,high pressure and easy operation,etc.The marine high pressure water-cooled air compressor can be converted into a automatic control unit form according to the requirements of customers.
Marine high pressure water-cooled air compressor is specially used for ships.The displacement capacity of this marine air compressor is 0.27~0.43 m3/min.The rated pressure is 5.9~19.6 MPa.Its type is single-row,water-cooled,three-stage differential piston type.There are belt drive or elastic coupling direct connection transmission type.
HI-SEA high-tech manufacture and excellent service will help minimize customers' operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.
Main Technical Parameters:
| Displacement Capacity | Specified Pressure | Rotating Speed | Motor Power | Dimension（L×W×H） | Weight | |
m3/ min | MPa | r/min | kW | HP | mm | kg | |
1-0.27/150(Horizontal) | 0.27 | 14.7 | 970 | 7.5 | 10 | 1100×500×950 | 300 |
1-0.27/150(Vertical) | 0.27 | 14.7 | 1000 | 7.5 | 10 | 555×585×940 | 210 |
CZ-0.42/150(Horizontal) | 0.42 | 14.7 | 1460 | 11 | 15 | 1100×500×950 | 330 |
CZ-0.42/150(Vertical) | 0.42 | 14.7 | 1500 | 11 | 15 | 620×650×1000 | 270 |
CZ-0.43/60(Horizontal) | 0.43 | 6.0 | 1460 | 11 | 15 | 1100×500×950 | 330 |
CZ-0.43/60(Vertical) | 0.43 | 6.0 | 1500 | 11 | 15 | 620×650×1000 | 270 |
CZ-0.41/200(Horizontal) | 0.41 | 19.6 | 1460 | 11 | 15 | 1100×520×950 | 350 |
