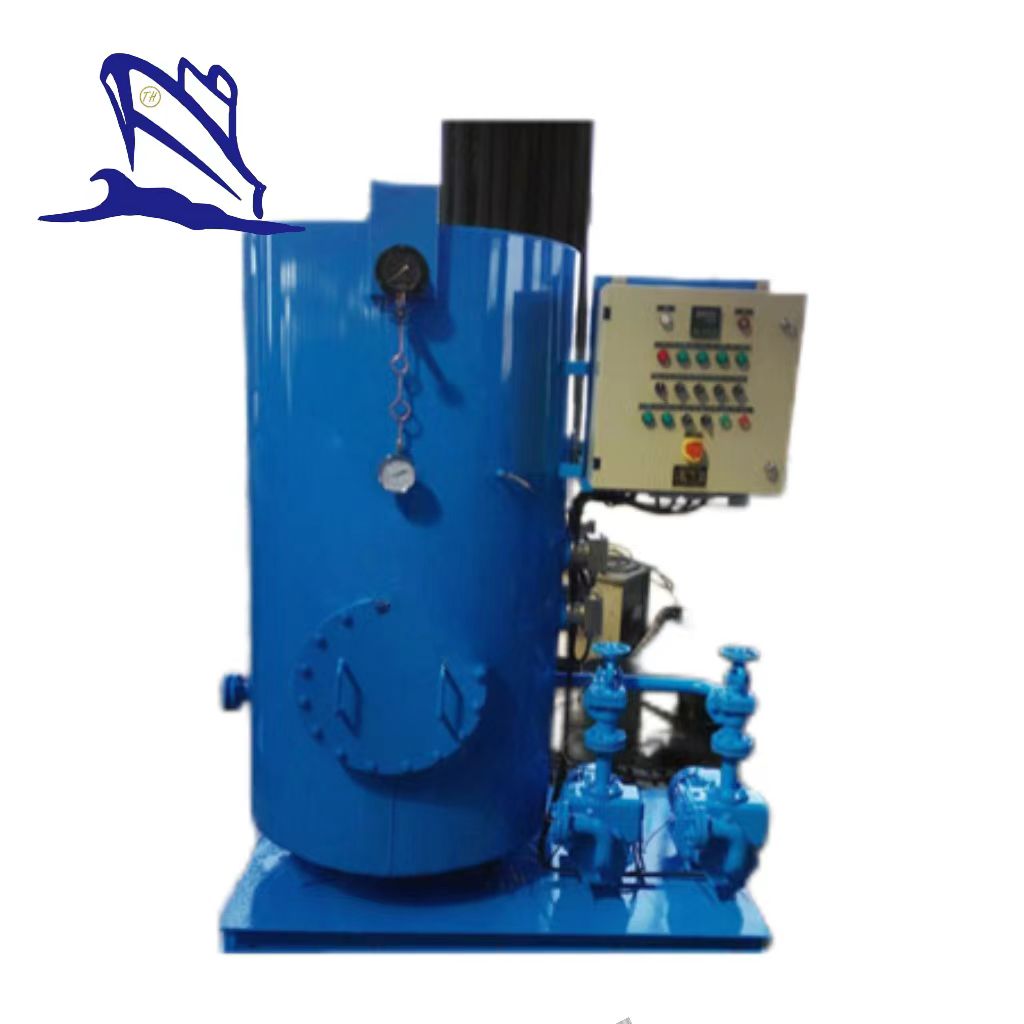

MARINE CALORIFIER

1. Operational principle

1). The hot water tank water inlet meets the pressure water tank, (approximately 15℃) fills the pressure water tank's in fresh water heats
up the cabinet, hot water tank heater fresh water heating to 65℃, for the entire ship use.

2). The water used system backwater pipe joint hot water tank water pump water inlet, the water pump regularly the water pump regeneration water tank which cools gradually the water used system, carries on the heating.

2. Technical Specification

1). Main parameter
Volume: 1.0m³ ;
Design pressure: 0.7MPa;
Working pressure: 0.5MPa;
Electric heating power: 2*12+2*18kw;
Power source: 3φ 480V 60Hz (optional).
2). Main body structural testing: 1.05MPa;
Whole pressure testing: 0.875MPa without leakage.
3). The superficial stain removal, the ontology of galvanized processing.
4). With ANSI B 16.5 RF#150 flange.
