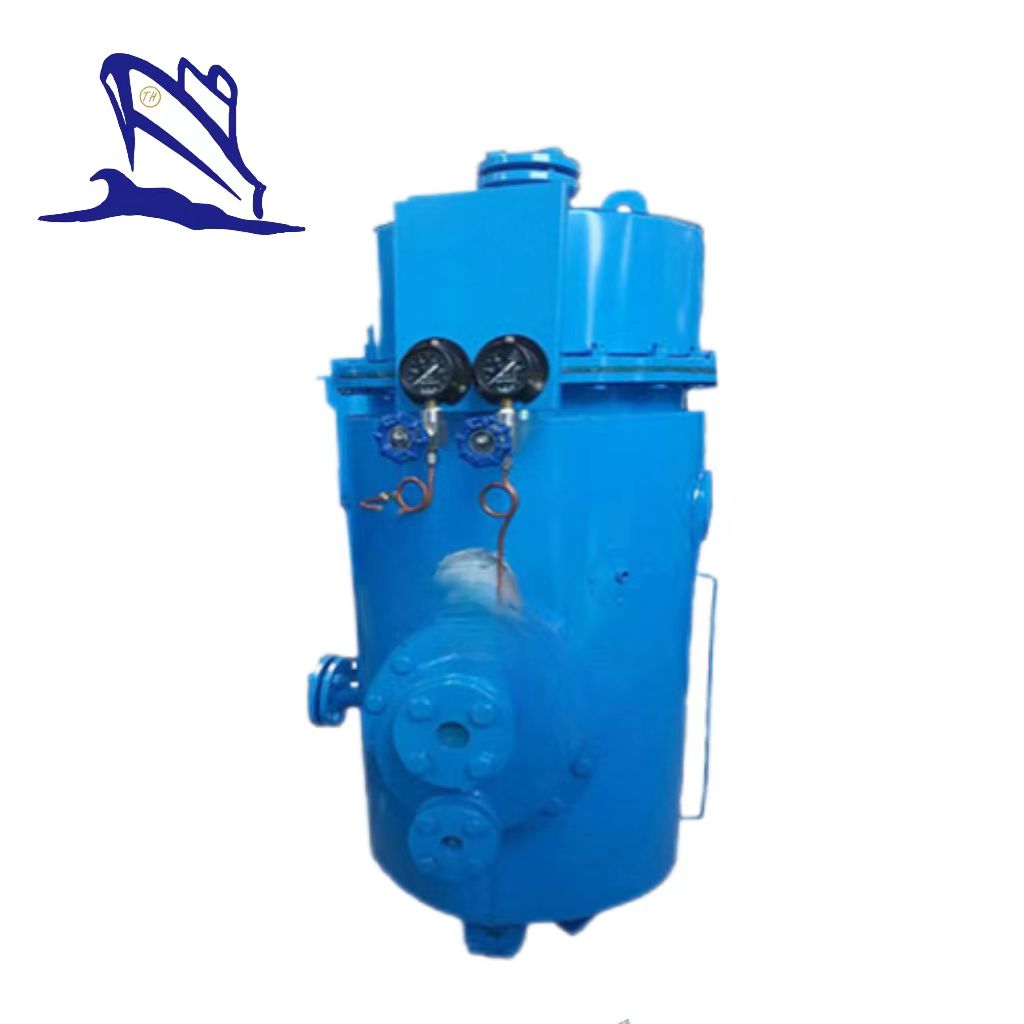

ZRG-0.12 Steam Heating Calorifier
1. ZRG-0.12 Steam Heating Calorifier Engineering Requirements
1). Design pressure: 0.7MPa
2). Working pressure: 0.6MPa
3). Test Pressure of Sealing: 0.8MPa
4). Test Pressure of Strength: 1.0MPa
5). Various appendices physical
6). location scene decides
7). Material of main parts:Stainlness

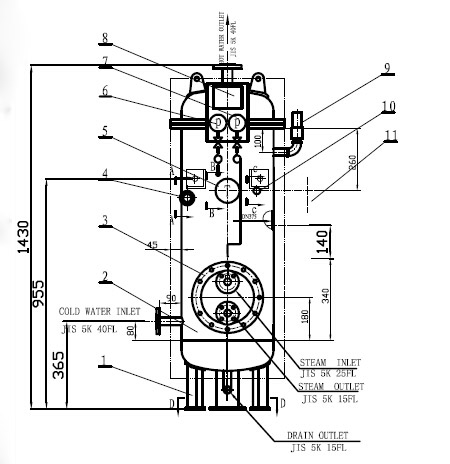

2. ZRG-0.12 Steam Heating Calorifier General Drawing
| NO. | Code | Name | Material | Qty. | Remarks |
| 1 | LEG | Q235A | 1 | ||
| 2 | Body | SS304 | 1 | ||
| 3 | STEAM HEATER | Assembly | 1 | ||
| 4 | TEMPERTURE CONTROL VALVE | Assembly | 1 | ||
| 5 | WSS-401 | TEMPERTURE GUAGE | Assembly | 1 | |
| 6 | PRESSURE GUAGE(WATER) | Assembly | 1 | ||
| 7 | PRESSURE GUAGE(STEAM) | Assembly | 1 | ||
| 8 | NAMEPLATE | SS304 | 1 | ||
| 9 | A21W-16P | RELIEF VALVE | Assembly | 1 | |
| 10 | THERMOSTAT | Assembly | 1 | ||
| 11 | UQK-01-C | LIQUID LEVEL CONTROLLER | Assembly | 1 |
