MARINE HYDROPHORE

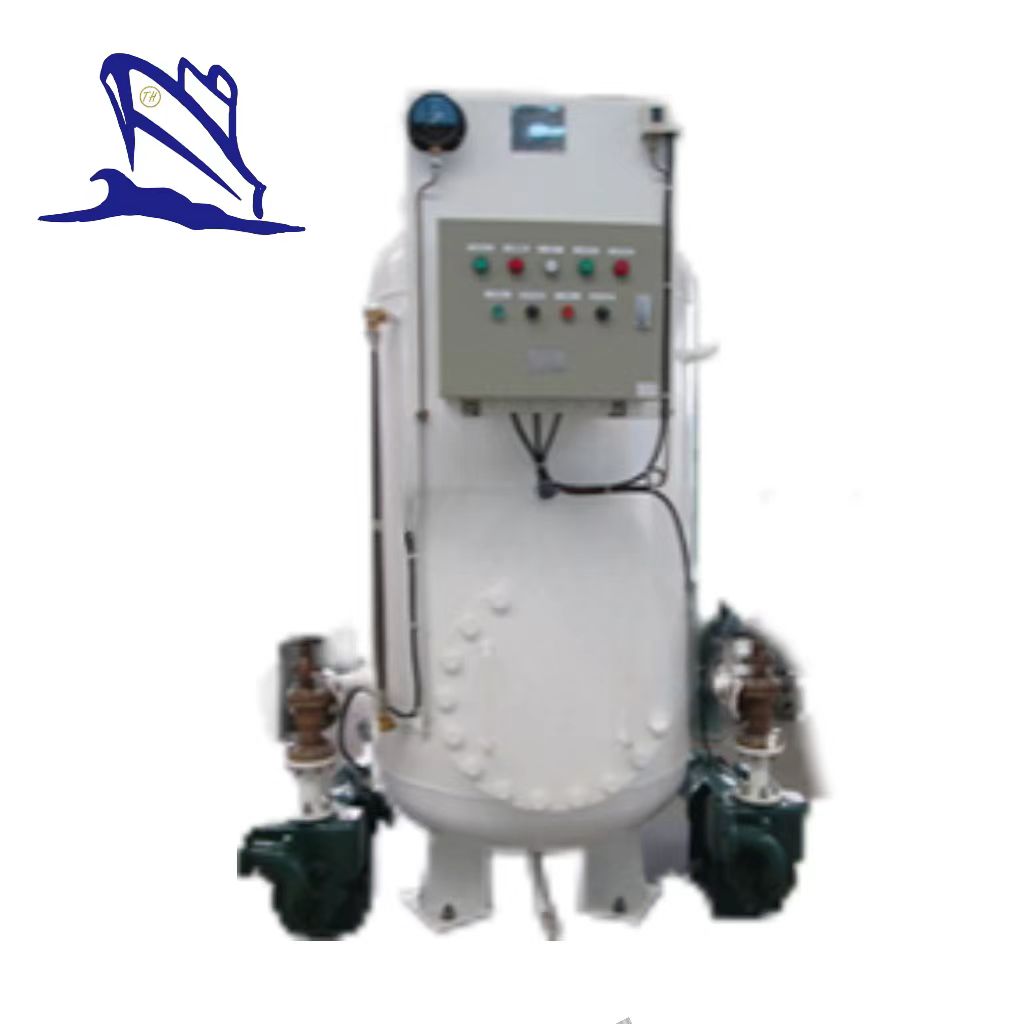

LR class Approved SS304 Hydrophore




This hydrophore can be used as marine fresh water tank or washing water tank, it can be used for suppling fresh warter or washing water for all presons of the ship. It is also can be formed a complete set with air compressor and used for suppling fresh water for tall building.

Technical Parameters:

Classfiction

LR Class

Hydraulic Test

0.6Mpa

Standard

CB455-91

Air Tightness Test

0.4Mpa

Volume

1.0 M³

Response Pressure of the Safety Valve

0.42Mpa

Design Temp.

95℃

Main Material

SS304

Working Pressure

0.4 Mpa

Surface Treatment

Sandblast Sa2.5

Working Temp.

50℃

Pump Model

1.5CWX-2

Working Medium

Water

Delivery Time

60 days
