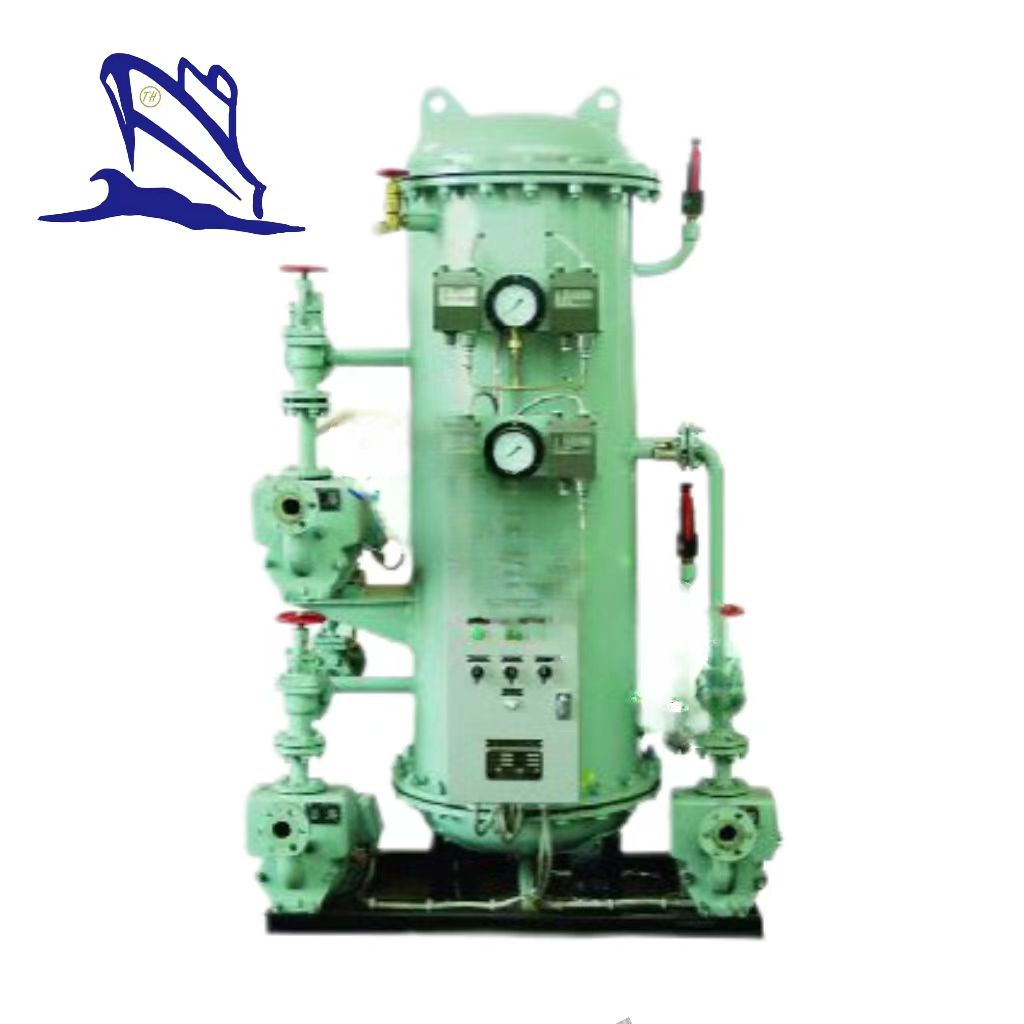

Marine Fresh-water & Sea-water Combined Hydrophore Tank System
1.The marine Fresh-water & Sea-water Combined Hydrophore tank system is our new product, which combined fresh-water and sea water in one system. The upper one is sea-water tank, the lower one is fresh-water tank.
2. The new design hydrophore system will reduce much cost and room, but more covenient.
3. The material also can be carbon steel and stainless steel.
4. IMO approvaled any class certificate is available.
5. Technical Models:
Model | Volume(m3) | Design Pressure (Mpa) | Working Pressure (Mpa) | Water Pump Model | Motor Power (kw) | Capacity (m3/h) | Pressure (Mpa) |
ZYG-0.2 | 0.2 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
ZYG-0.3 | 0.3 | ||||||
ZYG-0.5 | 0.5 | ||||||
ZYG-1.0 | 1 | ||||||
ZYG-1.5 | 1.5 | ||||||
ZYG-2.0 | 2 | ||||||
ZYG-2.5 | 2.5 |
