MARINE HYDROPHORE

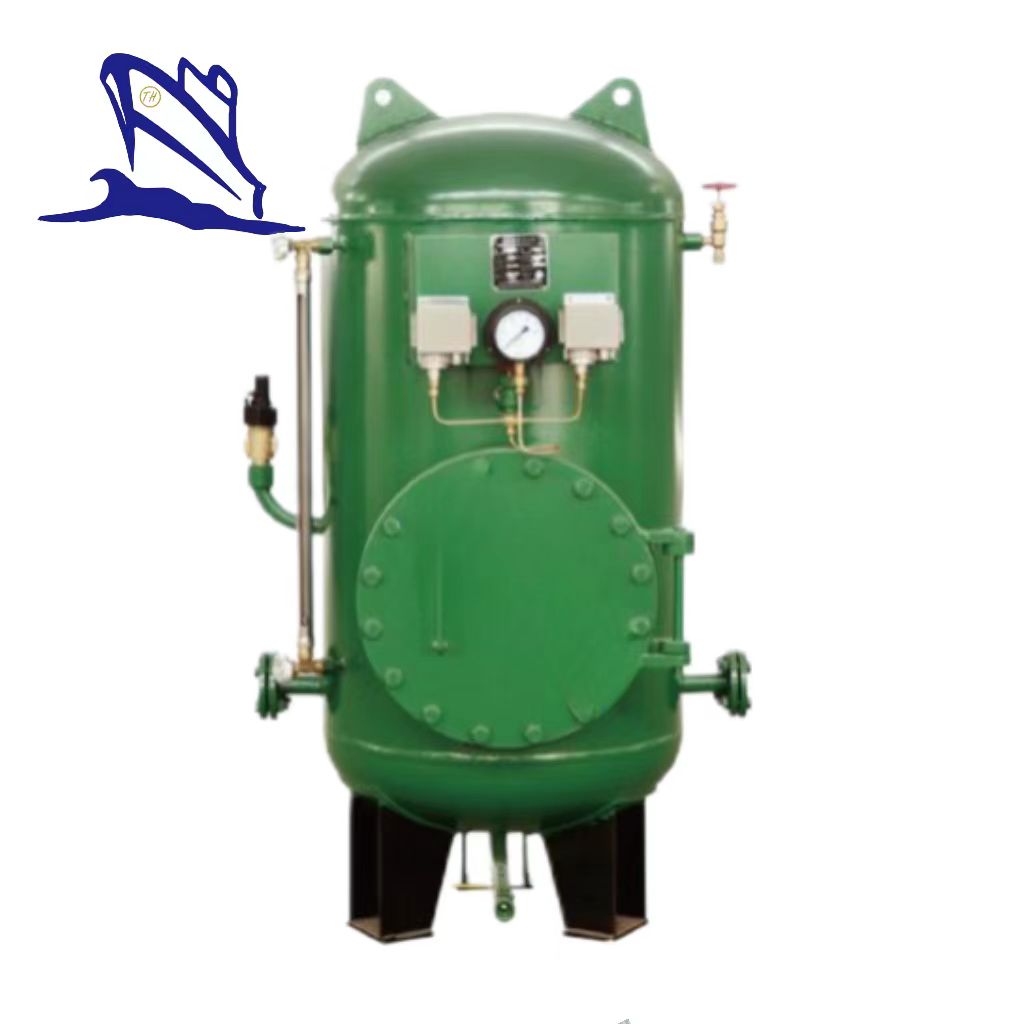

YLG-0.12 Vertical Hydrophore Tank




1.Main technical requirements:

Volume: 0.12m3

Working pressure: 0.6MPa

Design pressure: 0.7MPa

Strength test pressure: 1.05MPa

Air tightness test pressure: 0.875MPa

Open pressure of safety valve: 0.63MPa

Working temperature: 0~45℃

Design temperature: 50℃

2.Interface:

Model

Water inlet

Water discharging outlet

inflation inlet

Discharging outlet

Safety valve

YLG-0.12

DN25

DN25

DN10

G3/4″

ZG1/2″
