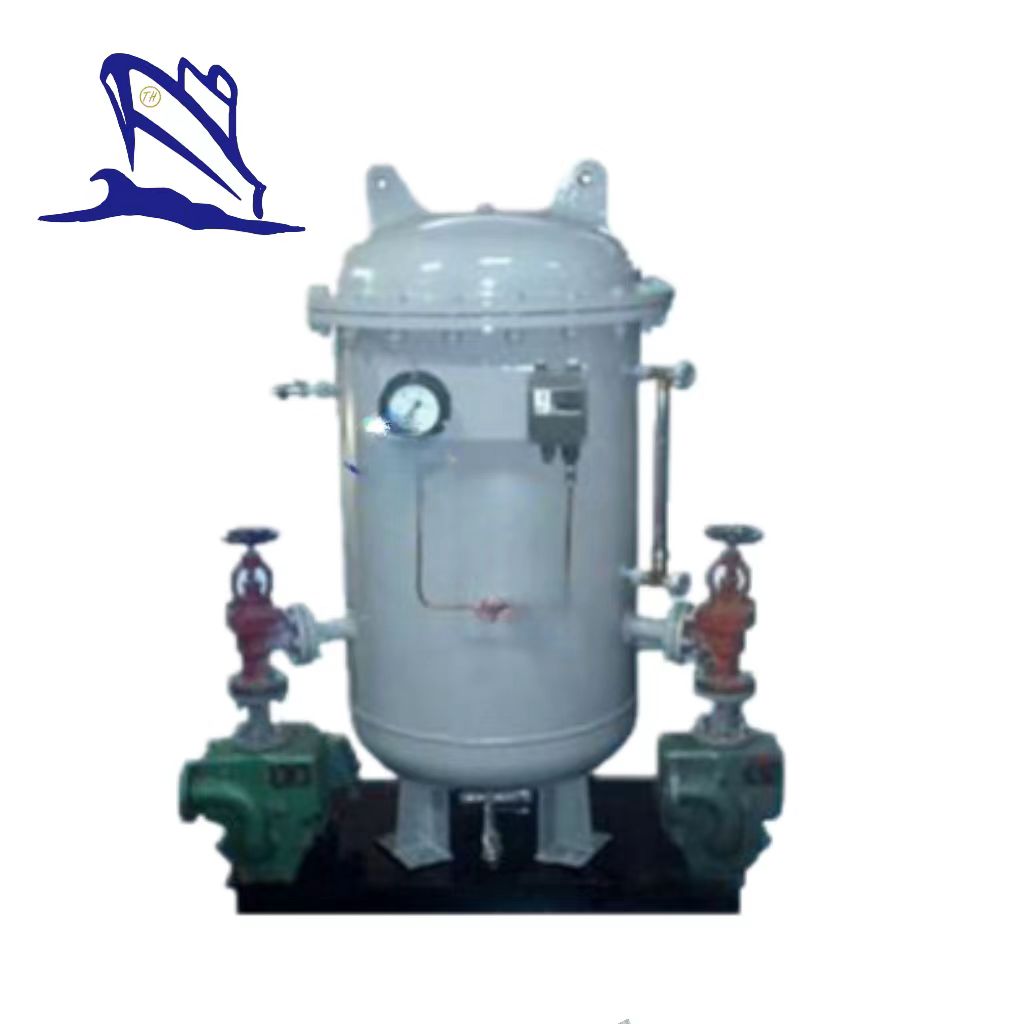

ZYG-0.2 Marine Pressure Water Tank
1.Technical Requirements:
1). Flange Standard：CB/T46-1999 PN1.0;
2). The shell cover thickness including the forming thinning;
3). The system including security settings;
4). Pipes and support same as the drawings.
Design Datas:
Working Pressure | 0.4Mpa |
Design Pressure | 0.44Mpa |
Working Temp. | 0~45℃ |
Design Temp. | 50℃ |
Main Materials | CCS-B/SS304/SS316 |
corrosion allowance | 0.75mm |
welded joint coefficient | 0.6 |
Capacity | 0.2m³ |
The relief valve pressure jump | 0.42MPa |
G.W. | 520 Kgs (with standard export wooden case) |
N.W. | 320 Kgs |
Pumps Mian Parameters:
| Capacity | 3 m³/hr |
| Head | 40 meters |
| Speed | 2900 RPM |
| Power | 2.2 Kw |
