MARINE HYDROPHORE

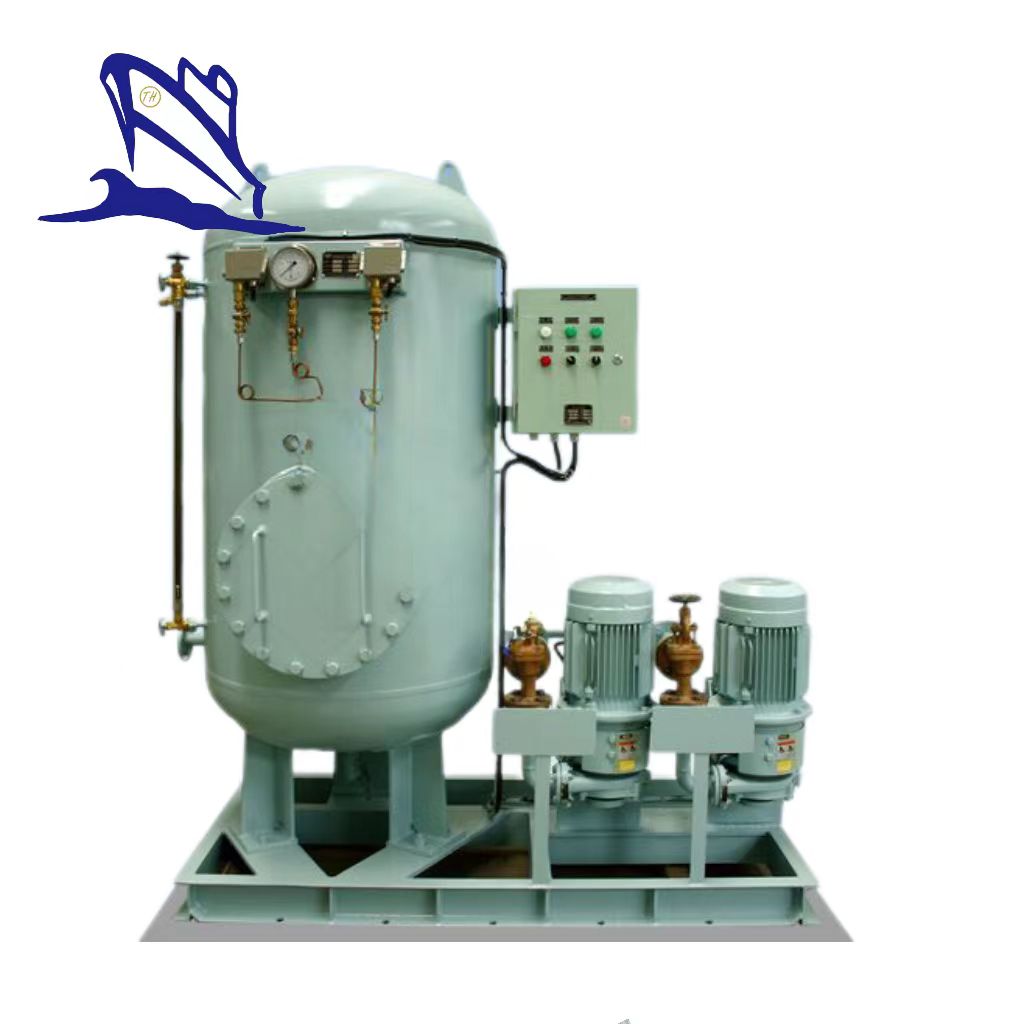

Oil Platform Hydrophore Tank





* The hydrophore tank can be used for oil platform, supplying fresh water for living and cleaning. Sea water also.

* For oil platform, the pumps and electric control panel of the hydrophore tank must be anti-explosion type. The anti-explosion grade and protection grade are customized as your require.

* Our oil platform have been widely used for China Sinopec and Sinopec company. Also the navy vessels.

* Besides, the hydrophore tank materials can be carbon steel, also stainless steel and bronze.

The regular models as below showing:

Model

ZYG-

0.12

0.2

0.3

0.5

1.0

1.5

2.0

Volume（m3）

0.12

0.2

0.3

0.5

1.0

1.5

2.0

Working pressure(MPa)

0.4

Design pressure （MPa）

0.44

Test pressure （MPa）

0.66

Take-off pressure of safety valve（MPa）

0.42

Working temperature(℃)

0~45

Design temperature(℃)

50

Water

pump

Model

1.5CWX-1.5/1.5A

1.5CWX-2/2A

1.5CWX-3/3A

Flow rate（m3/h）

3

6.5

10

Pumping head (m)

40

40

40

Power(kW)

2.2

3

4
