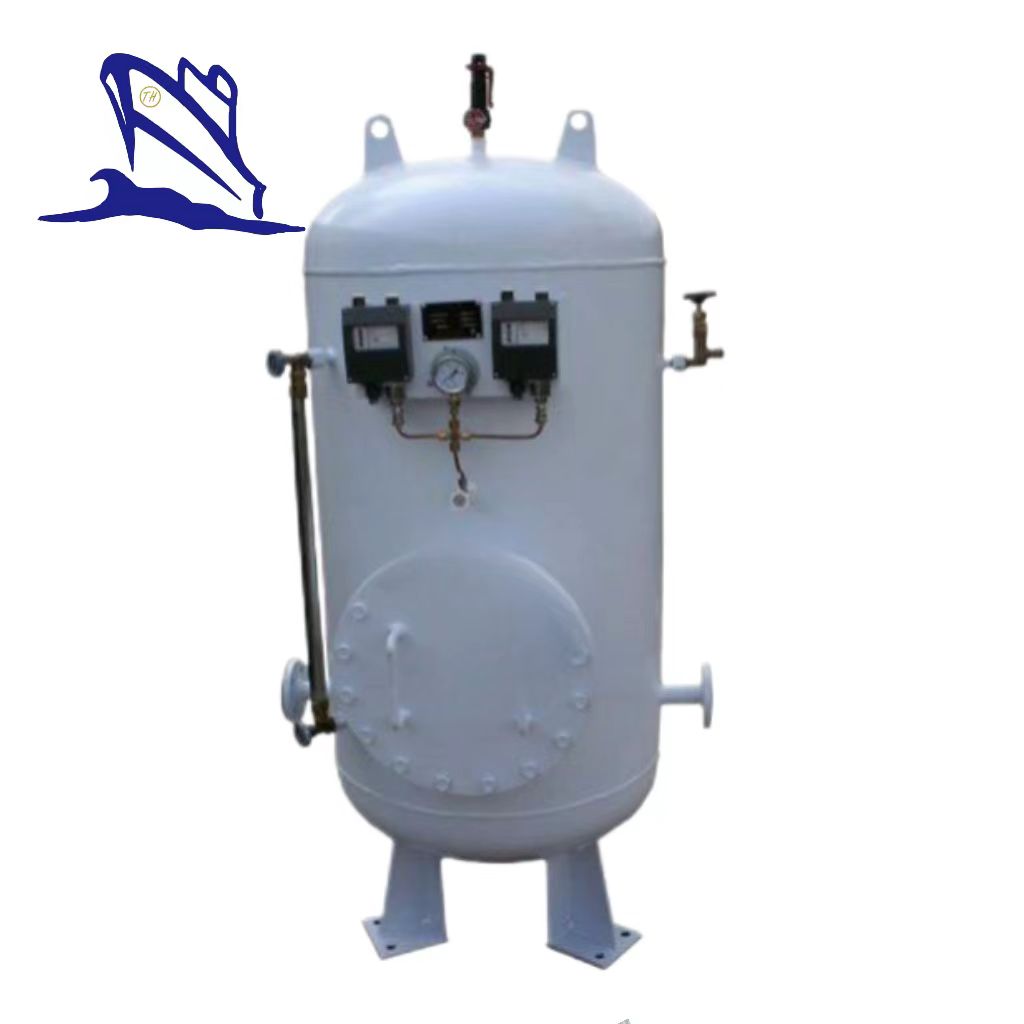

YLG-3.0 Hydrophore Tank
1.Technical Requirements:
1). Flange Standard：CB/T46-1999 PN1.0;
2). The shell cover thickness including the forming thinning;
3). The system including security settings;
4). Pipes and support same as the drawings.
Mark | Name | Size | Standard |
a | relief outlet | DN32 | |
b | Water Inlet | DN50 | CB/T46-1999 PN1.0 |
c | Compressor Air Inlet | DN10 | CB*53-80 |
d | Water Outlet | DN50 | CB/T46-1999 PN1.0 |
Design Datas:
Working Pressure | 0.6Mpa |
Design Pressure | 0.7Mpa |
Working Temp. | 0~45℃ |
Design Temp. | 50℃ |
Main Materials | CCS-B/SS304/SS316 |
corrosion allowance | 0.75mm |
welded joint coefficient | 0.6 |
Capacity | 3.0m³ |
The relief valve pressure jump | 0.63MPa |
G.W. | 865 Kgs (with standard export wooden case) |
N.W. | 775 Kgs |
