MARINE HYDROPHORE

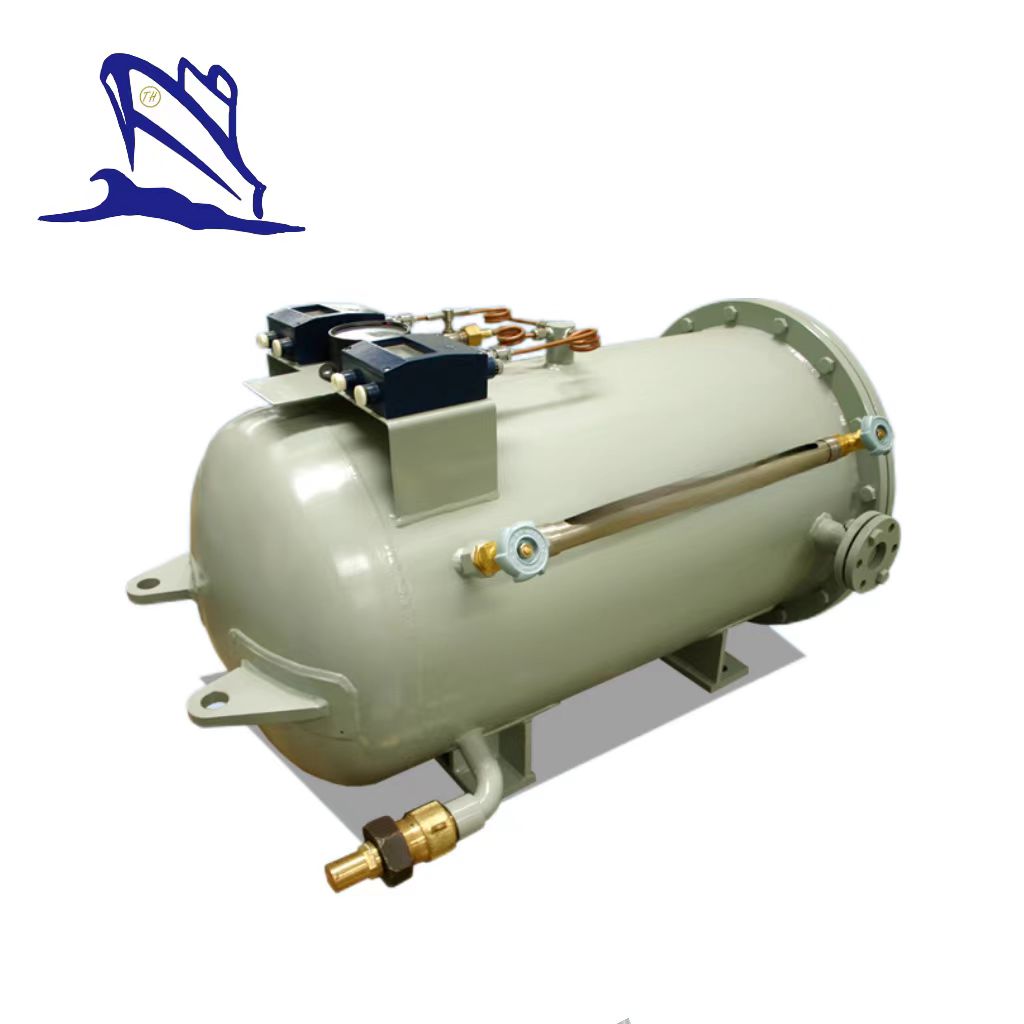

Marine Pressure Water Tank

The marine pressure water tank usually be upright vertical type, also can be horizontal type.

The material you can choose common stainless steel, you also can choose stainless steel 304 or 316.

There can with one pump, two pumps, or without pump.

The capacity can be 0.12m3 to 3m3.

CCS, EC, GL, BV, ABS, RL, NK, USCG class certifiate for you choose.

Model	Capacity(m3)	Working pressure (MPa)	Design pressure(MPa)	Body Material	Vavel Material	Pump	Class	Delivery Time (day)
ZYG-0.12	0.12	0.4-0.6	0.44-0.66	Carbon Steel, Stainless Steel	bronze and stainless steel	380-440V, 50-60HZ	CCS, EC, GL, BV, LR, ABS, USCG, etc.	25-60
ZYG-0.2	0.20
ZYG-0.3	0.30
ZYG-0.5	0.50
ZYG-1.0	1.00
ZYG-2.0	2.00
We also accept customize as your requires.
