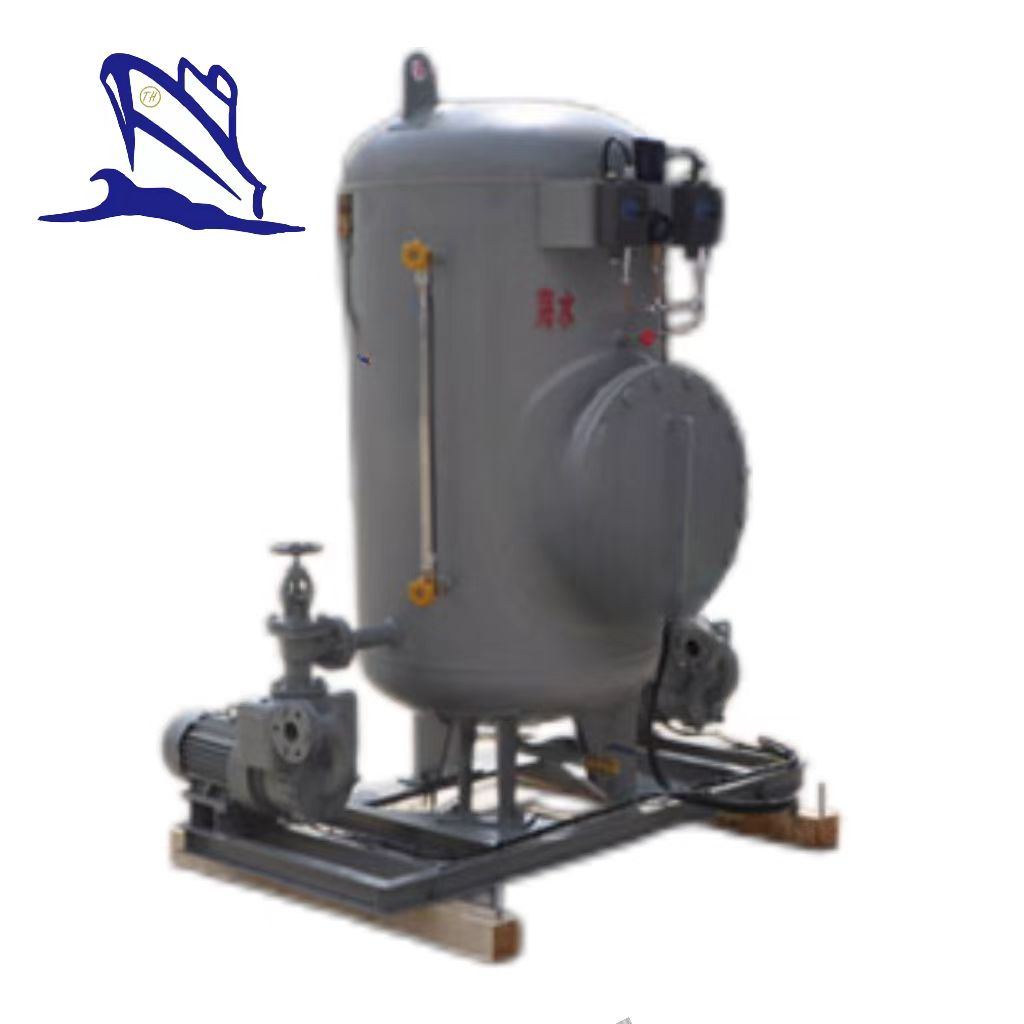

Fresh Water Hydrophore Unit
1. Hydrophore unit description:
The fresh water hydrophore unit used for vessel washing. There with double high quality strong pressre pumps (one for stand-by), pressure gauge, pressure gauge valve, safety valve, pressure switch, etc.
2. Main technical parameters:
1). Volume: 0.12-3.0m3
2). Working pressure: 0.4Mpa-0.6MPa
3). Design pressure:0.4Mpa- 0.7MPa
4). Strength test pressure: 1.05MPa
5). Air tightness test pressure: 0.875MPa
6). Open pressure of safety valve: 0.63MPa
Model | Volume(m3) | Design Pressure(Mpa) | Working Pressure(Mpa) | Water Pump Model | Motor Power(kw) | Capacity(m3/h) | Pressure(Mpa) |
ZYG-0.12 | 0.12 | 0.4~0.7 | 0.4~0.6 | 1.5CWX-2 (optional) | 2.2 (optional) | 3 | 0.4 |
ZYG-0.3 | 0.3 | ||||||
ZYG-0.5 | 0.5 | ||||||
ZYG-1.0 | 1.0 | ||||||
ZYG-1.5 | 1.5 | ||||||
ZYG-2.0 | 2.0 | ||||||
ZYG-3.0 | 3.0 |
