ZYG-1.0 Hydrophore
1. Technical Specification:
* Design pressure: 0.6MPa
* working pressure: 0.5MPa
* working medium:fresh water
* volume:1.0m³
* structural testing: 0.9MPa
* dense experiment: 0.75MPa (There is no leakage)
* Inside and outside superficial stain removal, The internal surface coates non-toxic white drinking water tank primer and finish 2 degree; Outside surface paint Fuxin primer 2 degrees, coating blue enamel paint 2 degrees.
* The standard of the flange:ANSI B 16.5,RF#150;
* SS304 piping&fitting;
* IP44 min

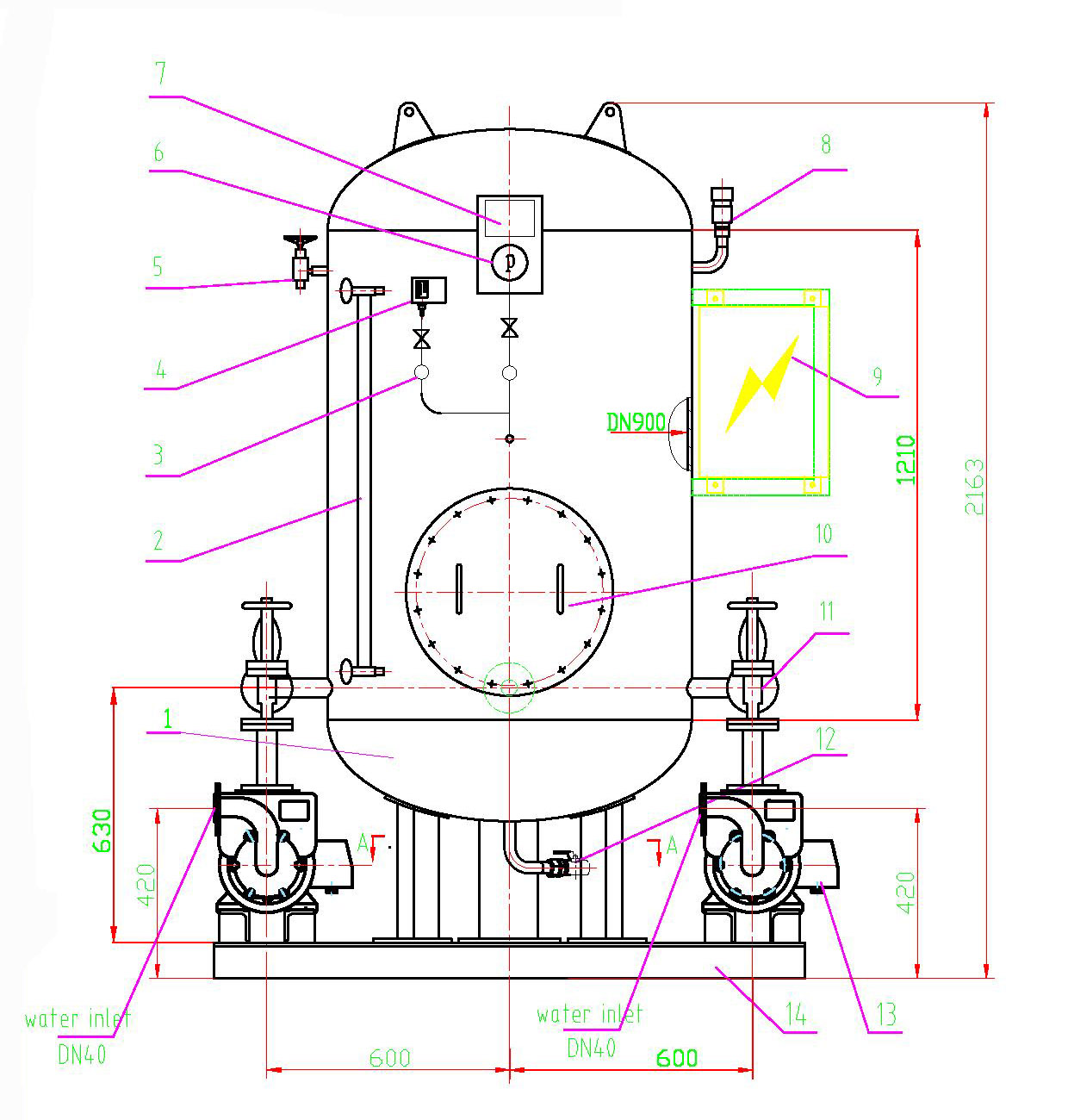

2. General Drawing:
No. | Model | Spares Description | Qty. (pc) | Remarks |
1 | Main body δ6 | 1 | Q235B | |
2 | ULG-940H/A | Liquidometer | 1 | Assembly |
3 | nstrument valve | 2 | Assembly | |
4 | KP35 | Pressure controller | 1 | Assembly |
5 | B40010 GB596 | Stop-check valve | 1 | copper |
6 | YC-100T | Pressure gauge | 1 | Assembly |
7 | Nameplate | 1 | stainless steel | |
8 | A21F-16P | Safety valve | 1 | Assembly |
9 | Electric control box | 1 | Assembly | |
10 | DN400 | Manhole cover | 1 | Assembly |
11 | B16040 GB591-93 | Stop-check valve | 2 | Assembly |
12 | DN20 | Ball valve | 1 | stainless steel |
13 | 1.5CWX-3G | Water pump | 2 | cast iron |
14 | Base | 1 | Q235A |
