Marine Embarkation Rope Ladder
Marine Embarkation Rope Ladder
Features:
1. Application: used for crew and passengers to embark lifeboats & life raft when wrecking. Also used for crews to embark when anchoring
2. Light weight, safe and reliable
3. Designed and made accord with ISO5489-2008 and SOLAS Regulation.

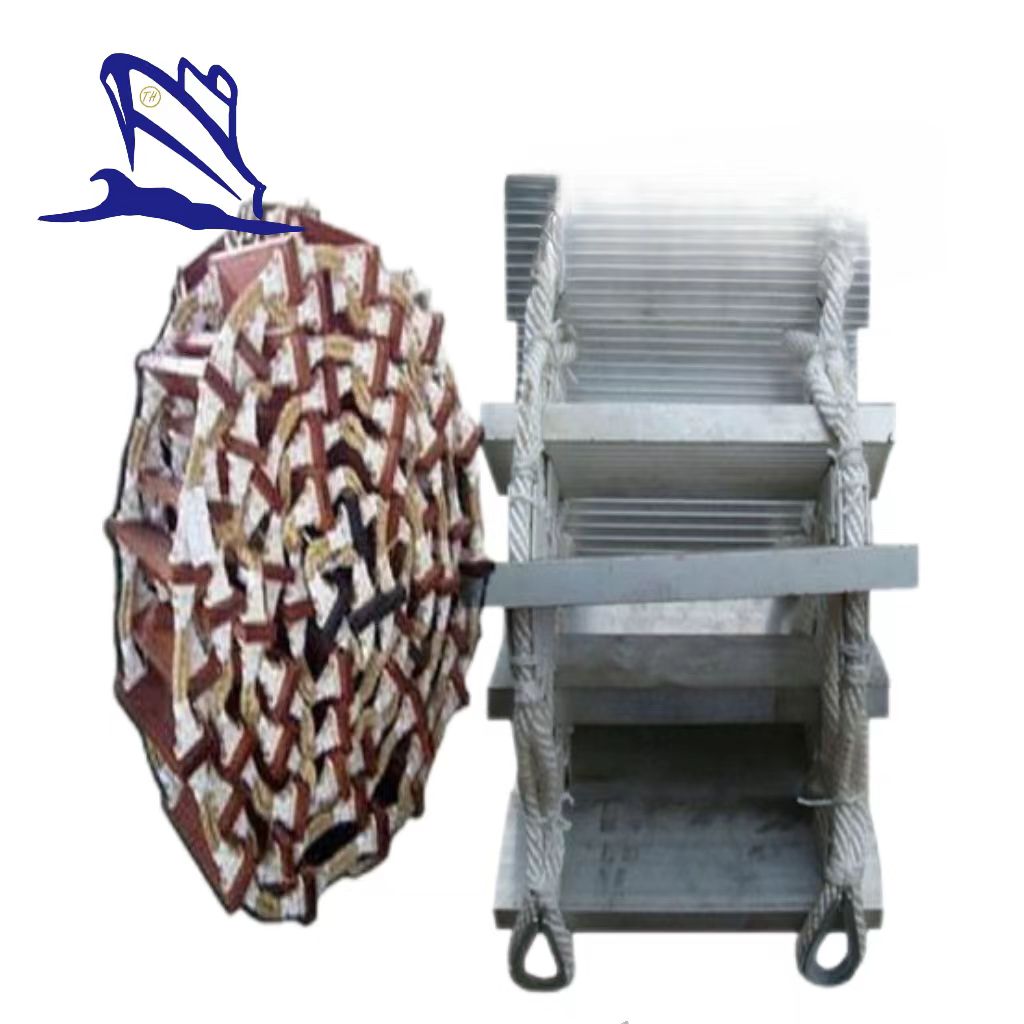

4. Two types: aluminum embarkation rope ladder & wooden embarkation rope ladder
5. The max. length ＞60m.
6. Various kinds of Classification Society Certificates can be supplied

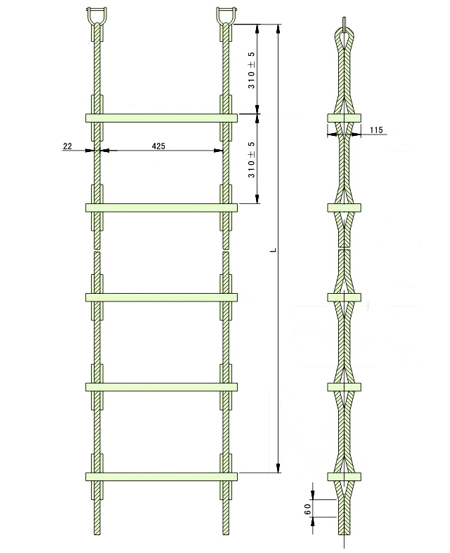

Drawing of Aluminum Embarkation Rope Ladder (Type A)
Type | Number of steps n | Length of rope ladder L (mm) | Weight (kg) |
A | 10 | 3100 | 25.86 |
15 | 4650 | 33.47 | |
20 | 6200 | 41.08 | |
25 | 7750 | 48.69 | |
30 | 9300 | 56.30 | |
35 | 10850 | 63.91 | |
40 | 12400 | 71.52 | |
45 | 13950 | 79.13 | |
50 | 15500 | 86.74 | |
55 | 17000 | 94.35 | |
60 | 18500 | 101.96 | |
n+5 | L+1500 | +7.61 |

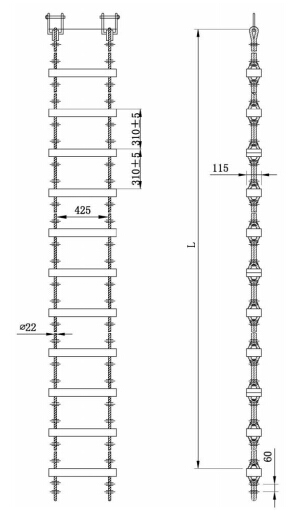

Drawing of Wooden Embarkation Rope Ladder (Type B)
Type | Number of steps n | Length of rope ladder L (mm) | Weight (kg) |
B | 10 | 3100 | 31.56 |
15 | 4650 | 43.92 | |
20 | 6200 | 56.27 | |
25 | 7750 | 68.64 | |
30 | 9300 | 81.00 | |
35 | 10850 | 93.36 | |
40 | 12400 | 105.72 | |
45 | 13950 | 118.08 | |
50 | 15500 | 130.44 | |
55 | 17000 | 142.86 | |
60 | 18500 | 155.16 | |
n+5 | L+1500 | +12.36 |
