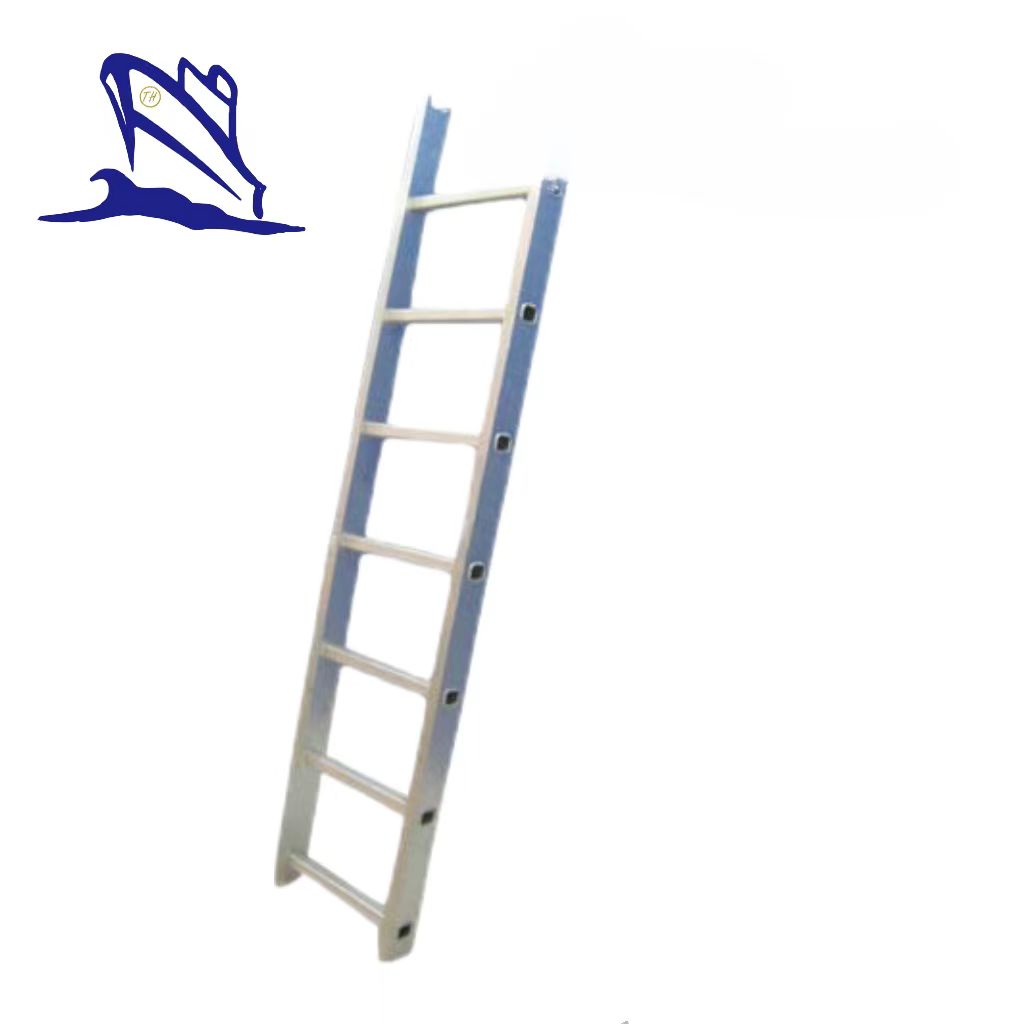

Marine Aluminum Pipe Vertical Ladder
Marine Aluminum Pipe Vertical Ladder
This product is a ship pipe vertical ladder made with aluminum. It is used for the crews to go up and down. It is approved by the CB/T670-94 standard and we can offer relevant certificates about this boat ladder like BV, CCS, ABS, GL, LR, etc. Our company can supply various sizes accord with international standard. To meet clients’ special requirements, we also offer OEM service.
Features:
1. Standard: CB/T670-94
2. Number of steps: 2-12
3. Deck height: 800-4000
4. Customized color
5. Light weight, safety and reliable structure

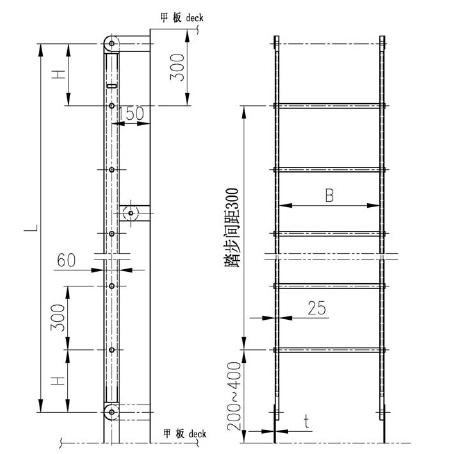

Drawing of Marine Aluminum Pipe Vertical Ladder
Number of steps | Deck height | L | H | t | Weight(kg) | |
B=325 | B=400 | |||||
2 | 800-1000 | 600 | 150 | 6 | 3.65 | 3.73 |
3 | 1150-1300 | 1000 | 200 | 6 | 4.71 | 4.83 |
4 | 1400-1600 | 1200 | 150 | 6 | 5.34 | 5.5 |
5 | 1750-1900 | 1600 | 200 | 6 | 6.4 | 6.6 |
6 | 2000-2200 | 1800 | 150 | 6 | 7.03 | 7.27 |
7 | 2350-2500 | 2200 | 200 | 8 | 8.43 | 8.71 |
8 | 2600-2800 | 2400 | 150 | 8 | 9.06 | 9.38 |
9 | 2950-3100 | 2800 | 200 | 8 | 10.48 | 10.84 |
10 | 3200-3400 | 3000 | 150 | 8 | 11.11 | 11.51 |
11 | 3550-3700 | 3400 | 200 | 8 | 12.17 | 12.61 |
12 | 3800-4000 | 3600 | 150 | 8 | 12.8 | 13.28 |
