MARINE LADDER

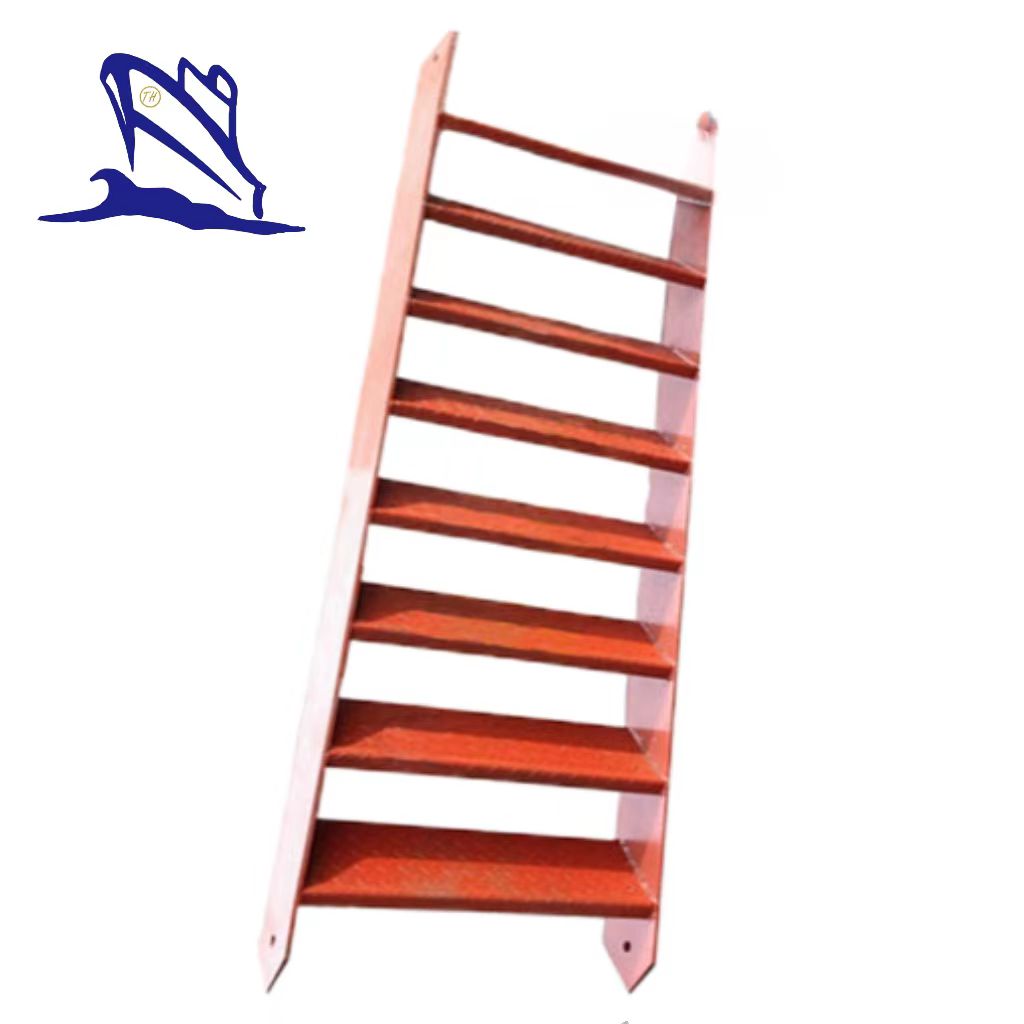

Marine Steel Inclined Ladder

This marine ladder is inclined and made of steel. It can be used for the weather deck, engine room, cargo hold, and accommodation cabin on various vessels. We can supply two models of this marine inclined ladder: model A-with angle bar frame, model B-with bulb plate frame. This steel inclined ladder is approved by the GB4444-84 standard. Certificates like CCS, DNV, BV, LR, KR, NK, etc can be offered according to customer’s requirements.

Features:

1. Application: used for the weather deck, engine room, cargo hold and accommodation cabin of various vessels

2. Standard: GB4444-84

3. Certificate: CCS, ABS, KR, NK, DNV, LR, RINA, etc.

4. Note: The diagram shows the structure of type A inclined ladder, and the type B is similar to the type A while changing the ladder frame from angle bars to bulb plates

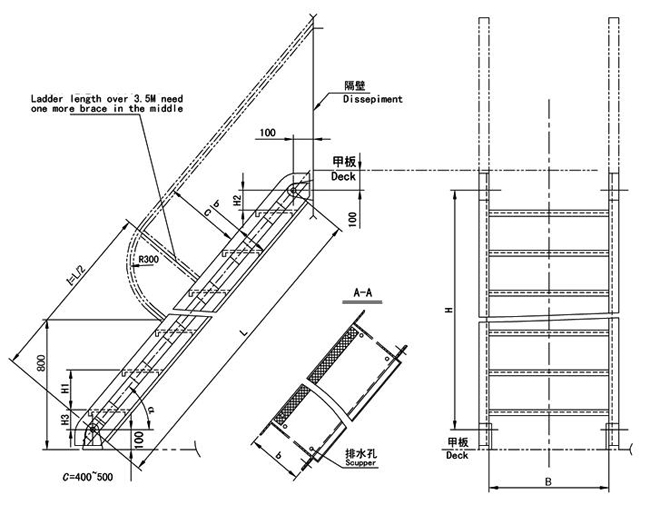

Drawing of Marine Steel Inclined Ladder

Type	Inclination (a)	B (mm)	H (mm)	L (mm)
A & B	45°	700, 800	400-3500	283-4667
	50° , 55°, 60°	500, 600	400-3400	261-3916
		700, 800	400-4400	261-4961
	65°, 70°	400, 500, 600	500-3500	331-3641
