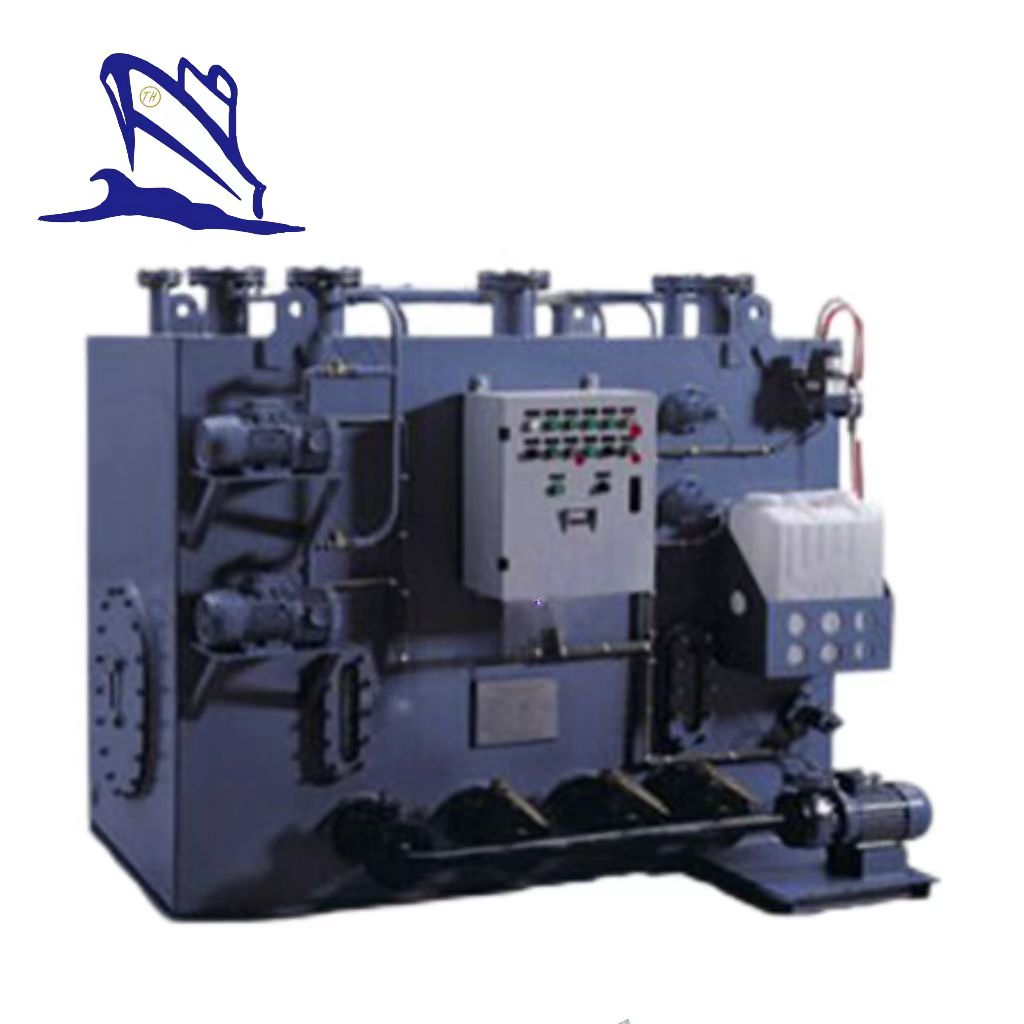

Marine Wastewater Processor
Marine Wastewater Processor
1.Under gravity,the water flow to the equipment,dispose of most of the organic substance in the dirty water in the first,then flow the second oxygen box,then flow to the sediment tank and disposeof the dirty mud,then flow to sterilizer,then flow out through discharging pump.
2.The treated water from equipment is complying with the standard of regulation IMO MEPC.159(55).
3.The serial of products has been passed the test of type approval CCS, EC. And approved by CCS, EC, BV, GL classification.
Performance parameters:
Model | SWCM- | ||||||||||||||||
10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | 250 | 300 | 400 | ||
LOAD | Average load （L/d） | 840 | 1190 | 1540 | 1890 | 2310 | 3080 | 3780 | 4480 | 6020 | 7700 | 9100 | 11200 | 14700 | 18200 | 23100 | 30800 |
Peak load （L/h） | 105 | 149 | 193 | 237 | 289 | 385 | 473 | 560 | 753 | 963 | 1138 | 1400 | 1838 | 2275 | 2888 | 3850 | |
Organic load (kgBOD5/d） | 0.42 | 0.595 | 0.77 | 0.945 | 1.155 | 1.54 | 1.89 | 2.24 | 3.01 | 3.85 | 4.55 | 5. 6 | 7.35 | 9.10 | 11.55 | 15.4 | |
Rated capacity （men） | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | 250 | 300 | 400 | |
Max capacity（men） | 12 | 17 | 22 | 27 | 33 | 44 | 54 | 64 | 86 | 110 | 130 | 160 | 210 | 260 | 330 | 440 | |
Electricity | AC 380V/50Hz/3φ, AC 415V/50Hz/3φ, AC 440/60Hz/3φ (optional) | ||||||||||||||||
Power （kW） | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.5 | 4.0 | 4.0 | 4.0 | 6.0 | 6.0 | 7.0 | 9.0 | 11 | |
External dimension （mm） L×W×H | 1510 × 1200 × 1300 | 1870 × 1200 × 1400 | 1745 × 1400 × 1525 | 1935 × 1400 × 1560 | 1985 × 1500 × 1650 | 2400 × 1600 × 1700 | 2410 × 1700 × 1850 | 2670 × 1700 × 1850 | 2780 × 1900 × 2050 | 2795 × 2000 × 2200 | 3000 × 2000 × 2200 | 3050 × 2200 × 2300 | 3600 × 2200 × 2350 | 3880 × 2400 × 2570 | 4750 × 2400 × 2570 | 5950 × 2400 × 2570 | |
weight | Dry weight（kg） | 900 | 1000 | 1000 | 1100 | 1200 | 1300 | 1450 | 1600 | 1850 | 2200 | 2300 | 2800 | 3000 | 3300 | 3700 | 4200 |
Wet weight（kg） | 1775 | 2283 | 2640 | 2740 | 3500 | 4400 | 5073 | 5270 | 6517 | 8268 | 9166 | 11340 | 13267 | 16538 | 20357 | 25417 | |
Effluent standard | BOD5≯25mg/L, COD≯125mg/L, TSS≯35mg/L, Coliform≯100/100ml, PH6～8.5, CL2≯0.5mg/L | ||||||||||||||||
